21
N
S VIDEO AUDIO VIDEO L R DIGITAL
VIDEO 5 INPUT
R
L

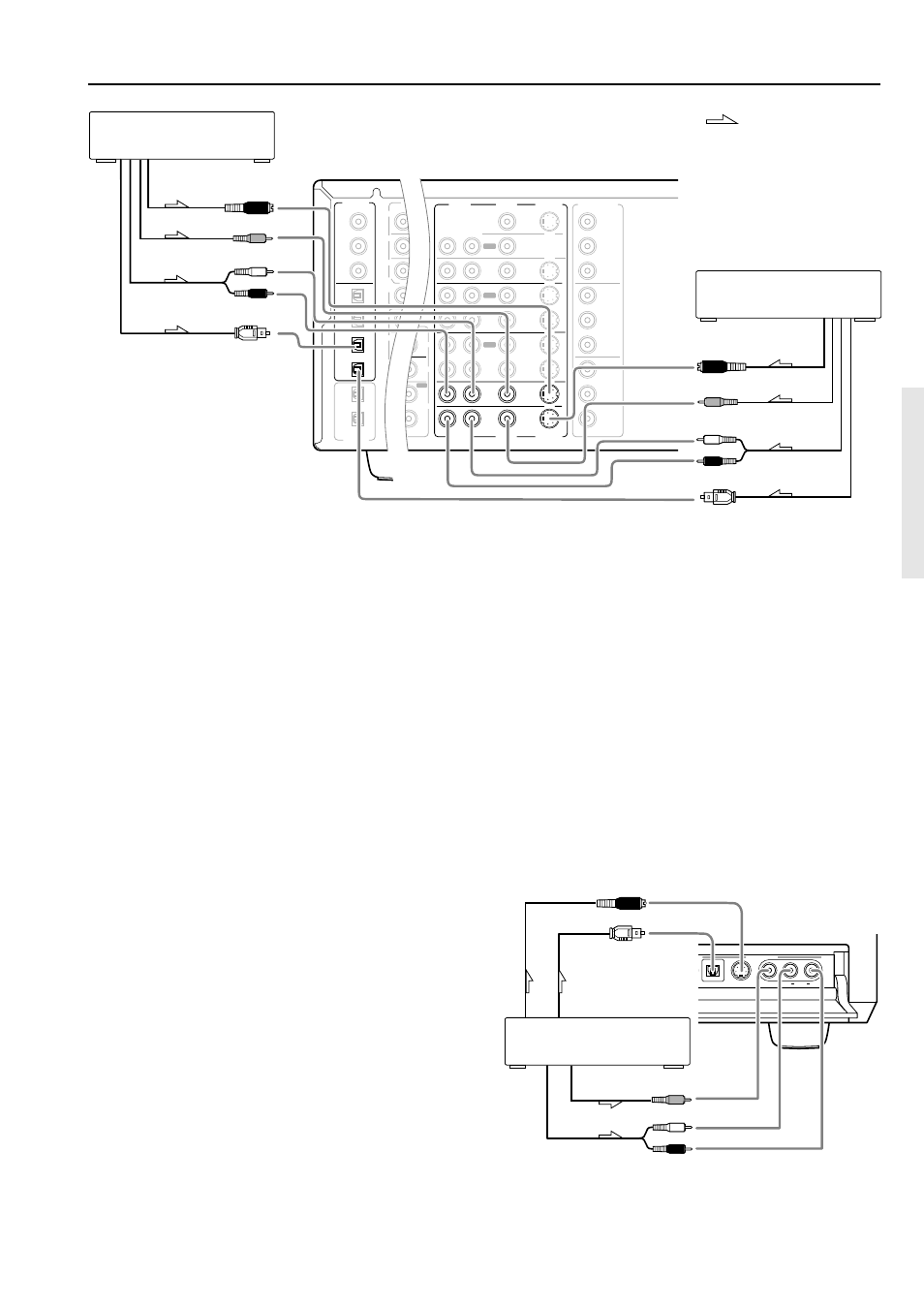

Connecting to Audio/Video equipment
S Video output
Digital output
(optical)
10. Video camera/ Video game
(VIDEO 5 INPUT)
Video output
Analog output
8, 9. Connecting a satellite tuner, television, or settop box
(VIDEO 3 or 4)
Using an RCA video cable, connect the video output jack
(composite) of the device to the VIDEO 3 (or 4) VIDEO IN jack of
the TX-NR900/900E. Or if the device has an S video output jack,
connect it to the VIDEO 3 (or 4) S VIDEO IN jack of the TX-
NR900/900E using an S video cable. Or if the device has component
video outputs, connect them to one of the banks of COMPONENT
VIDEO INPUT jacks on the TX-NR900/900E.
With the initial settings of the TX-NR900/900E, the VIDEO 3
and 4 input sources are set for the COMPONENT VIDEO
INPUT 2 jacks.
If you connect the device to the COMPONENT VIDEO INPUT 1
jacks, this must be changed at Setup Menu
→ Input Setup → Video
Setup
→ Component Video (see page 53).
Using an RCA audio cable, connect the audio output jack of the
device to the VIDEO 3 (or 4) AUDIO IN jacks of the TX-NR900/
900E. Make sure that you properly connect the left channel to the L
jack and the right channel to the R jack.
If the device has a digital output, connect it to either the DIGITAL
INPUT COAX jack or DIGITAL INPUT OPT jack of the TX-
NR900/900E depending on the type of connector on the device.
With the initial settings of the TX-NR900/900E, the VIDEO 3 input
source is set for digital input at the OPT 3 jack, and the VIDEO 4
input source is set for digital input at the OPT 4 jack.
If the digital connection is made at a different jack, this must be changed
at Setup Menu
→ Input Setup → Digital Setup (see page 51).
PRE
FRONT
SUB
SURR
R
GND
SURR
BACK/
ZONE 2
R
FRONT
SUB
SURR
SURR
BACK
R
R
DIGITAL
INPUT
DIGITAL
OUTPUT
OPT
OPT
2
1
2
3
4
1
2
1
3
COAX
AUDIO VIDEO S VIDEO
MONITOR
OUT
IN
IN
IN
IN
IN
ZONE 2
DVD
VIDEO 1
VIDEO 2
VIDEO 3
VIDEO 4
AUDIO VIDEO S VIDEO
COMPONENT
VIDEO
Y
P B
P R
OUTPUT
INPUT 1
Y
P B
P R
INPUT 2
Y
P B
P R
R L
OUT
OUT
OUT PHONO
IO
L
CD
TAPE
L
IO
IN
OUT
AM
FM
75
R L
NNA
: Signal flow
8. Settop box, video camera
(VIDEO 3)
S Video output
Video output
Analog audio
output
Digital audio output (optical)
9. Satellite tuner or television
(VIDEO 4)
S Video output
Video output
Analog audio
output
Digital audio output
(optical)
10. Connecting video camera, etc. (VIDEO 5 INPUT)
Using an RCA video cable, connect the video output jack
(composite) of the device to the VIDEO 5 VIDEO jack of the TX-
NR900/900E. Or if the device has an S video output jack, connect it
to the VIDEO 5 S VIDEO jack of the TX-NR900/900E using an S
video cable.
Using an RCA audio cable, connect the audio output jack of the
device to the VIDEO 5 AUDIO jacks of the TX-NR900/900E. Make
sure that you properly connect the left channel to the L jack and the
right channel to the R jack.
If the device has an optical digital output, connect it to the VIDEO 5
DIGITAL jack of the TX-NR900/900E.
The VIDEO 5 digital input is fixed to the OPTICAL input on the
front panel.
R (red)
L (white)
R (red)
L (white)
Front panel
