20 Regency IG35 Gas Inbuilt Fireplace

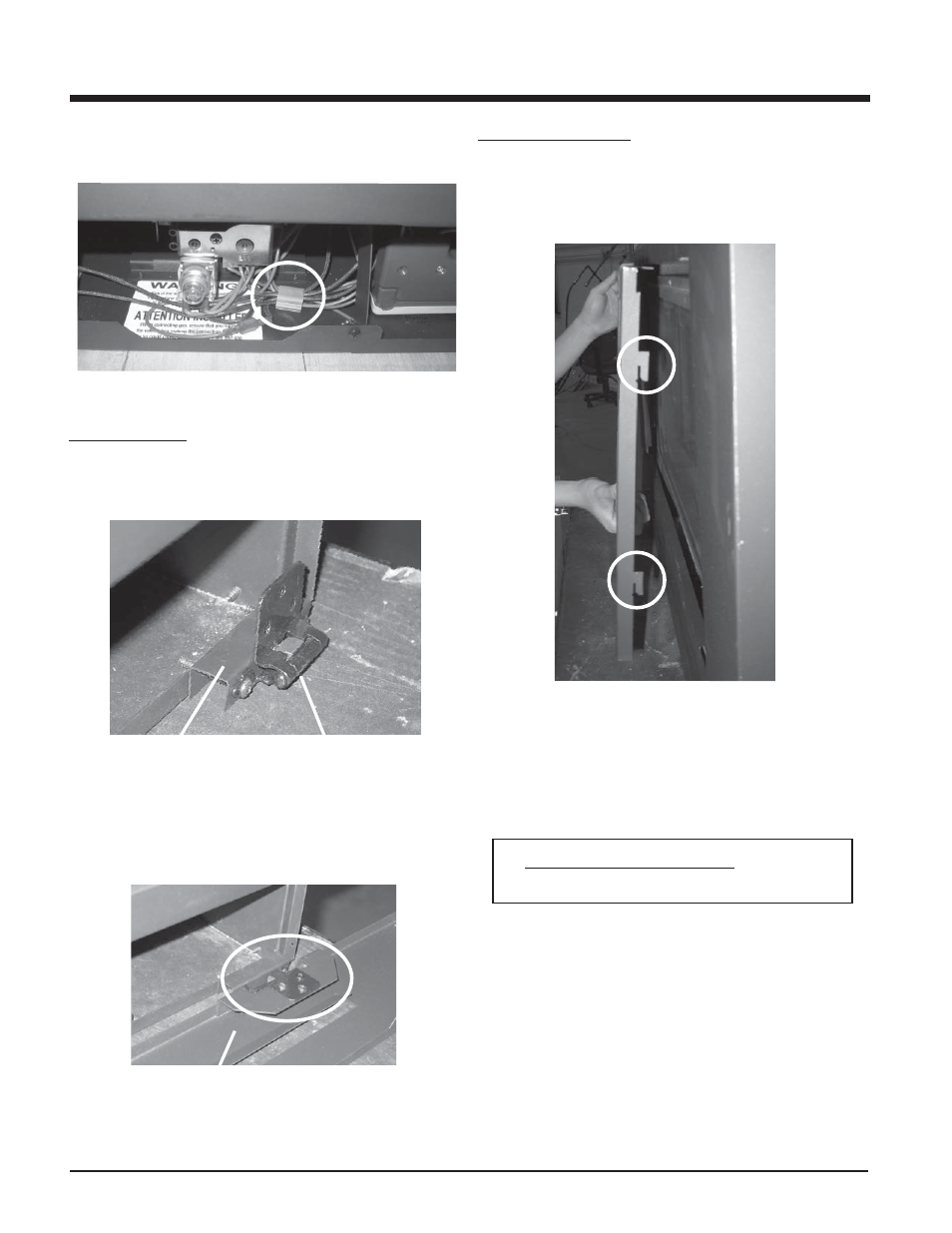

25) Secure all loose wires in the wire clip to the right side of the valve.
See diagram 23.
Diagram 23
26) Secure the hinge bracket and hinge to the outside of the fi rebox fl ange
on the left and right side as shown using 2 screws on each side. See
diagram 24.
27) Align the bottom louver hinge tab screw holes with hinge screw holes
and secure using 3 screws on each side. See diagram 25.
Hinge Bracket Hinge
Bottom Louver
Diagram 24
Diagram 25
Louver Installation:
28) Re-install the glass door.
29) Install the screen by placing the hooks (2 on each side) into the slots
on the inside of the faceplate. Once in place, push down on the screen
to secure. See diagram 26.
30) Close the bottom louver.
31) Plug in the power source.
Diagram 26
NOTE:
The fan should run at least on low speed to prevent the unit
from overheating which will cause automatic shutdown via the
thermodisc safety switch.
Screen Door Installation:
INSTALLATION
