Graphics contained within this publication are for representation only.

2

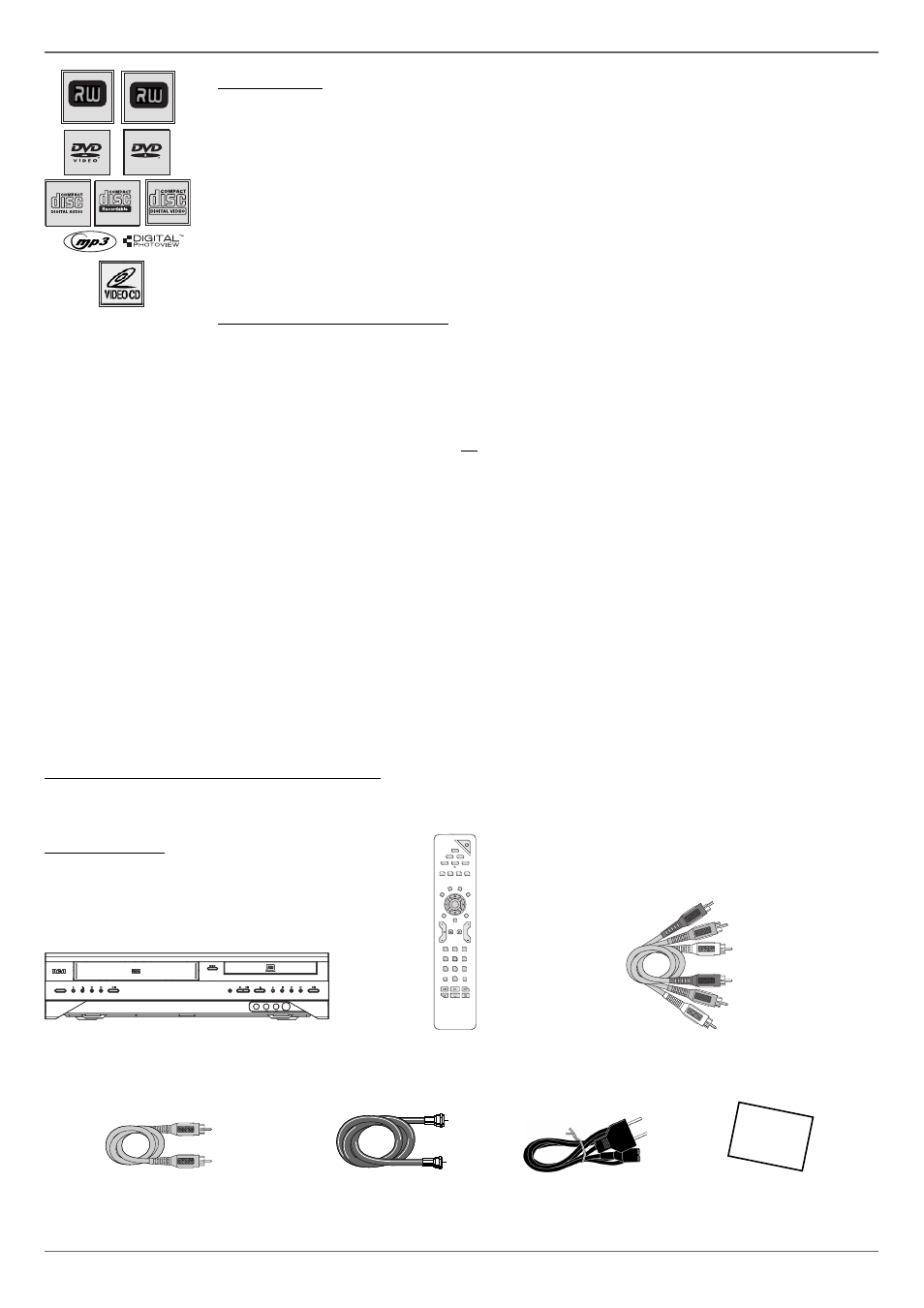

Chapter 1: Connections and Setup

Types of Discs

DISCS YOU CAN USE FOR RECORDING

DVD+R 2.4x, 4x, or 8x, and 16x ONLY;

DVD+RW 2.4x and 4x ONLY.

IMPORTANT NOTES:

This recorder is not compatible with DVD-R or DVD-RW discs for recording. Please make sure to purchase discs with
the plus “+” symbol on the package. Also, it is NOT possible to record on CD-R or CD-RW discs.

IMPORTANT: It is NOT possible to record content that is copy-protected. This is usually true for most pre-recorded
DVD discs and most pre-recorded VHS tapes.

TYPES OF DISCS YOU CAN PLAY

DVD discs – DVD movie discs (DVD-ROM); DVD+R; DVD+RW; DVD-RW (must be recorded using video mode or VM); DVD-R

(must be recorded using video mode or VM and must be fi nalized).

CDs (Audio CDs, CD-R, CD-RW) – Audio CDs contain musical or sound content only. mp3 discs are CDs (CD-R or CD-RW)

that contain mp3 fi les. This product also plays CDs that contain JPEG fi les and Multisession CDs.

Video CD (VCD) – Like DVD video discs, VCDs contain picture and sound content. The difference is the amount of information

that can be stored on the disc. VCDs typically have lower picture and sound quality than DVD discs. You must use DVD+R or
DVD+RW discs to record on your DVD/VCR not VCDs.

Things to consider before you connect

Protect components from overheating

• Don’t block ventilation holes on any of the components or the fan on the back of this product. Arrange the components so that air can circulate freely.

• Don’t stack components.

• When you place components in a stand, make sure you allow adequate ventilation.

• If you connect an audio receiver or amplifi er, place it on the top shelf.

Position cables properly to avoid audio interference

• Insert each cable fi rmly into the designated jack.

• If you place components above the TV, route all cables down the side of the back of the TV instead of straight down the middle of the back of the TV.

Connection Pictures

Audio/video cables are usually bundled together. For better visibility, the connection pictures in this book show each cable separately (audio left, audio right, and video).
Graphics contained within this publication are for representation only.

Some discs may not be compatible
due to laser pickup and disc design.

DVD+Rewritable

DVD+R

DVD/VCR

STANDBY/ON

STOP/EJECT

RECORD

STOP

FWD

REV

CH+/SKIP+

CH-/SKIP-

FWD

REV

PLAY/PAUSE

PLAY/PAUSE

OPEN/CLOSE

COPY

RECORD

INPUT

DVD / VCR / VIDEO CD / CD / MP3 PLAYER DIGITAL VIDEO DISC RECORDER DRC 8300

VIDEO

AUDIO

L

R

S-VIDEO

GO

BACK

VOL

CH

MUTE

TV

ON-OFF

DVD/VCR CABLE

AUX

AUDIO

CLEAR

MENU

OK

LIVE

RECORD

STOP

PLAY

INPUT

ANTENNA

PAUSE

FORWARD

REVERSE

7

1

2

3

4

5

6

8

0

9

ADVANCE

AGAIN

INFO

TIMER•GUIDE

SAT

ZOOM

EDIT

OPEN

CLOSE

ANGLE

Remote control and
batteries (part number
261387)

1 set of audio video cables (part number 233086)

S-Video cable (part number 257982)

(supplied with model DRC8312 only)

RF Coaxial cable (part
number 221396)

Power cord (part number 218104)

Unpack the Box

Your DVD/VCR came with the following items:

DVD+RW

Blank Disc

1 DVD+RW Blank Disc
