Graphics contained within this publication are for representation only. 8

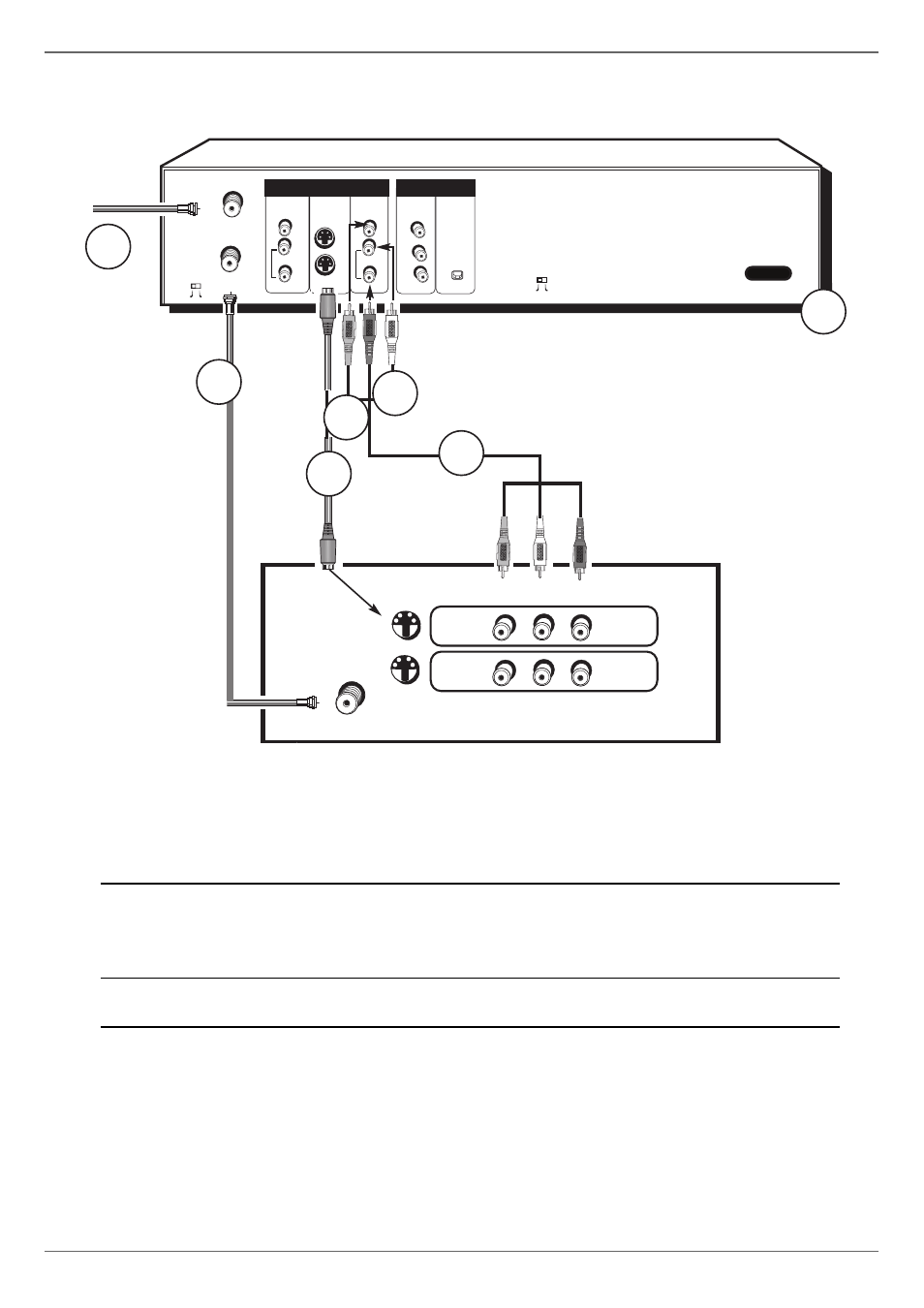

Chapter 1: Connections and Setup
OPTICAL
Y
Pb
ON OFF
VIDEO
INPUT
OUTPUT
L
R
PROG.
SCAN
AUDIO
VIDEO
OUTPUT
L
R
AUDIO
OUT
IN
Pr
COMPONENT
VIDEO OUTPUT DIGITAL
AUDIO OUT S-VIDEO
CABLE/ANTENNA
INPUT
CABLE/ANTENNA
CH4 CH3
DVD/VCR DVD Playback Only
AC-IN
VIDEO L R
INPUT1
INPUT2
S-VIDEO
CABLE/ANTENNA
S-VIDEO
3c 3c
3a 3a
3b 3b
4 4
3 3
2 2
1 1
In from cable
or antenna
DVD/VCR
TV
The back of your TV might look
different than the one pictured here.
To watch one program while you
record another: Tune the TV to its Input 1 channel or Vid 1 channel
Tune the DVD/VCR to the channel you want to record, and press RECORD.
Use the buttons on the TV (or the TV’s remote control*) to tune the TV to the channel you want to
watch. For example, change the channel on the TV to channel 8 to watch a program on channel 8.
To play a disc or tape: Tune the TV to its Input 1 channel or Vid 1 channel.
If you need help fi nding your TV’s various Video Input Channels, go to page 19.
* The remote control packed with your DVD/VCR is capable of being programmed to operate many brands and models of TVs and VCRs. For
instructions, go to page 22. If the remote operates your TV, press TV and INPUT to access the Video Input Channel.
Details about the different kinds of cables used to connect your DVD/VCR are on page 4.
DVD/VCR + TV
