Graphics contained within this publication are for representation only. 12
Chapter 1: Connections and Setup
AUDIO OUT
L
R
VIDEO PHONE JACK
DIGITAL OUT
LOW SPEED
DATA OUT TO TV IN FROM ANT SATELLITE IN S-VIDE O
OPTICAL
Y
Pb
ON OFF
VIDEO
INPUT
OUTPUT
L
R
PROG.
SCAN
AUDIO
VIDEO
OUTPUT
L
R
AUDIO
OUT
IN
Pr
COMPONENT
VIDEO OUTPUT DIGITAL
AUDIO OUT S-VIDEO
CABLE/ANTENNA
INPUT
CABLE/ANTENNA
CH4 CH3
DVD/VCR DVD Playback Only
AC-IN
VIDEO L R
INPUT1
INPUT2
S-VIDEO
CABLE/ANTENNA
3b 3b
2a 2a
2c
2b 2b
3a 3a
3c 3c
2c
2d
4 4
1 1
The back of your
satellite receiver might
look different than the
one pictured here.
SATELLITE
DISH
ANTENNA
DVD/VCR
TV
The back of your TV might look
different than the one pictured here.
Details about the different kinds of cables used to connect your DVD/VCR are on page 4.

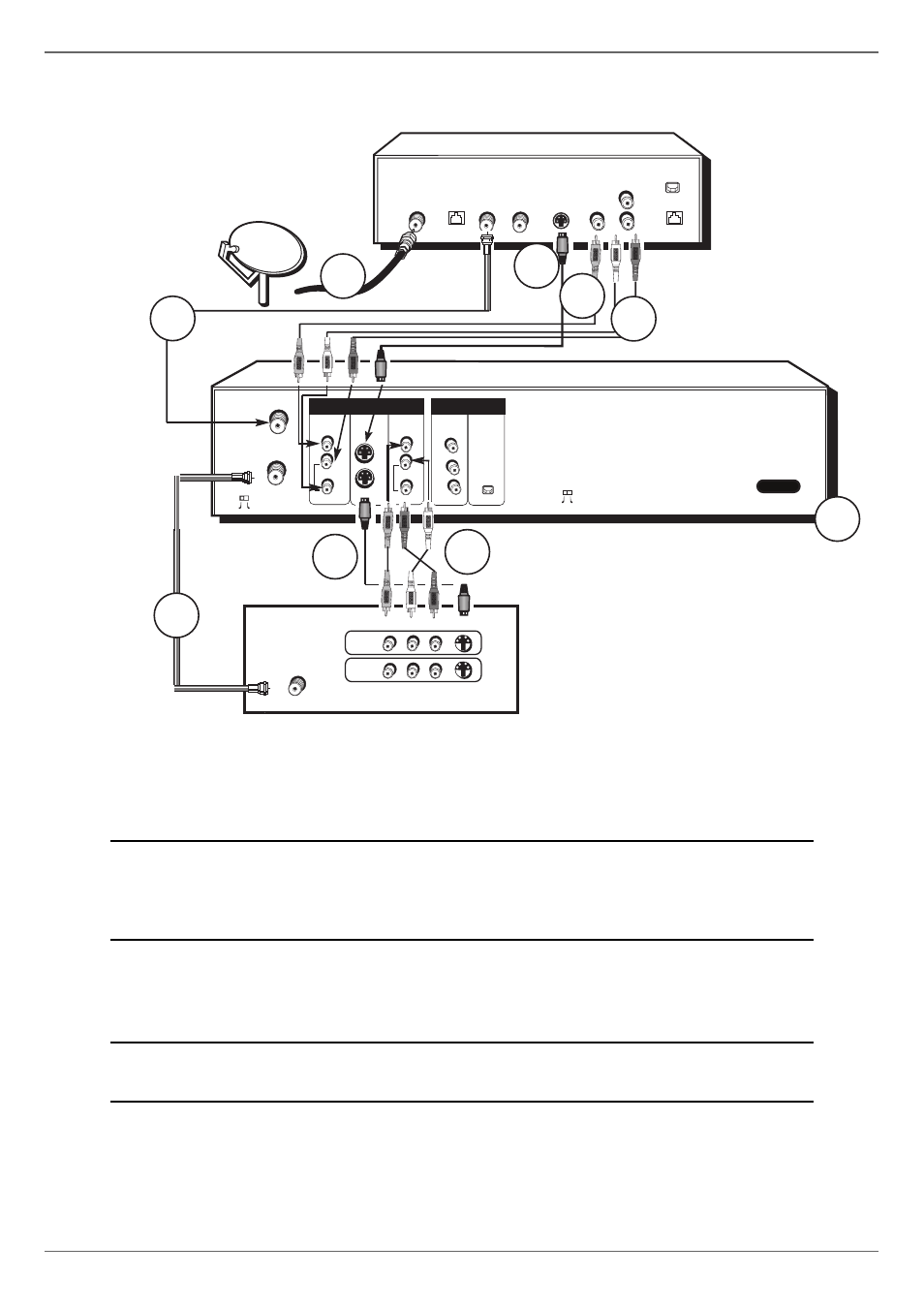

DVD/VCR + TV+ Satellite Receiver
To watch TV (satellite
programming) with the DVD
Recorder turned on: Tune the TV to its Input 1 channel or Vid 1 channel.
Tune the DVD/VCR to the INPUT 1 channel (press the INPUT button on the remote).
Tune the satellite receiver to the channel you want to watch.
Tune the TV to its Input 1 channel or Vid 1 channel.
To watch TV (satellite
programming) with the
DVD/VCR turned off: Tune the TV to its CABLE/ANTENNA INPUT channel (usually channel 2, 3, or 4).
Tune the satellite receiver to the channel you want to watch.
To play a disc or tape:
To play a disc while recording to
tape: Tune the TV to its Input 1 channel or Vid 1 channel.
Tune the DVD/VCR to the INPUT 1 channel (press the INPUT button on the remote).
Tune the satellite receiver to the channel you want to record. Press the VCR RECORD button on the
front of the DVD/VCR.
Put the DVD disc into the disc tray, and press MENU. Select DISC from the Main Menu and press PLAY on
the remote control.
Important
You can’t watch one satellite
program and record another
satellite program at the same
time.
