Appendix A. Connector and Cable Pinouts
RuggedCom® RuggedMAX WiN7000
29
Installation Guide Rev1
Appendix A. Connector and Cable Pinouts
A.1. Power and Ethernet Cable Pinouts
The pinout of the power cable is shown below:

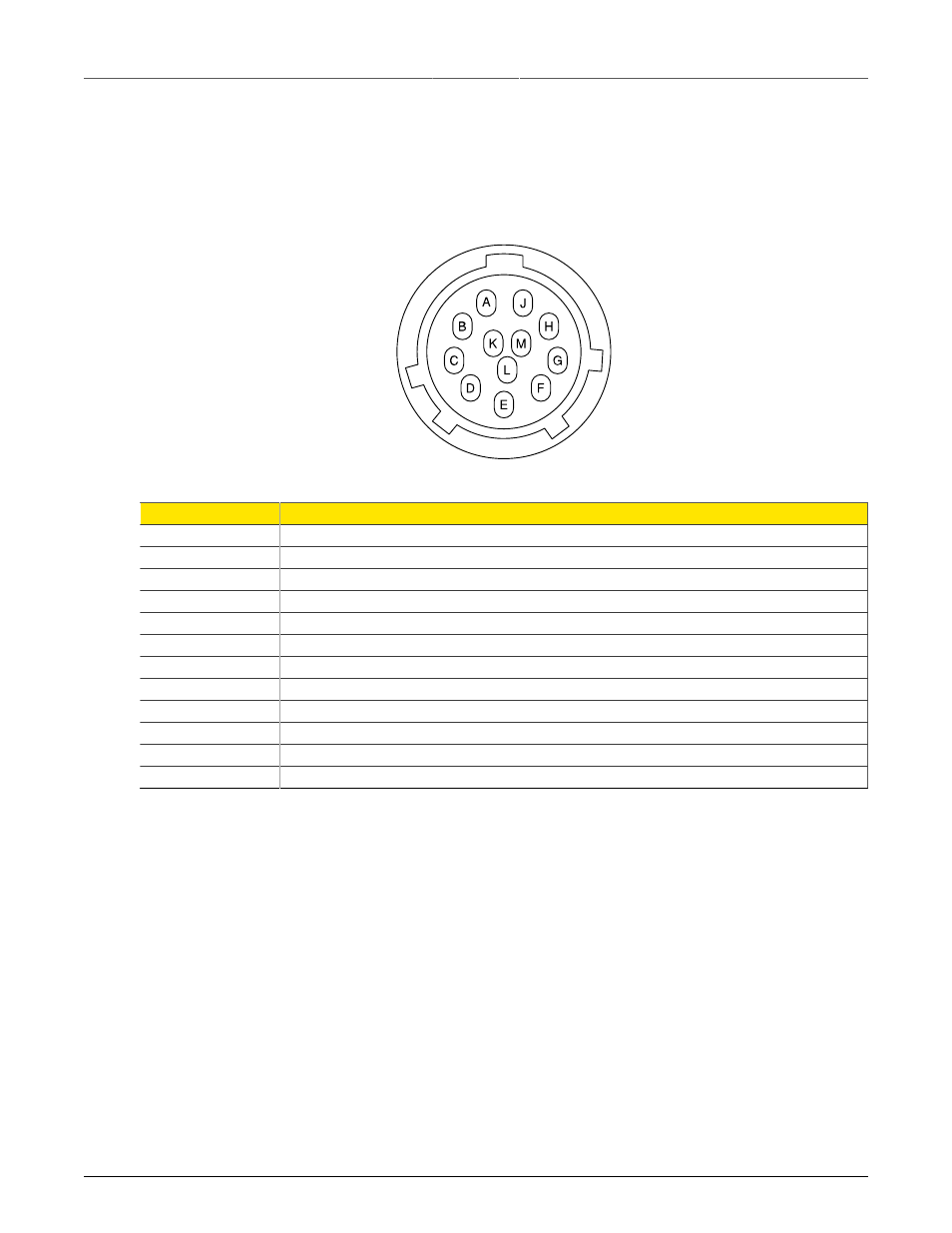

Figure A.1. WiN7000 Power Cable Pinout
Pin Number
Type
A
NC
B
NC
C
+TX Ethernet
D
- TX Ethernet
E
+RX Ethernet
F
- RX Ethernet
G
NC
H
NC
J
NC
K
48VDC (RTN)
L
48VDC (+)
M
Ethernet GND
Table A.1. WiN7000 Power Cable Pinout
