3. Installation Procedures

RuggedCom® RuggedMAX WiN7000

Installation Guide Rev1

3.6. Power Connections

3.6.1. Copper and SFA Type Base Station

The power system can be supplied by RuggedCom (WiNPS) or by the operator.

Connect the power system DC + ETH output to the WiN cable proprietary connector (supplied
by RuggedCom).

Connect the other side of the WiN cable connector to the WiN7000 DC + ETH connector.

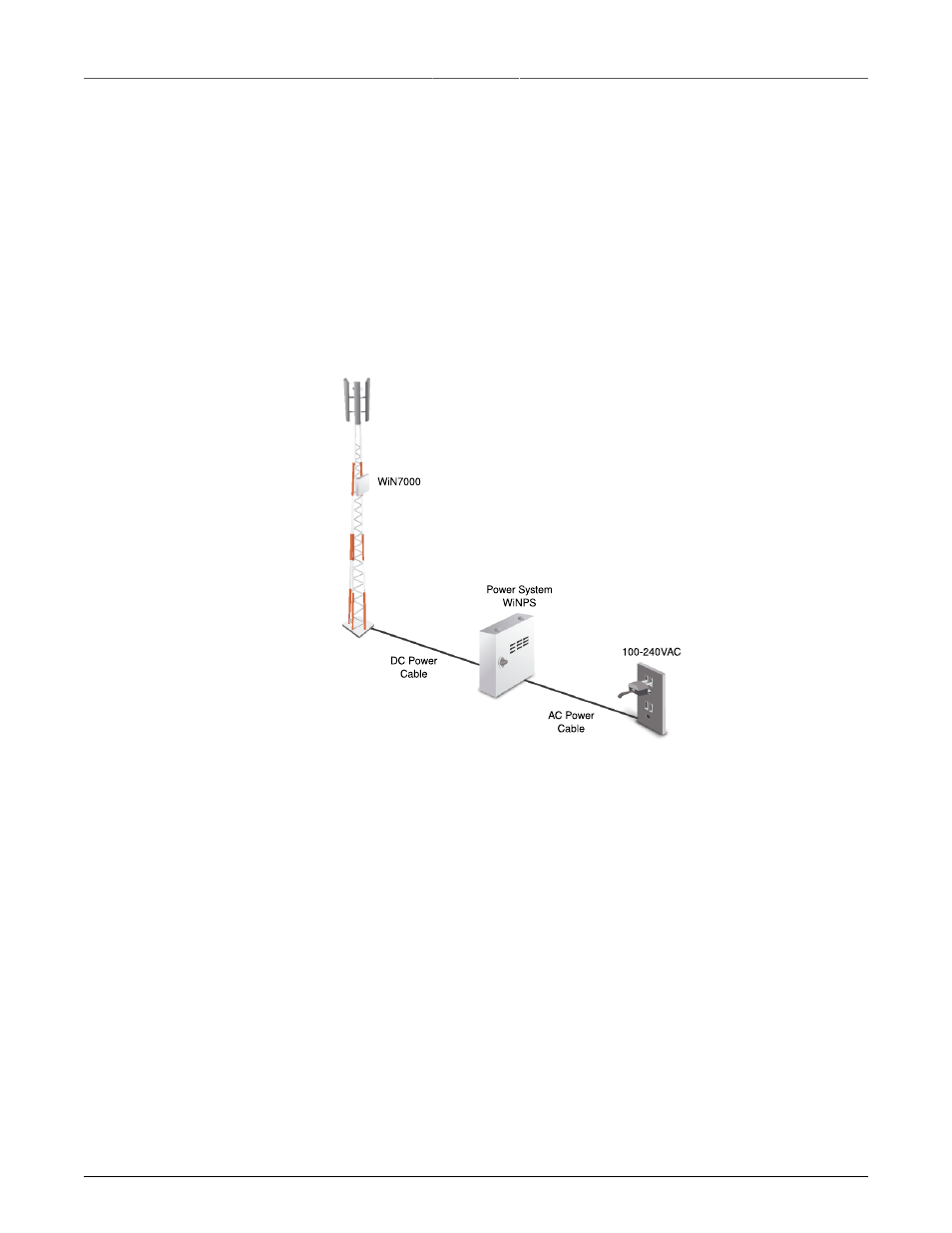

The illustration below shows the physical connection between the WiN7000 base station, the
power system and the AC power source.

Figure 3.10. Base Station Power Connection
