3. Installation Procedures
RuggedCom® RuggedMAX WiN7000
18
Installation Guide Rev1
3.4.2. Pole Mounting

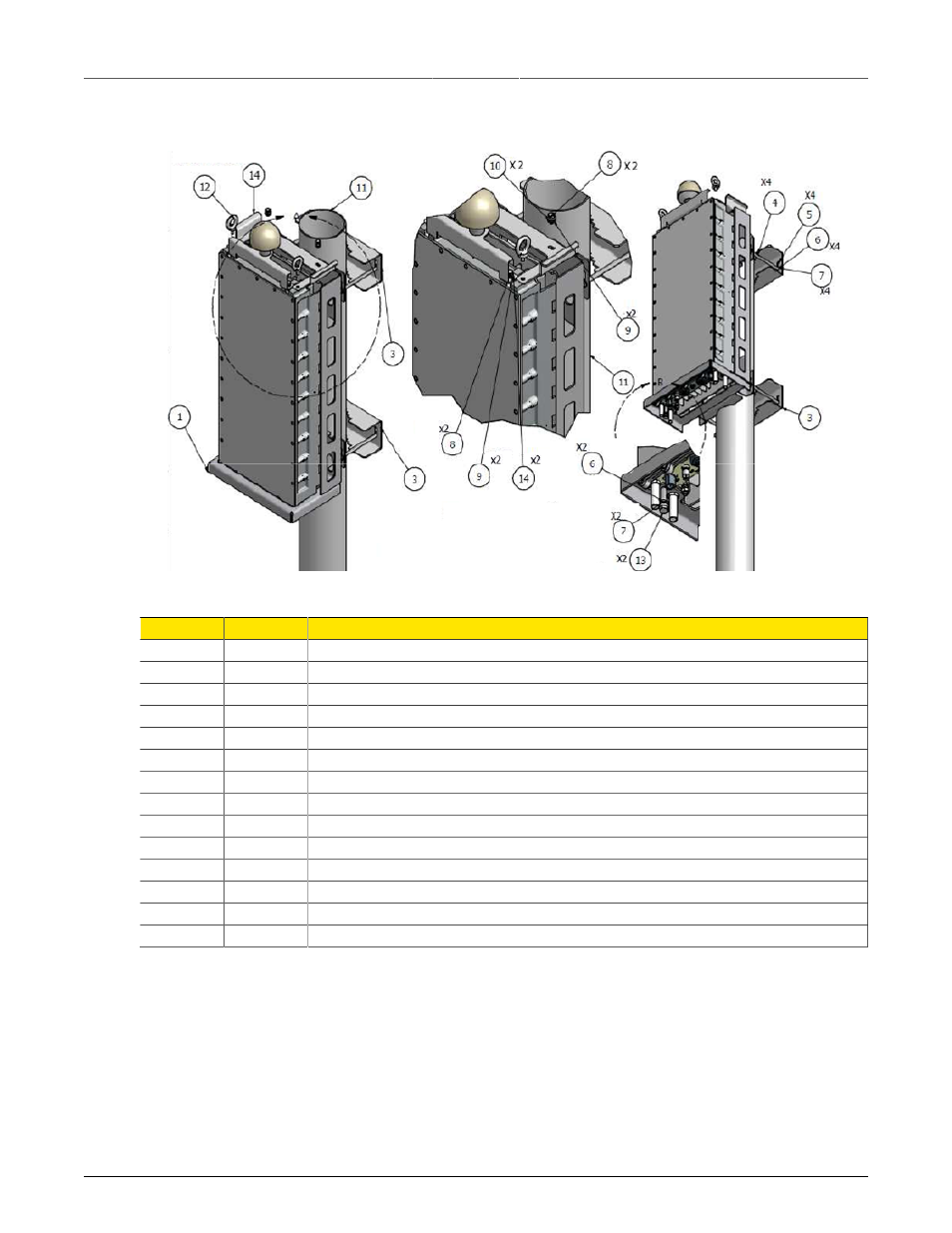

Figure 3.2. WiN7000 Pole Mounting Diagram
Item
Quantity
Description
1
1
Mounting brackets
2
1
WiN7000 Base Station
3
2
Fastening brackets
4
4
Screw 5/16" hex cap × 6"
5
8
Nut NF 16 hex
6
10
Washer flat 5/16"
7
10
Washer spring 5/16"
8
4
Screw NC 1/4" × 1/2" hex
9
4
Washer flat NC 1/4"
10
4
Washer spring NC 1/4"
11
1
Pole
12
2
Bolt NC 1/4"
13
2
Screw NC 5/16" × 1/2"
14
1
Mounting Upper Bracket
Table 3.1. WiN7000 Pole Mount Parts List
Procedure 3.1. Installing the WiN7000 on a Pole
1.
Select a mounting location on the pole.
2.
Assemble the fastening brackets to the mounting bracket using the 5/16" × 6" hex cap screws
(Item 4), NF 16 hex nuts (Item 5), 5/16" flat washers (Item 6), and 5/16" spring washers (Item
7).
