3. Installation Procedures
RuggedCom® RuggedMAX WiN7000
25
Installation Guide Rev1
3.6.2. SFD Type Base Station
The power system is supplied by the operator.
Connect the power system DC output to the RuggedCom cable with proprietary connector
(supplied by RuggedCom).
Connect the other side (open end) of the RuggedCom cable to the operator’s power system
(according to the labelling on the cable and the tables below.
RuggedCom Cable
Power Supply
Note
-48VDC
-48VDC
GND
+48VDC
+48VDC/ GND
“HOT Line”
GND
-48VDC/ GND
Connect -48V and GND
Table 3.4. +48 VDC Power System
RuggedCom Cable
Power Supply
Note
-48VDC
-48VDC
“HOT Line”
+48VDC
+48VDC/ GND
GND
GND
+48VDC/ GND
Connect +48V and GND
Table 3.5. -48 VDC Power System

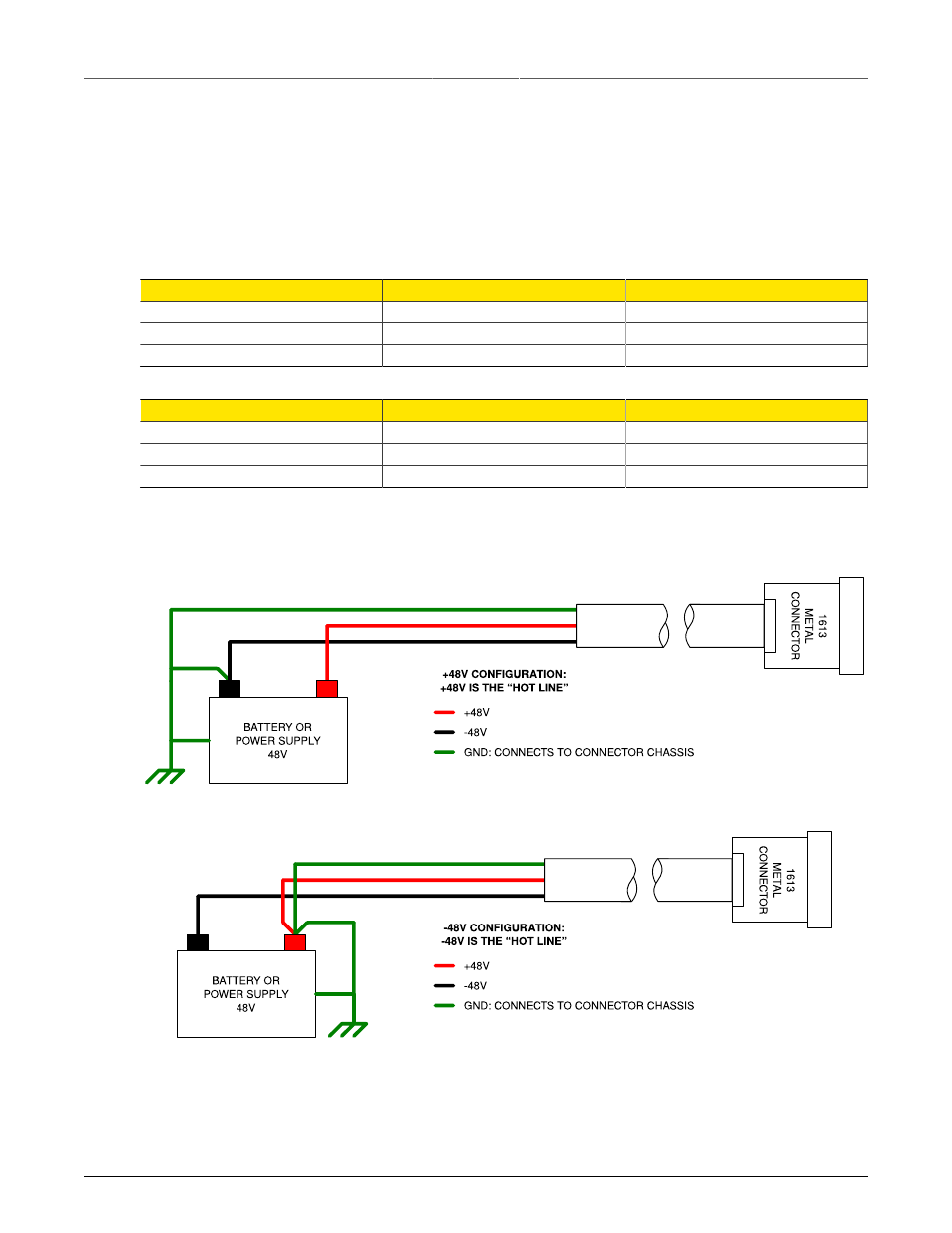

Figure 3.11, “Positive 48V Configuration”
and
Figure 3.12, “Negative 48V Configuration”
show
+48V and -48V configurations.
Figure 3.11. Positive 48V Configuration
Figure 3.12. Negative 48V Configuration
