Vertical termination with co-linear
fl ex system

The appliance must not be connected to a chimney fl ue
serving a separate solid fuel burning appliance.

Masonry chimneys may take various contours which the fl exible liner
will accommodate. However, keep the fl exible liner as straight as
possible
, avoid unnecessary bending.

The Air Intake pipe must be attached to the inlet air collar of the
termination cap.

This appliance is designed to be attached to two 3” (76mm) co-linear
aluminium fl ex running the full length of the chimney. See the Venting
Arrangements for minimum and maximum heights.

Required Parts:

Part #

Description

946-529

Co-linear DV Vertical Termination Cap

948-305

3” Flex - 35 ft.

946-563

Coaxial to Co-linear Adapter Kit which contains
the following: Co-linear Flex Adapter Outer Pipe
Inner Pipe Adapter

510-994

Flue Adapter

945

45º Elbow

Alternate Approved Caps

980

Vertical Termination Cap

991

High Wind Cap

923GK

3” Co-linear Adapter with fl ashing

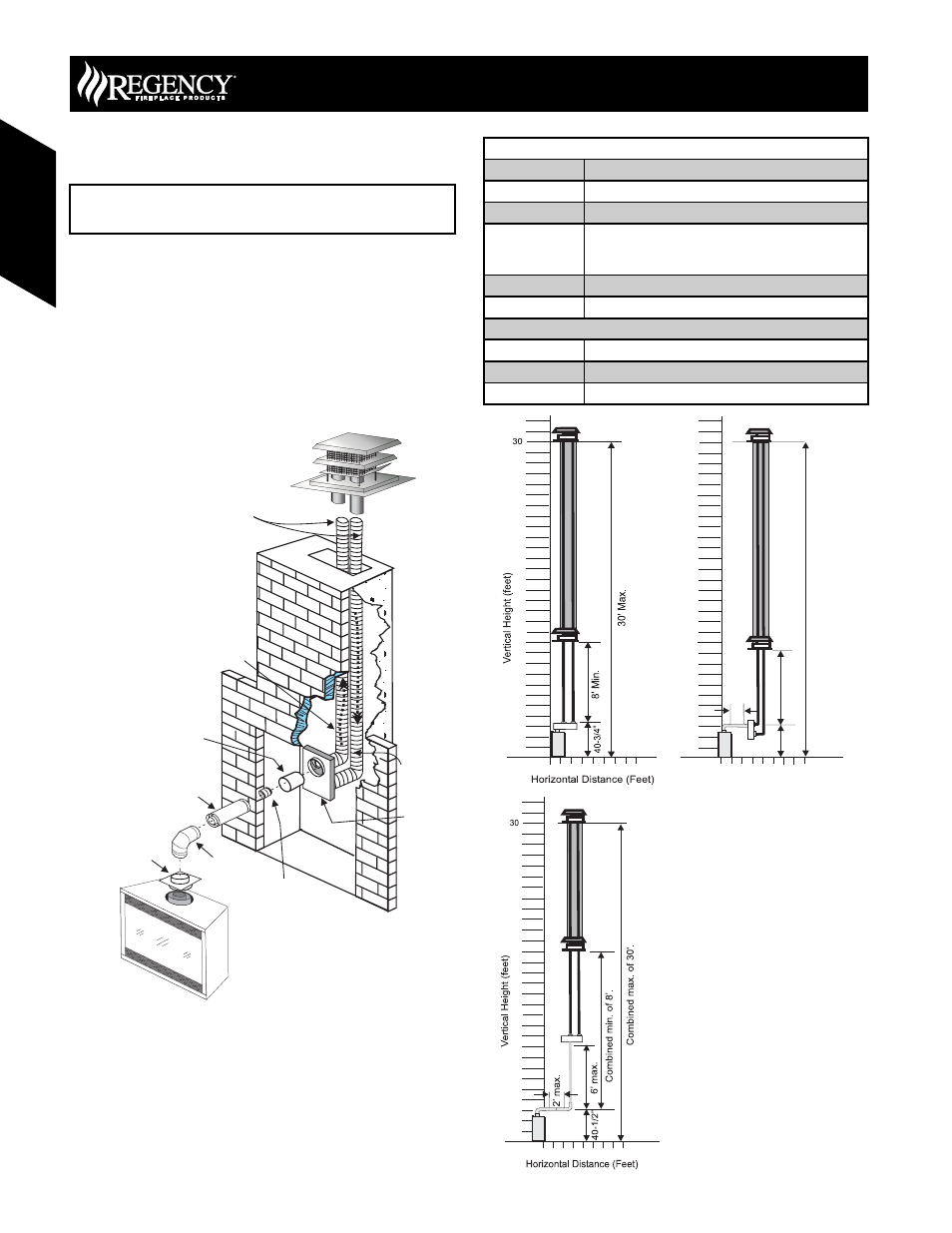

The shaded area in the diagrams

show the allowable vertical

terminations.

Please refer to Page 11

(Exterior Vent Terminations)

for additional guidelines on

vent locations.

Flex Liner

Exhaust

Flue

A maximum

of two certified

joiner kits

may be used

per length.

#948-305 (35 ft)

Air Intake

Co-linear DV

Vertical Termination

Cap # 946-529

Co-Linear

Flex

Adapter

with Kit#

946-563

Outer

Pipe

with Kit#

946-563

Inner Pipe

Adapter

with Kit#

946-563

Rigid Pipe Adapter

# 510-994

90 Degree

Elbow

Pipe Length

8'

Min.

40-1/2

30'

Max.

30

Horizontal Distance (Feet)

V

ertical

Height

(feet)

2’

max.

P36 - P36D Gas Fireplace

42

June 2007 Regency Product Specifi cations Book
