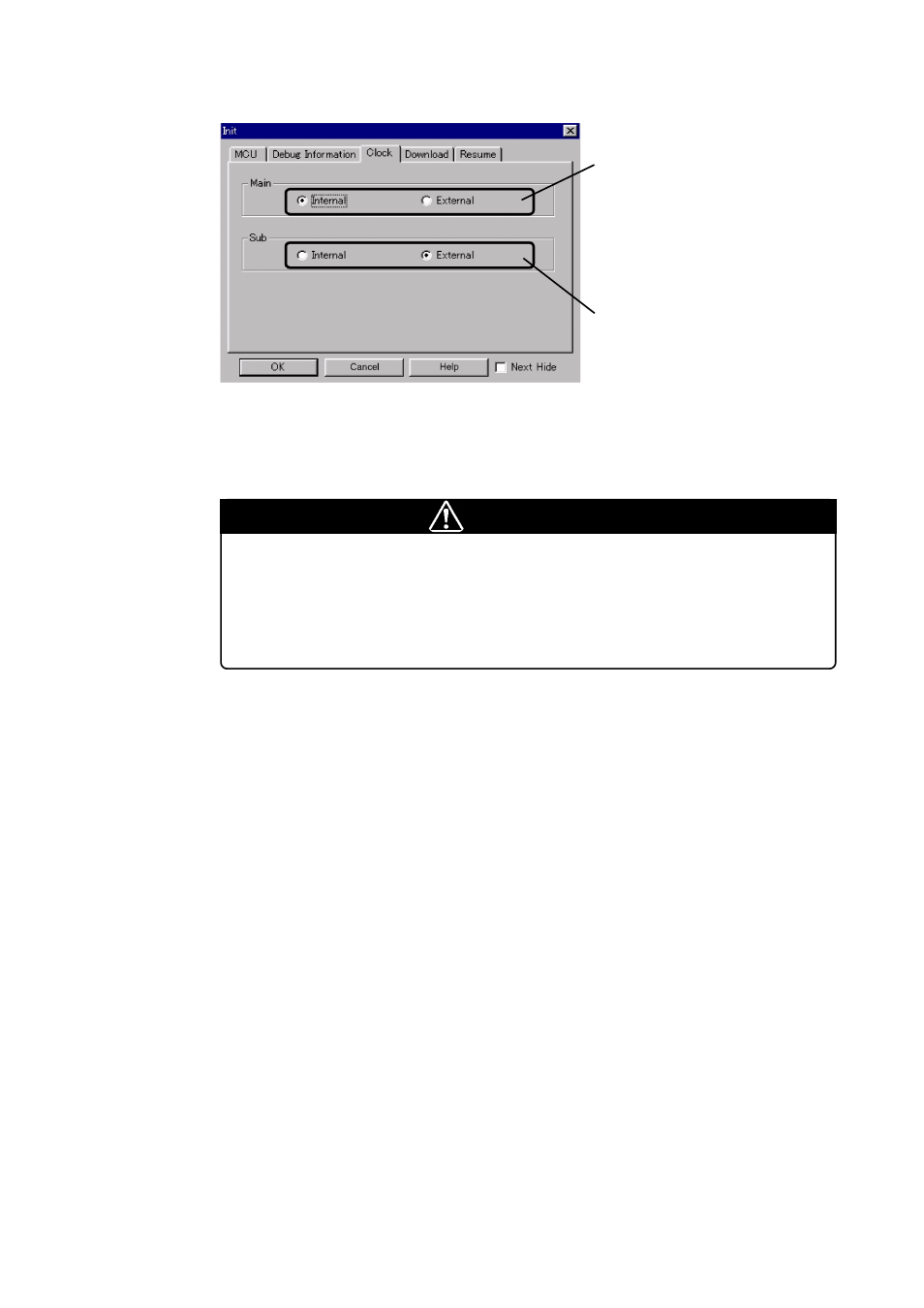

(2) Setting CLOCK Tab
CAUTION
Note on Setting XCIN Pin:
• When using P31/XCIN pin as a sub-clock, set the SW1 switch to the "XCIN" side.
For details on the switch settings of the emulation pod, see "3.2 Switch Settings"
(page 23).
Make the settings of the clock supply.
Main
Choose the clock supply for XIN pin.
INTERNAL: S u p p l i e d f r o m t h e
oscillator circuit board of
the emulation pod
EXTERNAL: S u p p l i e d f r o m t h e
oscillator circuit of the
target system
Sub
Choose the clock supply for XCIN pin.
Read the precaution below.
INTERNAL: S u p p l i e d f r o m t h e
oscillator circuit (32.768
kHz) of the emulation pod
EXTERNAL: S u p p l i e d f r o m t h e
oscillator circuit of the
target system
