Pre l iminar y – Runco LIGHTSTYLE LS-HB User Manual
Page 24
8
Runco LS-HB Installation/Operation Manual
PRE
L
IMINAR
Y
1.

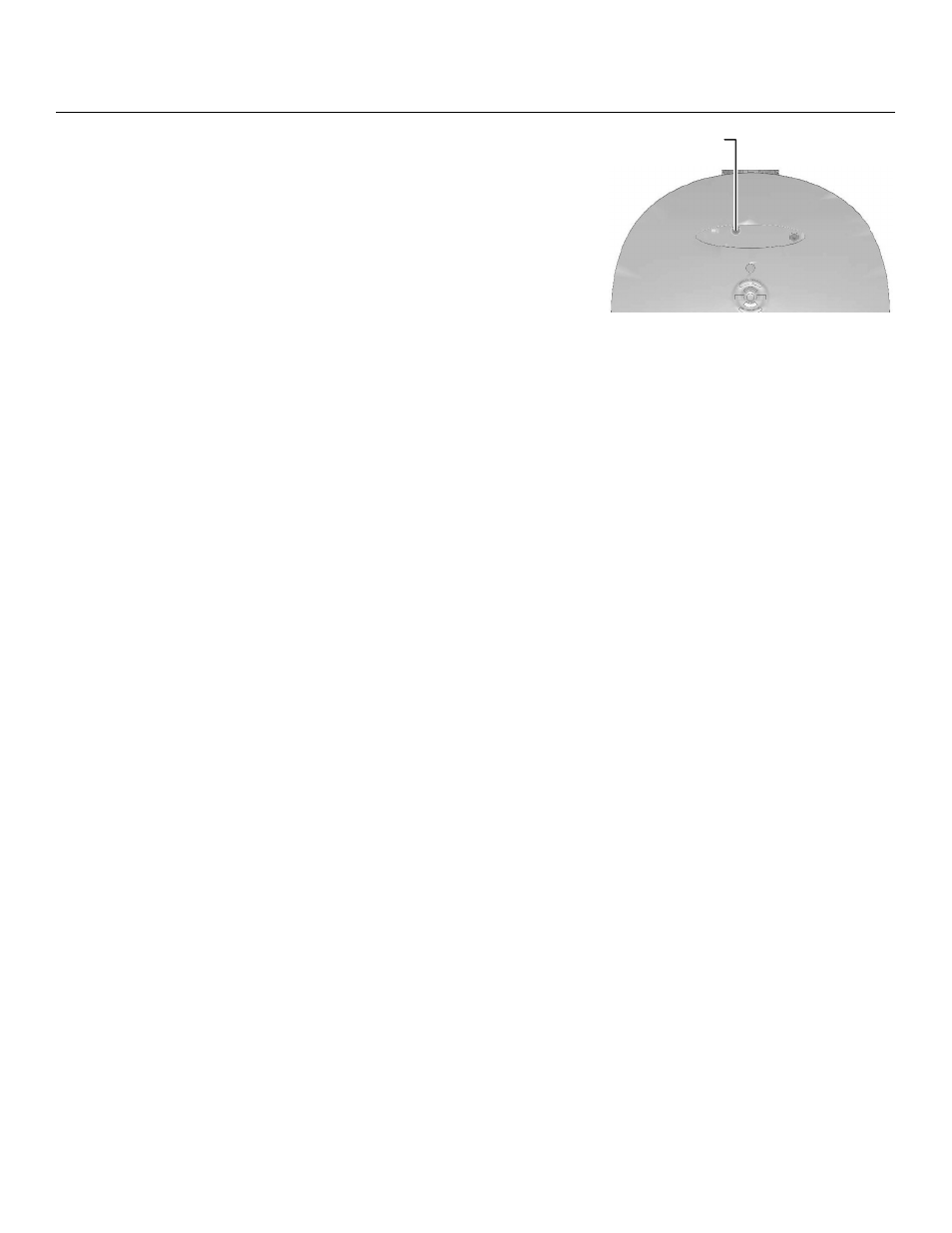

RUNCO LOGO BADGE
Remove to access the vertical
lens shift control.
2.
REAR COVER
Remove to access connectors.
3.
LAMP MODULE COVER
Remove this cover to access the lamp compartment.
4.
CABLE OPENING
Pass cables through this opening.
5.
CEILING MOUNT HOLES
Use these to attach the ceiling bracket to the projector. Use M4 screws with a
maximum screw depth of 10 mm (0.39 inch).
6.
ADJUSTABLE FEET
Use these when the projector is installed in a table-top configuration to level the image
and/or adjust the projection angle.
7.
PROJECTION LENS
The inside of the lens barrel is threaded to accommodate a standard, 72-mm lens
filter. For example, with a smaller screen you can install a neutral-density filter to
reduce the overall light output.
Vertical Lens Shift
