Navigating the Projector
Menus Most of the controls for the projector are accessed from within the projector’s menu
system. There are several groups of related functions, with each group selectable from the
Main Menu. Press MENU on the rear keypad or TheaterMaster remote to display this
menu.
To select a sub-menu using the remote keypad, do one of the following:
• Press the number key corresponding to the function menu you wish to access, such as
2 for the Image Settings menu.
• Press or on the directional keypad to highlight the desired option, then press
ENTER or .
The corresponding function menu or pull-down list of further options will then appear.
You navigate the function menus in a similar manner: enter a menu option number for any
numbered option, or use the
and keys to highlight the desired option, then press
ENTER. Extra long menus have a scroll bar on the right; use the arrow keys to access the
remainder of the menu. Locked items or items that do not pertain to the current action or
condition appear dimmed and cannot be selected.
When finished with a function menu, do one of the following:
• Press EXIT to return to the previous screen.
• Press MENU to leave the menu system and return to the presentation.
To set up the VX-40d/-50d/-60d/-80d for use with the DHD Controller, you will use the
Channel Setup, Size and Position, Image Settings and Lamp menus.
Channel Setup The projector stores and automatically recalls up to 50 different channels (source setups)
for a variety of inputs. This memory feature allows you to define and conveniently use a
wide variety of customized setups rather than having to repeatedly re-configure the
projector for different presentations. Each projector input can have several different
channels associated with it.
All available channels are listed in the Channel Setup menu (Figure 3-16), which describes
how each channel can be accessed and which serves as the gateway for editing, copying
and deleting channels.

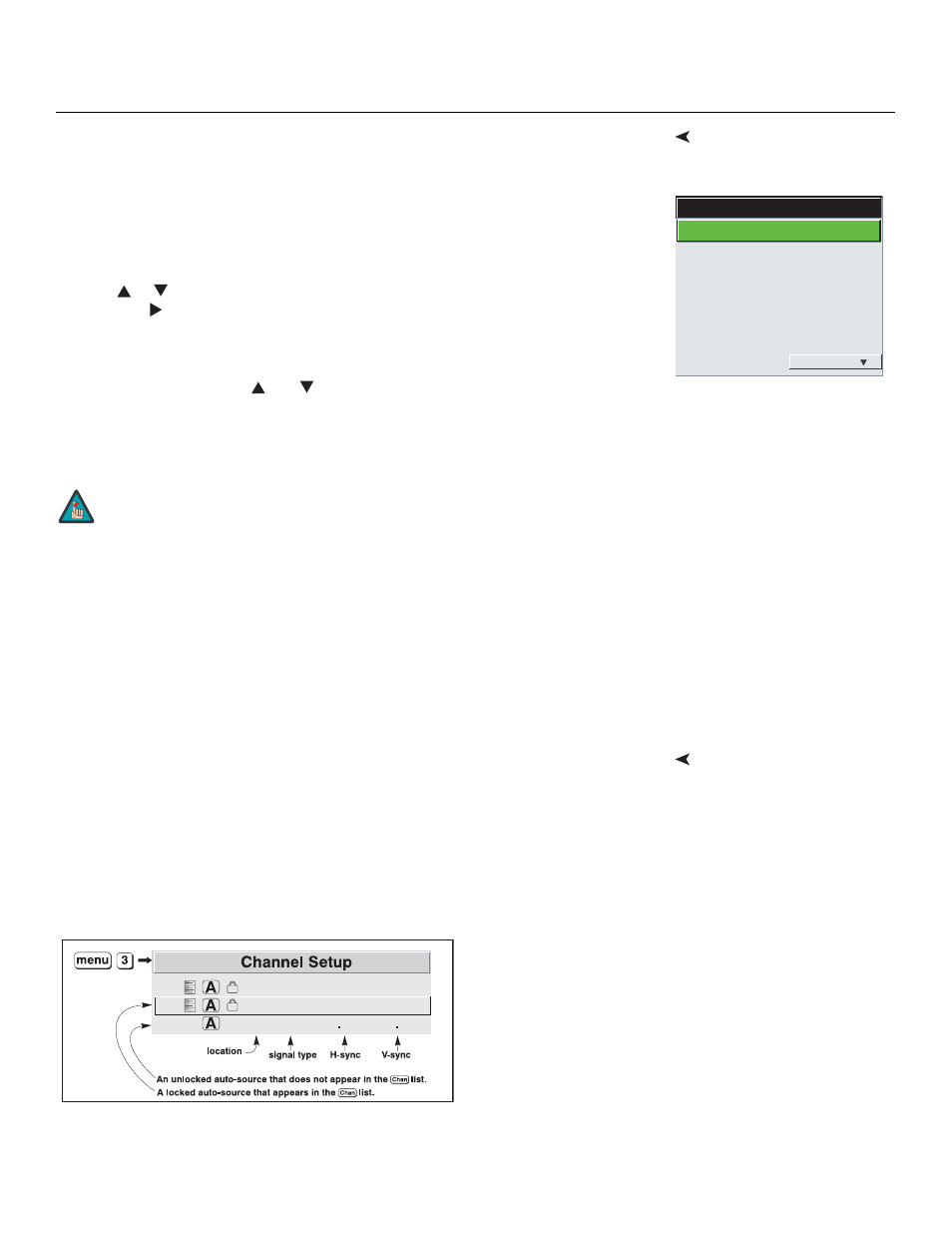

Figure 3-16. Channel Setup Menu
RUNCO VIDEO EXTREME
1. Size and Position
2. Image Settings
3. Channel Setup
4. Configuration
5. Lamp
6. Status
7. PIP and Switching
8. Test Pattern Off
1. If there is no signal present, all source-dependent adjustments
are disabled.
2. After 15 minutes of inactivity, the projector leaves the menu
system and returns to the presentation.
3. The Status menu is read-only.
Note
01 0,1 p5W 48.73k+ 60.01+
02 0,2 pDig DVI out fm DHD
03 0,1 i5W 33.72k- 60.00-
