Runco VX-40d/-50d/-60d/-80d Owner’s Operating Manual
PRE
L
IMINAR
Y
1.
TOP IR SENSOR
2.
BUILT-IN KEYPAD
The built-in keypad is located at the back of the projector, beside the input panel. Use
it similarly to the TheaterMaster Remote Control to perform service-related tasks on
the projector.
3.
INPUT PANEL
Connect the DHD Controller outputs here.
4.
LED STATUS DISPLAY
Indicates current operating status of the projector.
5.
LAMP COVER
Remove this cover to access the lamp compartment.
6.
REAR FOOT (Stationary)
7.
POWER INPUT (100 to 240 VAC)
Connect the VX-40d/-50d/-60d/-80d to power here. (The VX-40 and VX-60 require
100 to 240 VAC; the VX-50 and VX-80 require 200 to 240 VAC.)
8.
FRONT IR SENSOR
9.
PROJECTION LENS
10. INTAKE VENT
Allows cool air to enter the projector, to help maintain proper operating temperature.
11. ADJUSTABLE FEET (2)
Located on the underside of the projector are two adjustable feet. Raise or lower
these feet when positioning the projector to ensure it is level on all sides so the
displayed image will appear rectangular without any keystone.
2.2
VX-40d/-50d/-60d/
-80d Input Panel

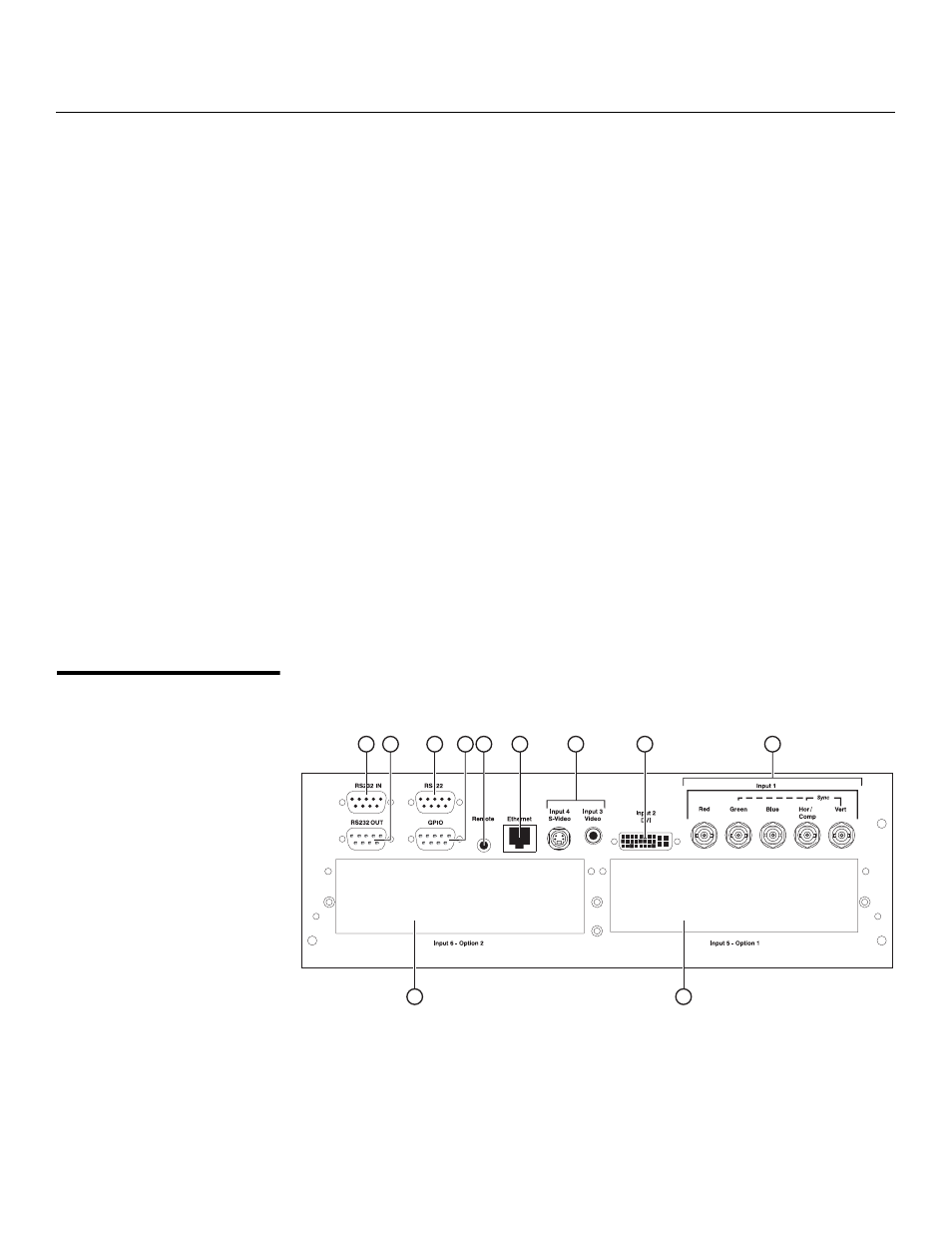

Figure 2-2 shows the VX-40d/-50d/-60d/-80d rear input panel.
Figure 2-2. VX-40d/-50d/-60d/-80d Input Panel
1
7
8
6
3
5
9
2
4
11
10
