Installation
Runco VX-40d/-50d/-60d/-80d Owner’s Operating Manual 35
PRE
L
IMINAR
Y

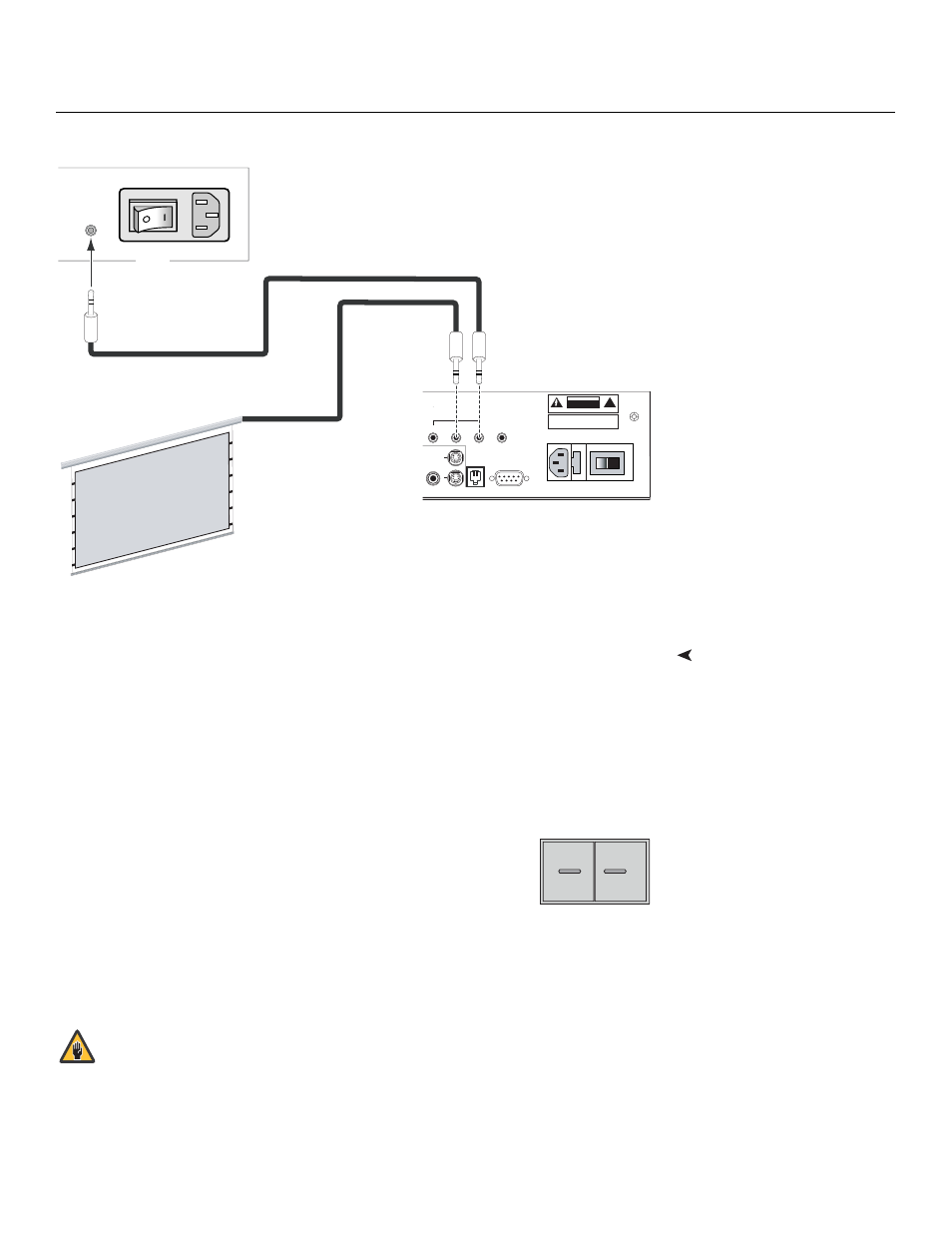

Figure 3-14. Connecting 12-Volt Trigger Outputs
Connecting to AC Power The VX-40d/-50d/-60d/-80d system includes two (2) AC power cords (one each for the
DHD Controller and projector).
DHD Controller: Plug the female end of one power cord into the AC receptacle on the
rear of the DHD Controller. Connect the other end to your AC power source
(100 to 240 VAC).
Projector: Similarly connect the VX-40d/-50d/-60d/-80d to a nearby AC outlet. The input
voltage to a VX-40d or VX-60d must be between 100 and 240 VAC. The input voltage to
a VX-50d or VX-80d must be between 200 and 240 VAC.
The LED status window displays an active pattern of segments to
indicate the projector is changing its state from powered down to
powered up. “--” appears in the display when the projector is
ready to be turned on.
AutoScope Lens Motor: With AutoScope-equipped projectors, a third power cord is
provided for the lens motor. Plug the female end of the AC power cord into the AC
receptacle on the rear of the lens motor assembly. Connect the other end to a 110 VAC
power source.
Pb Pr Y
Video
3 IR
RS-232 Control
S-Video 1
S-Video 2
HD1
HD2
1 2
R/Pr G/Y B/Pb
R/Pr G/Y B/Pb H V
DVI 1 DVI 2 DVI Out H/V V H
R/Pr G/Y B/Pb
H V
TRIGGERS
RS-232 Out
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE CENTER.
AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
!
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
100-230VAC 50-60 Hz, 165 Watts Max
OUTPUTS
INPUTS
SYSTEM CONTROL INTERFACE
Component Video
SDI
Option
Serial No
Video Processor / Controller
Model
Runco International
Union City, CA
Made In USA
DHD Controller
Rear Panel
AutoScope Lens Motor (Rear)
3.5-mm
mini plug
AC Input Power
Switch
Retractable Screen or other
12-Volt trigger-activated
device
The input voltage to the AutoScope lens motor must be between
100 and 120 VAC. Do not connect the AutoScope lens motor
to a 200-240 VAC power source!
Caution
