Page 42: 9. dvi source connections, Pre l iminar y
30
Runco VX-40d/-50d/-60d/-80d Owner’s Operating Manual
PRE
L
IMINAR
Y
Connecting Source
Components to the DHD
Controller
Connect your video sources to the DHD Controller as shown and described in the
sections that follow.
DVI Connections: See Figure 3-9.

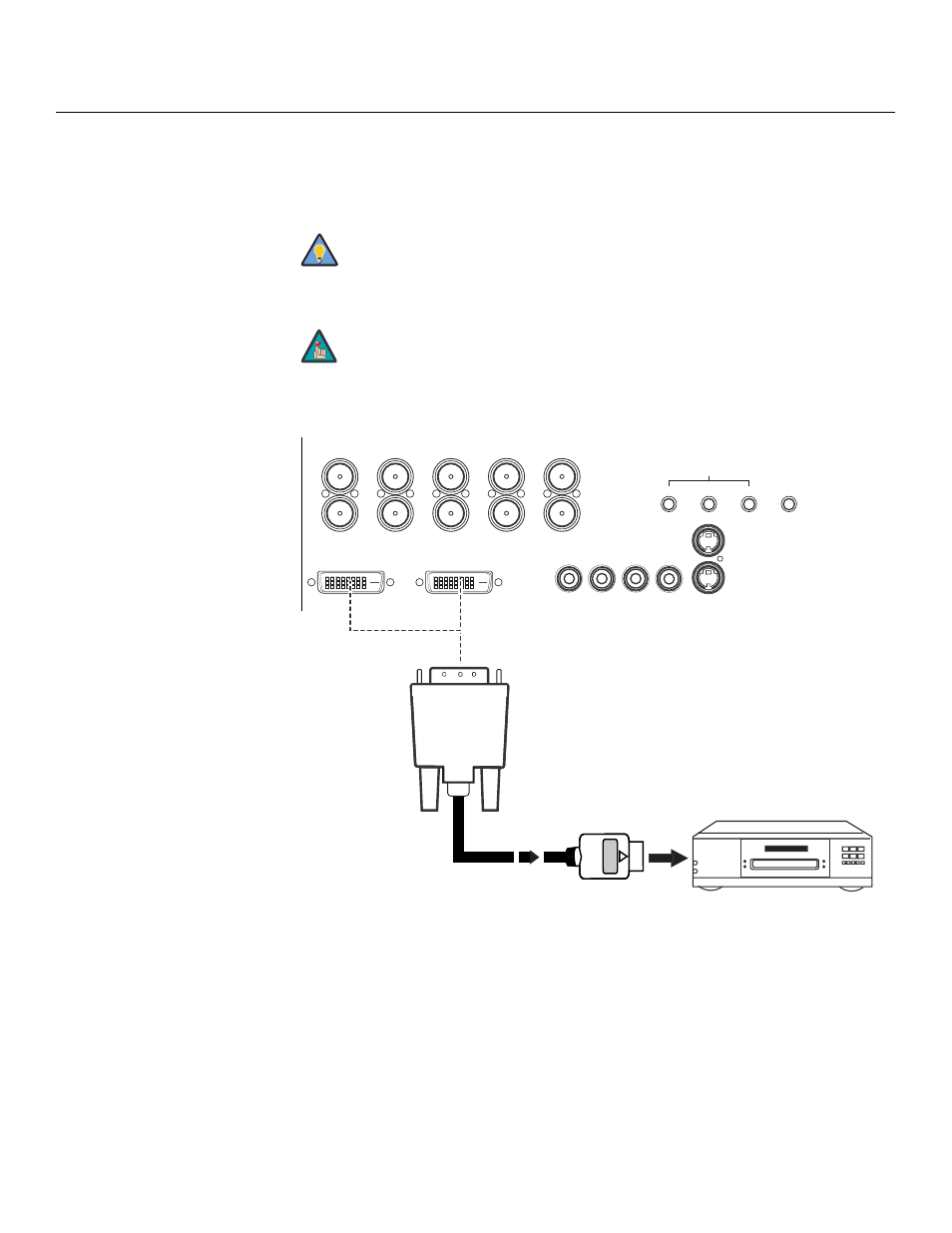

Figure 3-9. DVI Source Connections
➤
Use the DVI inputs whenever possible. This ensures the highest
video quality because the signal is carried in the digital domain
throughout the entire signal path, from source component output
into the projector.
You can also connect computers with DVI output to these inputs.
However, accepted VESA standard resolutions are limited to VGA
(640x480), SVGA (800x600), XGA (1024x768) and SXGA
(1280x1024) at 60Hz refresh.
Tip
Note
DVI 1
HD1
HD2
G/Y
INPUTS
H
V
R/Pr
B/Pb
G/Y
H
V
R/Pr
B/Pb
DVI 2
Component Video
Pb
Pr
Y
Video
S-Video 2
S-Video 1
IR
1
2
3
TRIGGERS
DVI Source
(DVD Player or
HD Tuner with
HDMI or DVI out)
