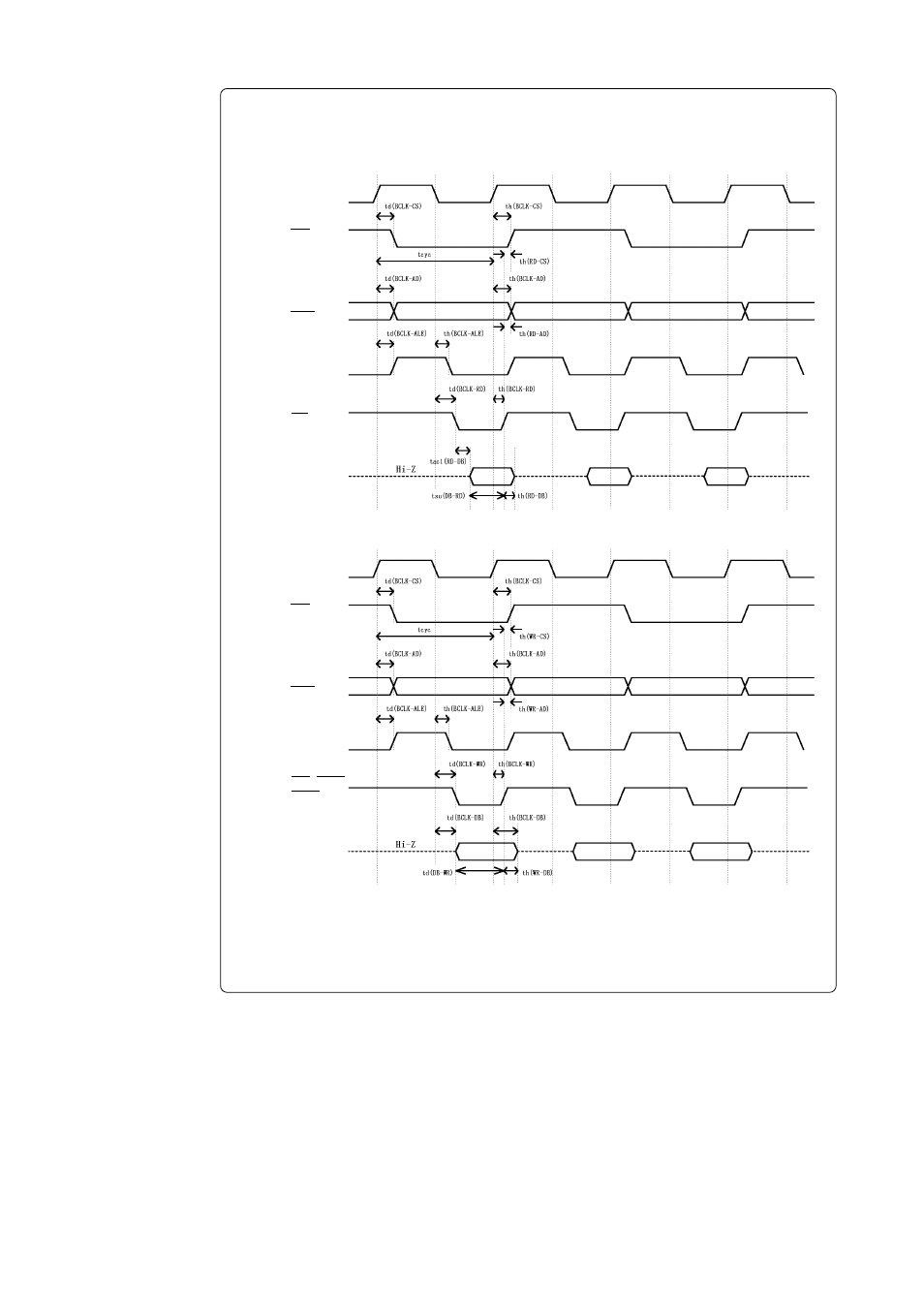

Figure 5.6 Memory expansion mode and microprocessor mode (no-wait)
V
CC
= 3 V
Memory expansion mode and microprocessor mode (no-wait)
Read timing
BCLK
ALE
DB
RD
ADi
BHE
Write timing
BCLK
ALE
DB
ADi
BHE
CSi
CSi
WR, WRL,
WRH
Conditions:
• V
CC
=3 V
• Input timing voltage: V
IL
= 0.48 V, V
IH
= 1.5 V
• Output timing voltage: V
OL
= 1.5 V, V
OH
= 1.5 V
