3.2 Setting Switches and Pullup Resistor
Figure 3.2 shows the positions of switches and a position for installing a pullup resistor. Tables 3.1,
3.2 list how to set each switch and Figure 3.3 shows how to install a pullup resistor.

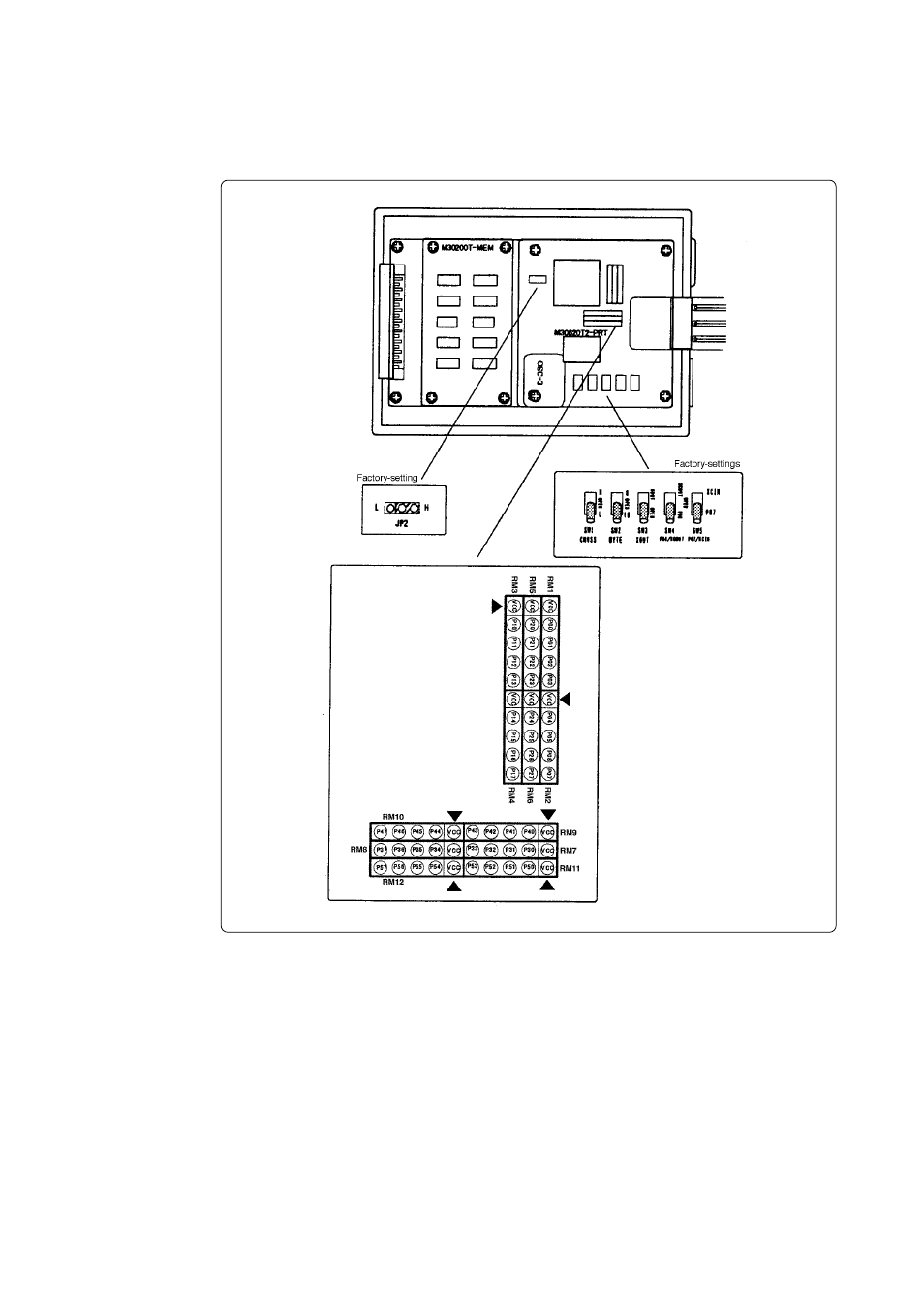

Figure 3.2 Positions of switches and their factory-settings
