Applications Guide
Synchronized Recording and Playback
with Multiple AR Units (AR-LINK)
What is AR-LINK?/What You Can
Do Using AR-LINK
The AR-LINK connector is a transmission connector used for
creating completely synchronized recording and playback
with multiple AR-3000/200 devices. The connectors feature
special leads for commands and master clock, allowing
synchronization with sampling frequency precision.
With one AR-3000 as the master, you can then link up to 31
other AR-3000s and/or AR-200s (for a total of 32 devices) to
get 64-channel multitrack recording and playback.
However, this system allows recording and playback only of
audio phrases (MIDI phrases cannot be handled).
* Synchronization with the AR-LINK is not available when only
AR-200s are used.
Synchronized Audio Phrase
Playback with AR-LINK Signals

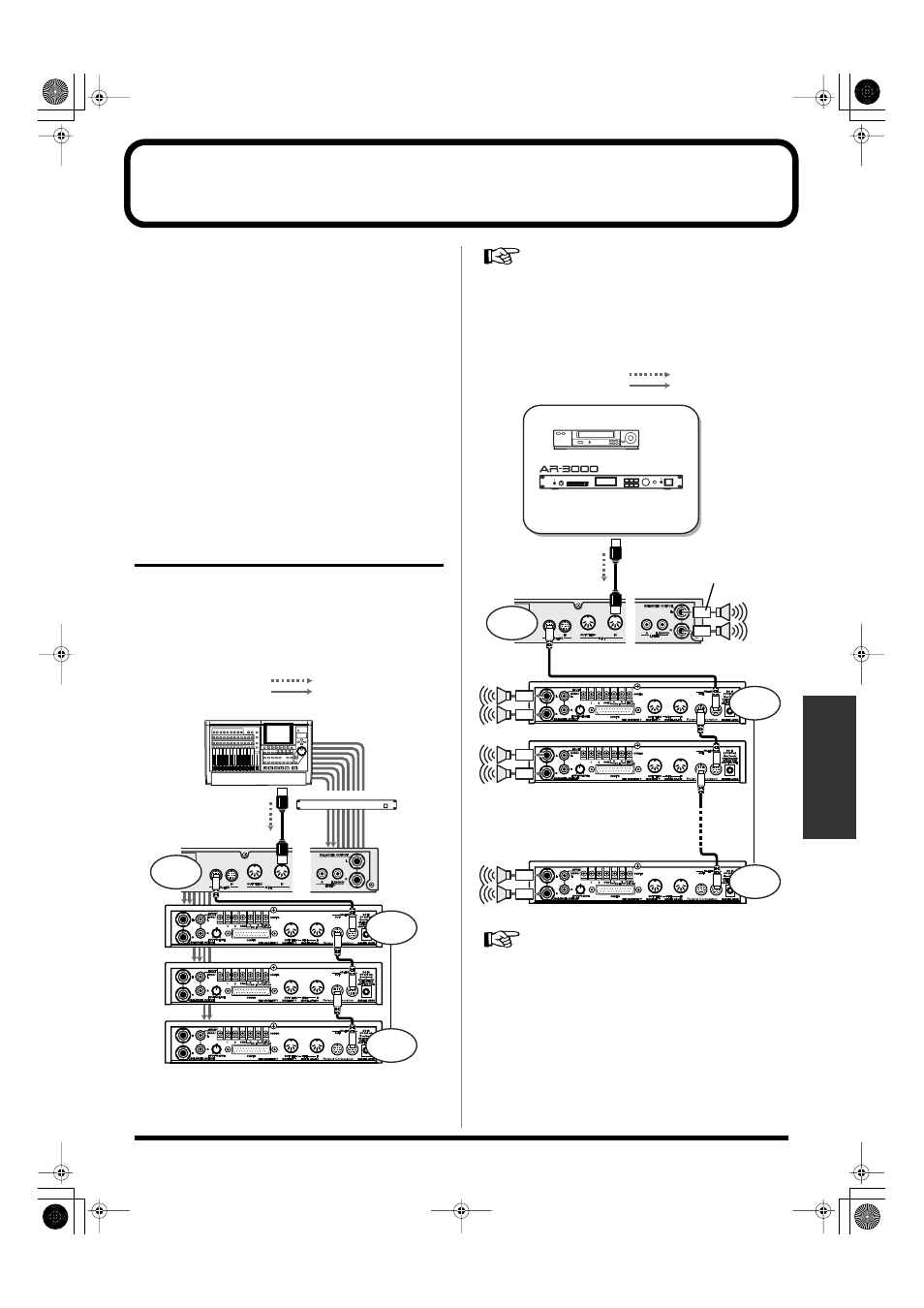

Example of Connecting to an
External Device
Use MIDI to send a hard disk recorder’s operation data to
the master AR-3000. Connecting four slave AR-200s in a
chain then allows you to get 10-channel multitrack recording.
fig.link-01
Important Notes on Making Connections and Switching
the Power On and Off (p. 9)
Use MIDI to send signals from an imaging device to the
master AR-3000. You can chain 31 slave AR-200s to
synchronize images and phrases.
fig.link-02
Important Notes on Making Connections and Switching
the Power On and Off (p. 9)
MIDI SIGNAL
AUDIO SIGNAL
MIDI IN
MIDI OUT
LINE IN
LINE IN
LINE IN
LINE IN
AR-3000
AR-200
MTC, MMC SIGNAL
Hard Disk Player
AR-LINK
SLAVE
AR-LINK
MASTER
AR-LINK
SLAVE
AUDIO PATCH BAY
Image Device
MIDI SIGNAL
AUDIO SIGNAL
MMC MODE : MASTER
MTC SYNC SOURCE : INTERNAL
MTC SYNC OUT : MTC
MIDI IN
MIDI OUT
MTC, MMC SIGNAL
MMC MODE : SLAVE
MTC SYNC SOURCE : MTC
AR-LINK
SLAVE
AR-LINK
MASTER
AR-LINK
SLAVE
Power Amp
AR-3000
AR-200
Up to 31 AR-3000/200s
(for a total of 32) can be linked.
