A741
6
Print Server Manual
2.3
A741 internal cabling
Mount the internal cable and brackets as per A741 Repro System
installation guide (provided separately).
2.4
PC Specifications
Please make sure that the Server PC meets the following (minimum)
specifications
♦
Pentium PRO / Pentium II 200Mhz or faster
♦
128Mb of internal memory
2.5
PCI card installation
Remove the power cable from the PC.
Open the PC housing.
Install the A741 Repro Card into a free PCI slot.
Quick test:
•
Connect the A741 signal cable to the controller.
•
Switch-on the PC and A741 and wait until the A741 is ready.
•
Make sure the A741 is on-line.
•
Press the small button at the corner of the PCI card. This should give a
test print as seen below:
Note:
For a more detailed test procedure see chapter: 4.9,
LBTEST
See also correct positioning of the PCI card, chapter: 4.4.3,
Select the correct
PCI slot for the A741 Repro System card

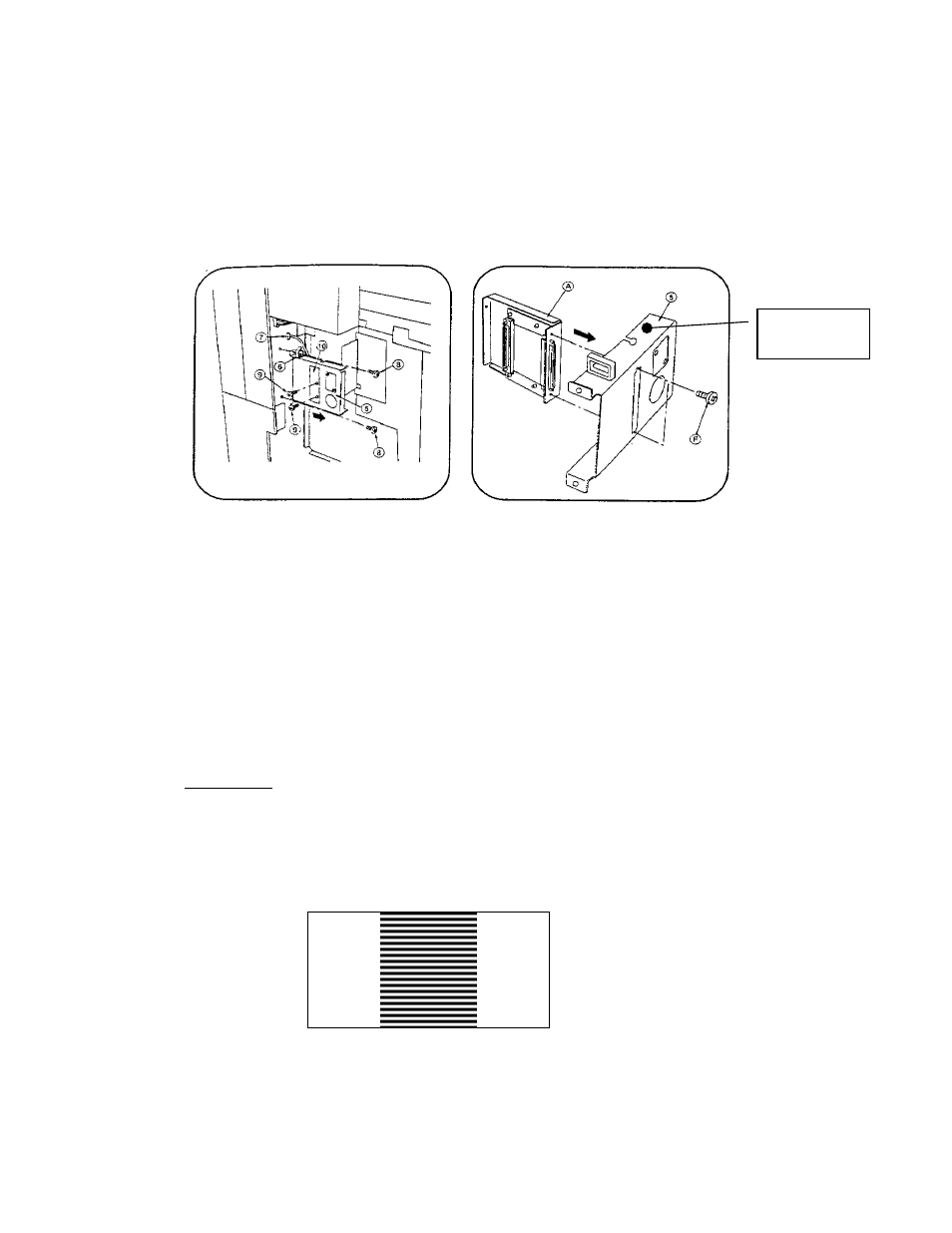

Bracket to
order
