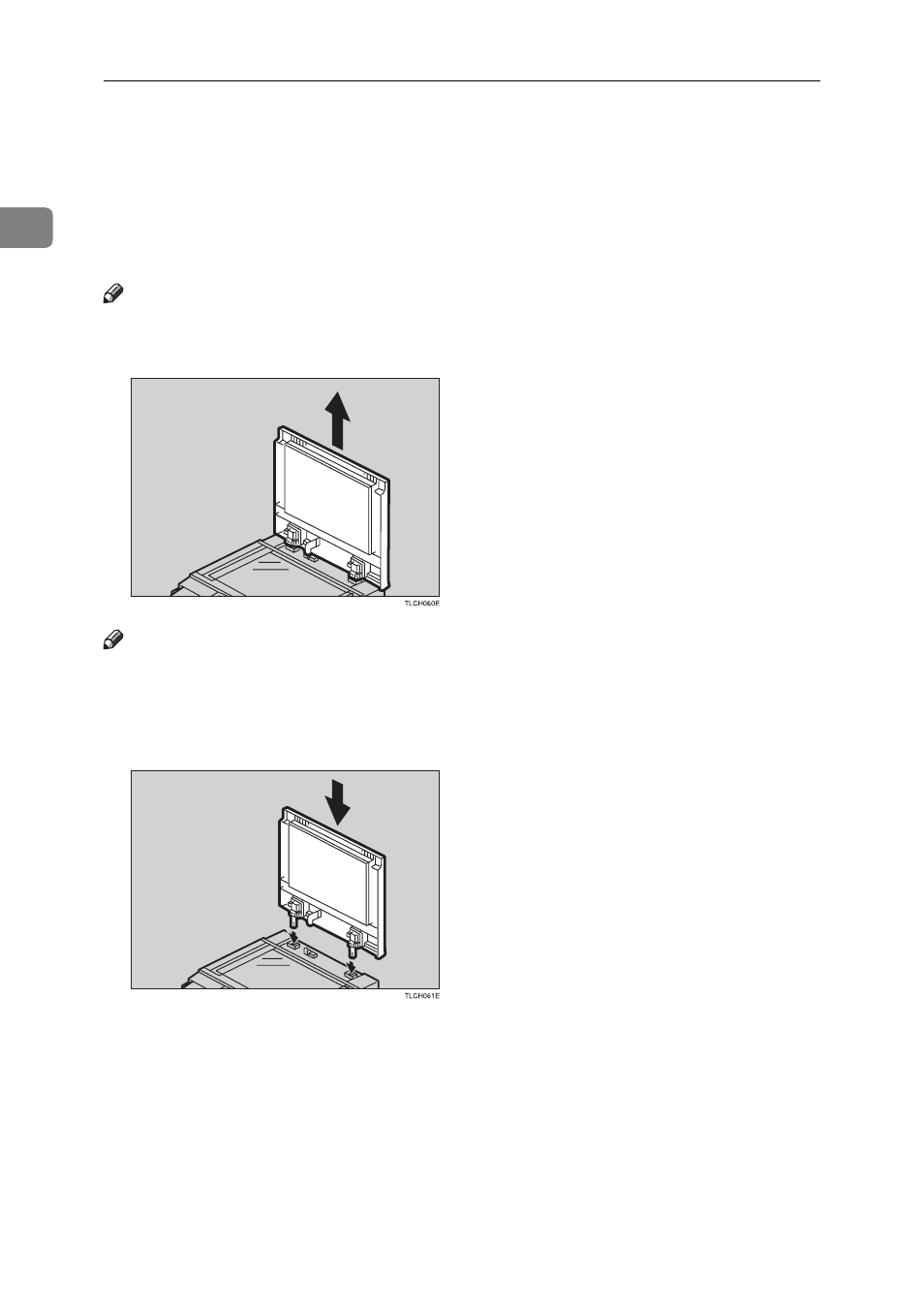

Removing the Platen Cover to Copy a
Large Original

You can remove the platen cover to copy a large (more than A3, 11"

× 17") orig-

inal.

Note

❒ You cannot remove the document feeder.
To remove the platen cover, lift it out.

Note

❒ Lift the platen cover with both hands. Place the removed cover on a flat sur-

face, such as a desk, and where it will not be damaged.

To reset the platen cover, align the pins of the platen cover and the holes of the
copier. Then push the platen cover onto the copier.

Tlch060e.eps

Tlch061e.eps
