4.5 Connection to the Target System
When connecting the M34551T2-MCU board to the target system:
Connect the 50-wire normal-pitch cable included with the MCU board to the 50-pin dual-in-line pins
on the target system. Following products are required for connection to the target system.
(1) 100-wire half-pitch cable (40 cm)
(2) PCA4029 pitch converter board
(3) 50-wire normal-pitch cable (10 cm)
Figure 4.7 depicts the M34551T2-MCU board connected to the target system using the 50-wire
normal-pitch cable. Table 4.8 lists the connector signal assignments of the 50-wire normal-pitch
cable. Figure 4.8 shows the pin layout of the 50-wire normal-pitch cable.

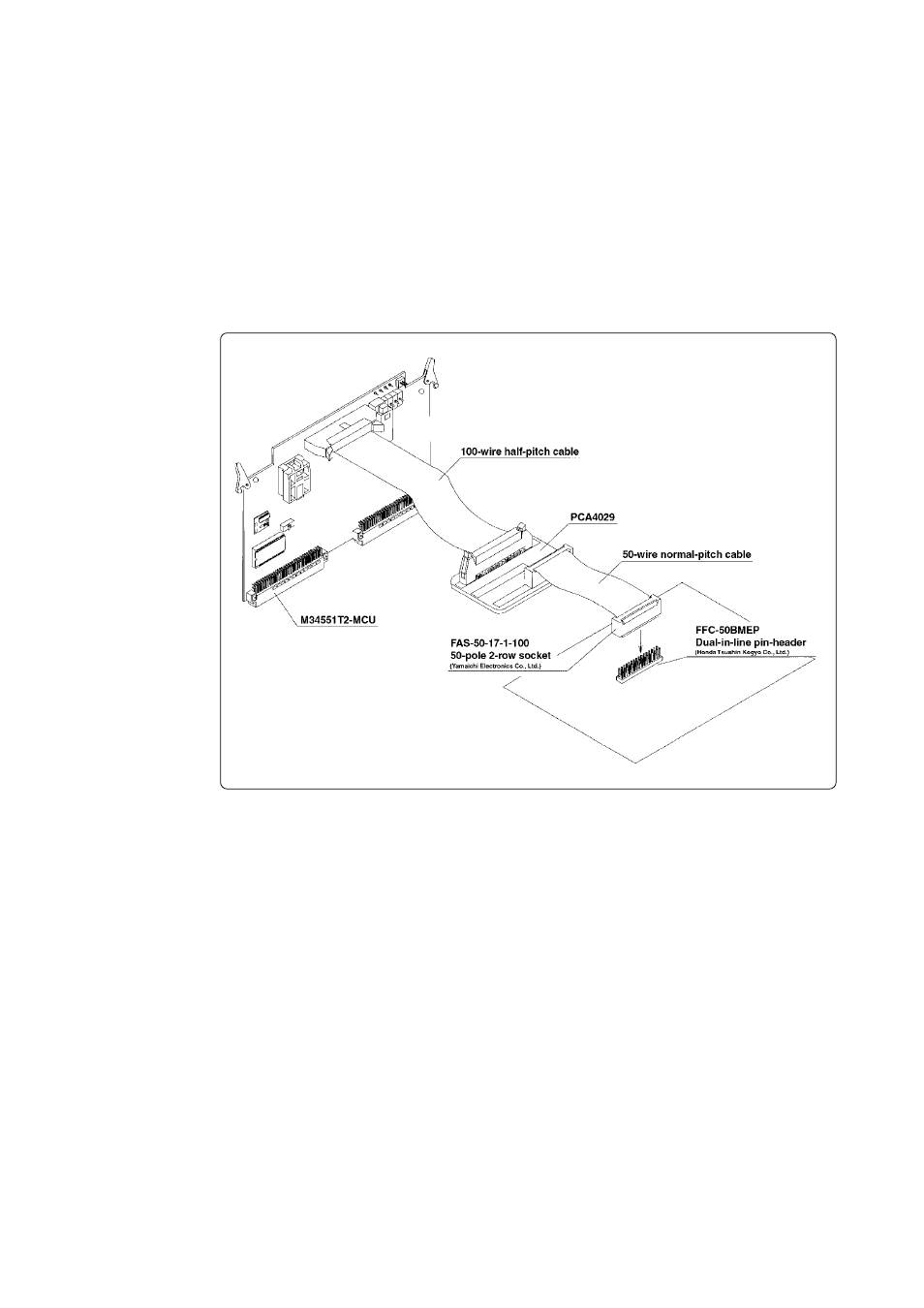

Figure 4.7 Connecting the MCU board to the target system using dual-in-line pins
