4 description of connectors – Renesas Single-Chip Microcomputer M34551T2-MCU User Manual
Page 19
( 17 / 40 )
4.4 Description of Connectors
The M34551T2-MCU board has eight connectors. Table 4.4 lists the functions of these connectors.

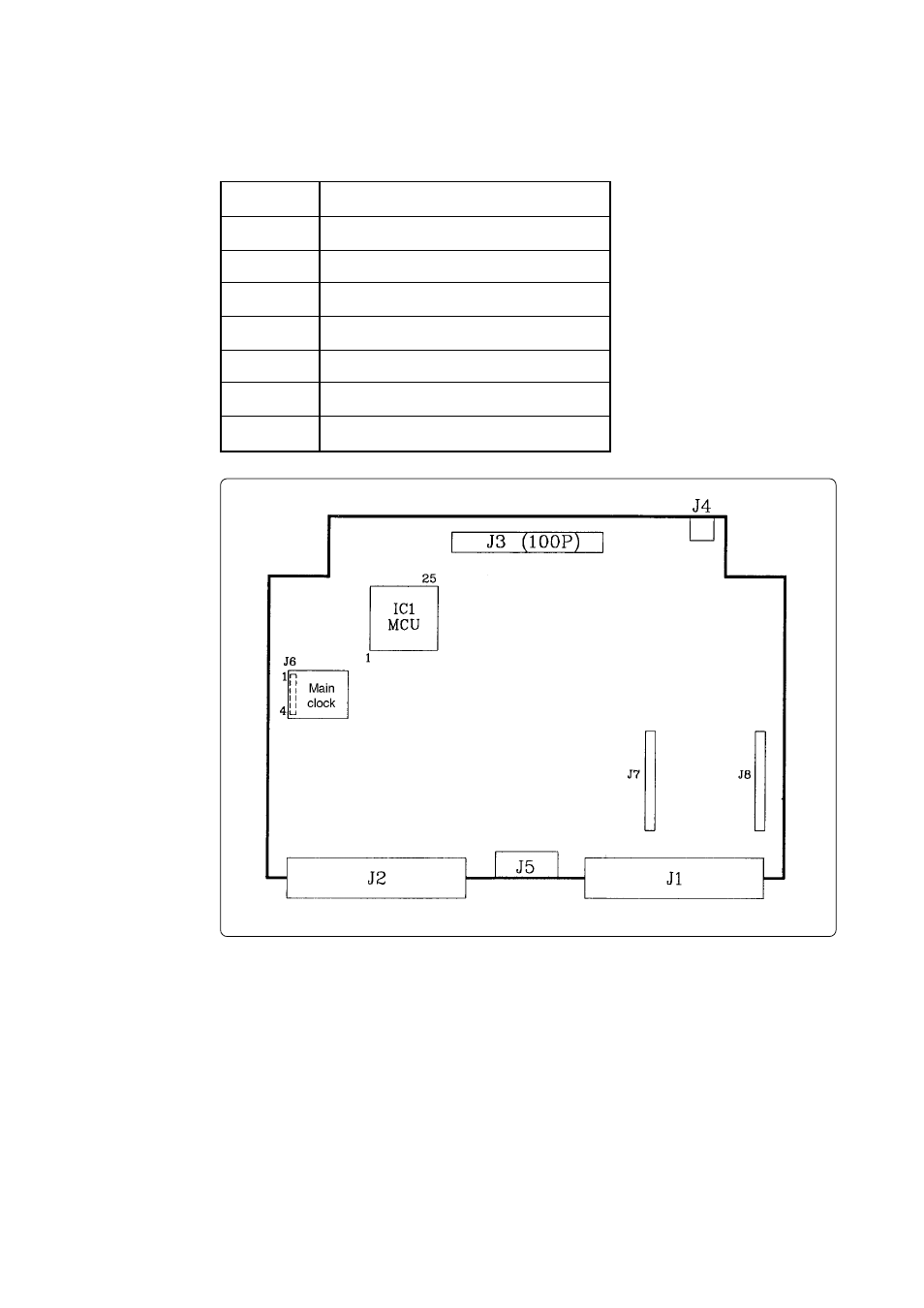

Figure 4.3 shows the positions of connectors on the MCU board.
Table 4.4 Connectors
Figure 4.3 Positions of connectors
Connects the evaluation MCU bus.
Connects the monitor CPU bus.
Connects the target system. (100-pin)
Connects the external trigger signal. (2-pin)
Connects the evaluation board.
Connects the oscillator circuit board. (4-pin)
Connects PCA7745.
Connector
J1
J2
J3
J4
J5
J6
J7, J8
Function
