14

Runco CL-610 Owner’s Operating Manual

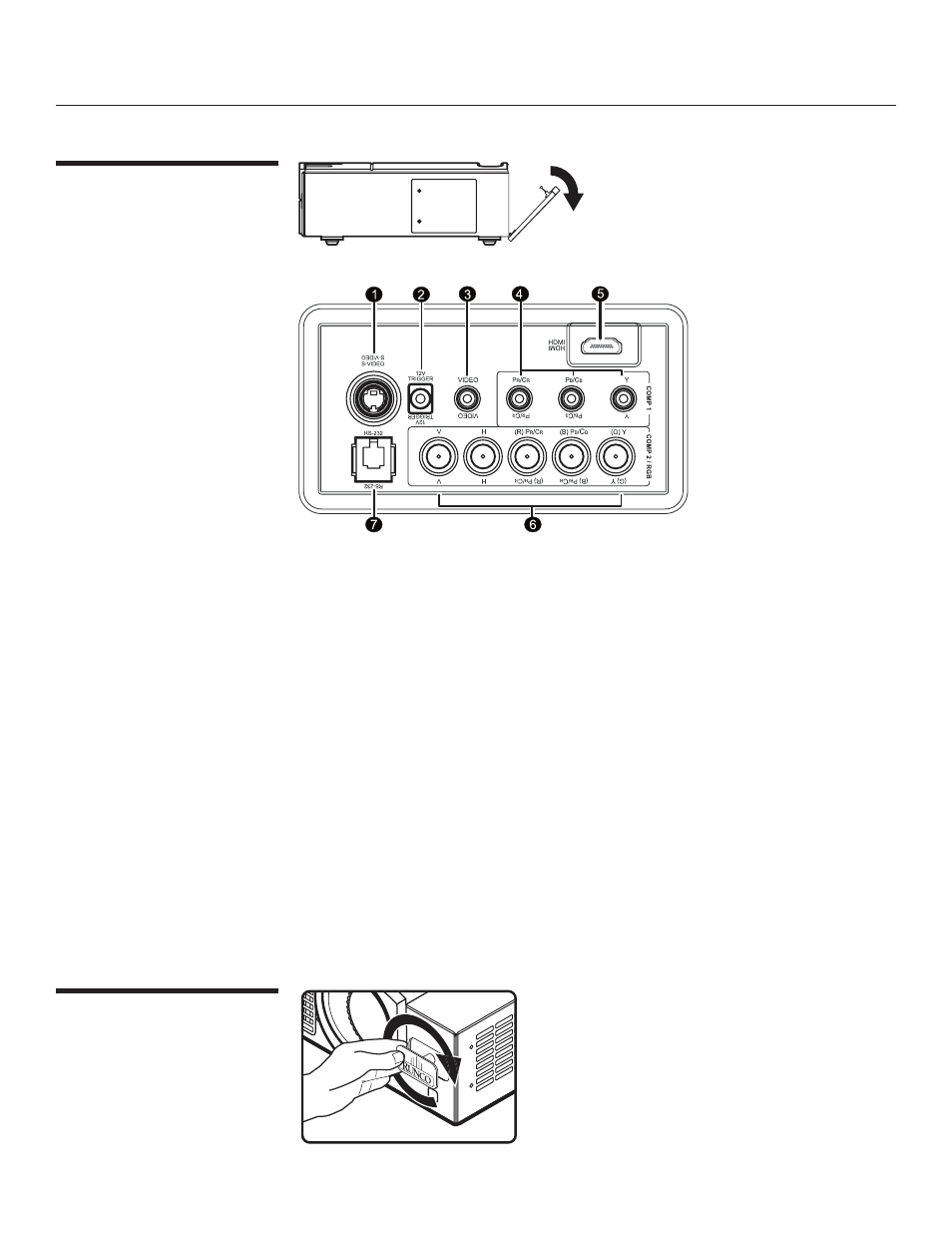

Connector Panel

Controls and Functions

Runco Logo

To access the connector panel, pull firmly
on the cable access cover to open it.

1. S-Video (mini DIN 4-pin) Y/C (S-video) signal input

2. 12v Trigger (mini jack, diameter 5.5 mm outside, 2.5 mm inside)

+12V output, active when the projector is turned on

3. Video (RCA Jack)

Composite video signal input

4. Component (RCA Jacks)

480i Component (Y/CB/CR) video signal input

5. HDMI (High-Definition Multimedia Interface) Input

Digital video signal input

6. RGB/ HDTV (BNC) or Progressive Scan DVD players

DTV Y/P

B

/P

R

or DTV RGB video signal input

7. RS-232C (RJ-11 Jack)

RS-232C control signal input (refer to page 49 for details)

The Runco logos on the front and rear of the projector
can be rotated to match a floor or ceiling installation.
To rotate the logo, grip it at the sides, pull it away
from the projector and rotate it 180 degrees.
