Regency Bellavista™ B36X Gas Fireplace
49
INSTALLATION
WALL SWITCH
(INCLUDED)
1) Run the supplied 10' of wire through the right
or left side gas inlet opening. Be careful not to
damage wire.
Note: We recommend a maximum of 10' of wire
but if you wish to go with a longer run,
use the Thermostat Wire Table.

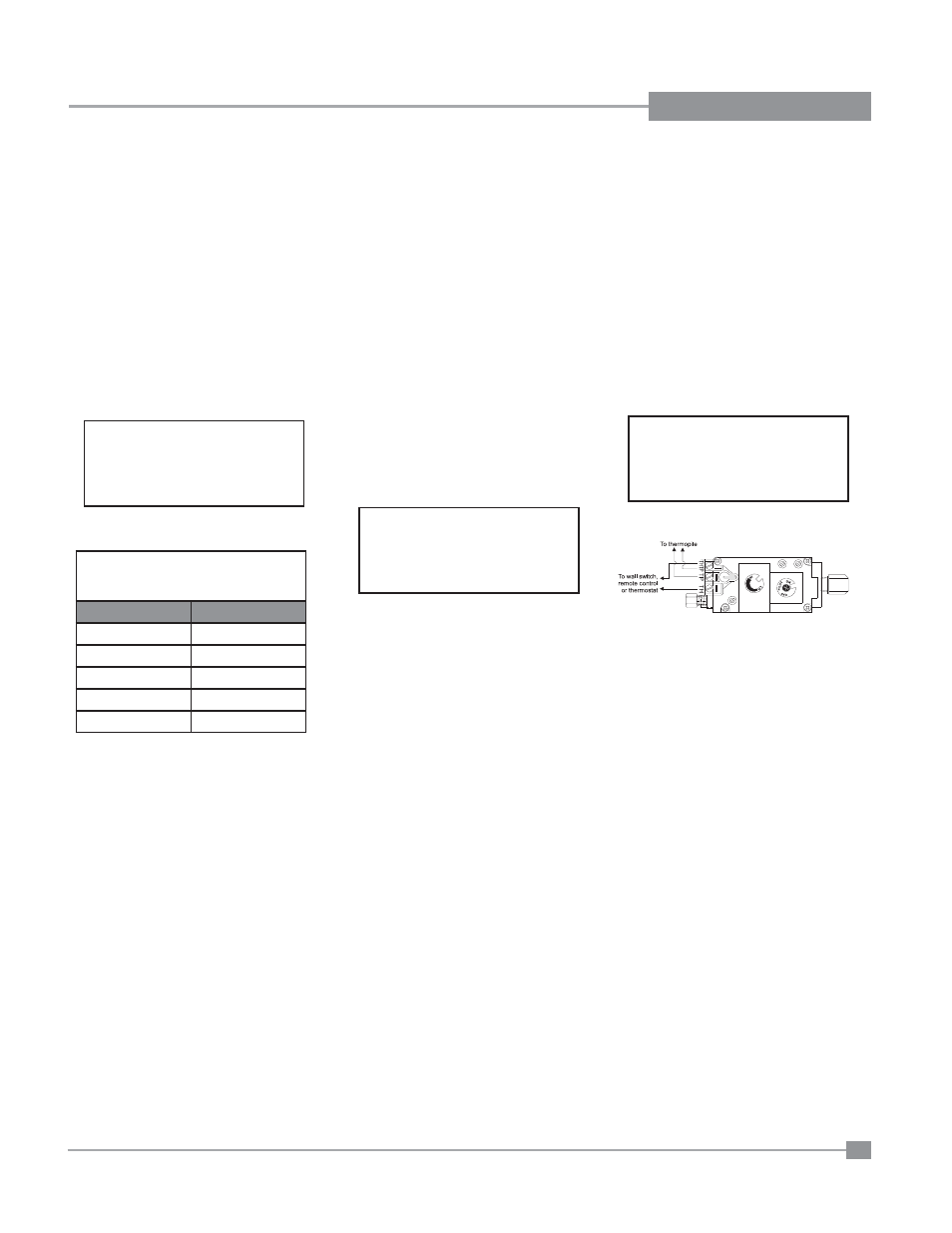

2) Connect the wire to the wall switch and install
into the receptacle box*. Also attach wires to
the valve as shown below.
*The receptacle box (gang box) is not supplied
with the unit. Must be purchased separately.
Optional
WALL THERMOSTAT
A wall thermostat may be installed if desired,
connect the wires as per the wiring diagram.
Use table below to determine the maximum
wire length.
Note: Preferable if the thermostat is
installed on an interior wall.
Regency ® offers an optional programmable
thermostat but any 250-750 millivolt rated non-
anticipator type thermostat that is CSA, ULC or
UL approved may be used.
Thermostat Wire Table
Optional
REMOTE CONTROL
Regency offers 3 different remote control
options which are Profl ame GT, GTM and GTMF
models. See next page of all available features of
each version.
Use the Regency ® Remote Control Kit approved
for this unit. Use of other systems may void your
warranty.
The remote control kit comes with a hand held
transmitter, a receiver and a wall mounting plate.
1) Choose a convenient location on the wall to
install the receiver and the receptacle box
(protection from extreme heat is very important).
Run wires from the fi replace to that location.
Use Thermostat Wire Table.
2) See optional remote control instruction manual
for detailed instructions.
Recommended Maximum Lead Length
(Two-Wire) When Using Wall
Thermostat (CP-2 System)
Wire Size Max. Length
14 GA. 50 Ft.
16 GA. 32 Ft.
18 GA. 20 Ft.
20 GA. 12 Ft.
22 GA. 9 Ft.
CAUTION
Do not wire millivolt
wall switch wire
to 120V wire.
CAUTION
Do not wire millivolt
remote control wires
to 120V wire.
CAUTION
Do not wire millivolt
wall thermostat wires
to 120V wire.
