Page 16
16
Regency Bellavista™ B36X Gas Fireplace
INSTALLATION

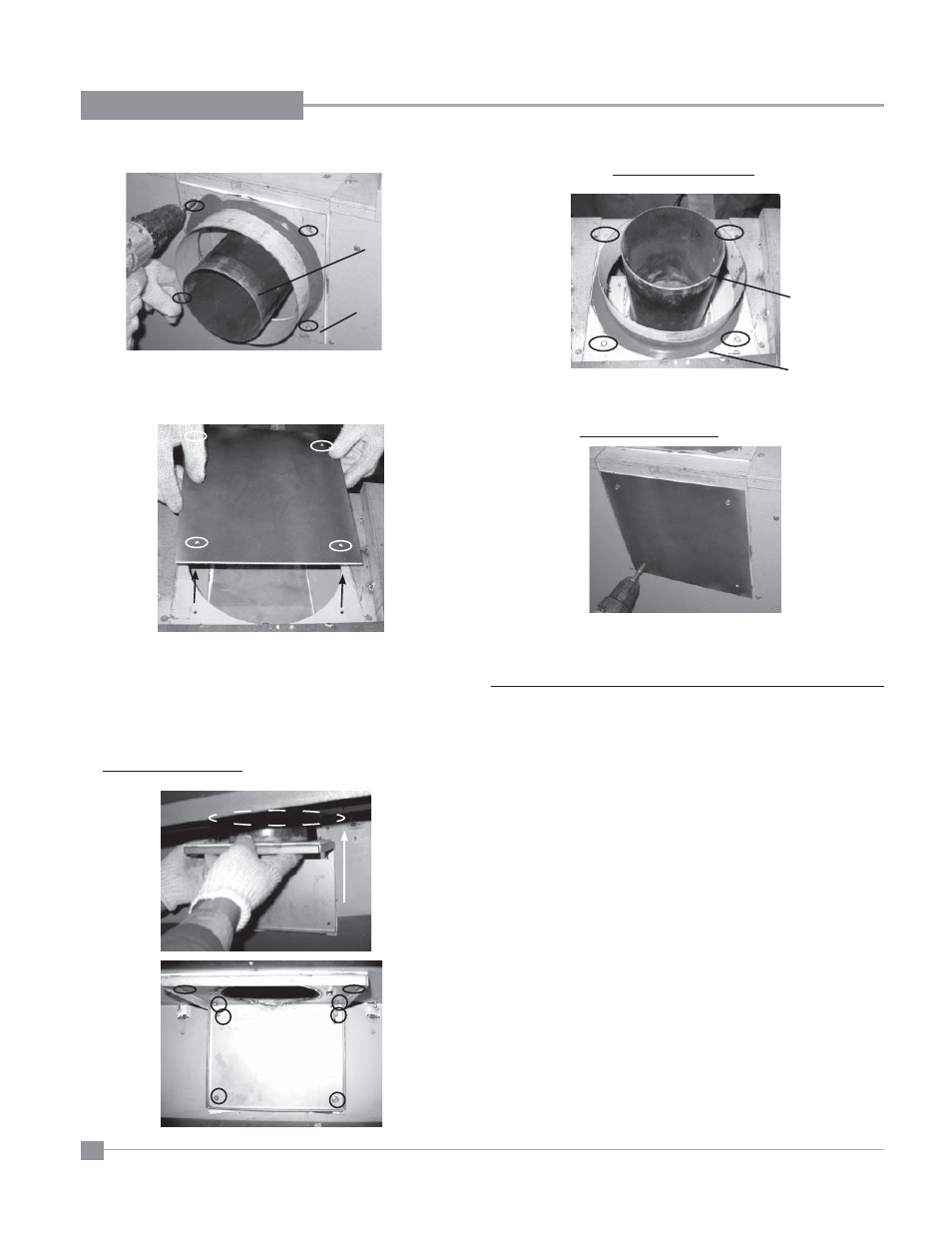

6) From the outside top of the fi rebox, remove the intake collar plate
by removing the 4 - 1/4" x 1/2 " screws. See Diagram 6.
5) From the outside rear of the fi rebox, remove the intake collar
assembly. Remove the 4 - 1/4" x 1/2" screws. See Diagram 5.
Diagram 5
Exhaust
Assembly
Intake Collar
Assembly
Diagram 6
Before proceeding to Step 7, inspect condition of all gaskets.
DO NOT install parts with damaged gaskets. Replace if necessary
with spare gaskets supplied.
7) From the inside of the fi rebox, place the exhaust assembly into
position as shown in Diagram 7 and secure with 8 - 1/4" x 1/2" screws
(Diagram 8). Ensure all screws are tight, but do not over tighten.
All 8 screws must be used.
Diagram 7
Diagram 8
9) From the outside rear of the fi rebox, install the intake collar plate
with 4 - 1/4" x 1/2" screws. Ensure all screws are tight, but do not
over tighten. All 4 screws must be used.
10) From inside the fi rebox, re-install the baffl e plate and heat
defl ector - reverse steps 2 & 3.
8) From the outside top of the fi rebox, install the intake collar assembly.
Secure with 4 - 1/4" x 1/2" screws. Ensure all screws are tight, but
do not over tighten. All 4 screws must be used.
Diagram 10
Intake Collar
Assembly
Exhaust
Assembly
Diagram 9
VENTING
INTRODUCTION
The B36X uses the "balanced fl ue" technology Co-Axial system. The
inner liner vents products of combustion to the outside while the outer liner
draws outside combustion air into the combustion chamber thereby elimi-
nating the need to use heated room air for combustion and losing warm
room air up the chimney.
Note: These
fl ue pipes must not be connected to any other
appliance.
The gas appliance and vent system must be vented directly to the outside
of the building, and never be attached to a chimney serving a separate solid
fuel or gas burning appliance. Each direct vent gas appliance must use it's
own separate vent system. Common vent systems are prohibited.
