appendix a: reference
CH
3 4
IN
FROM
ANTENNA
OUT
TO
TELEVISION
MONO
L L
R R
IN OUT
IN OUT
VIDEO
AUDIO

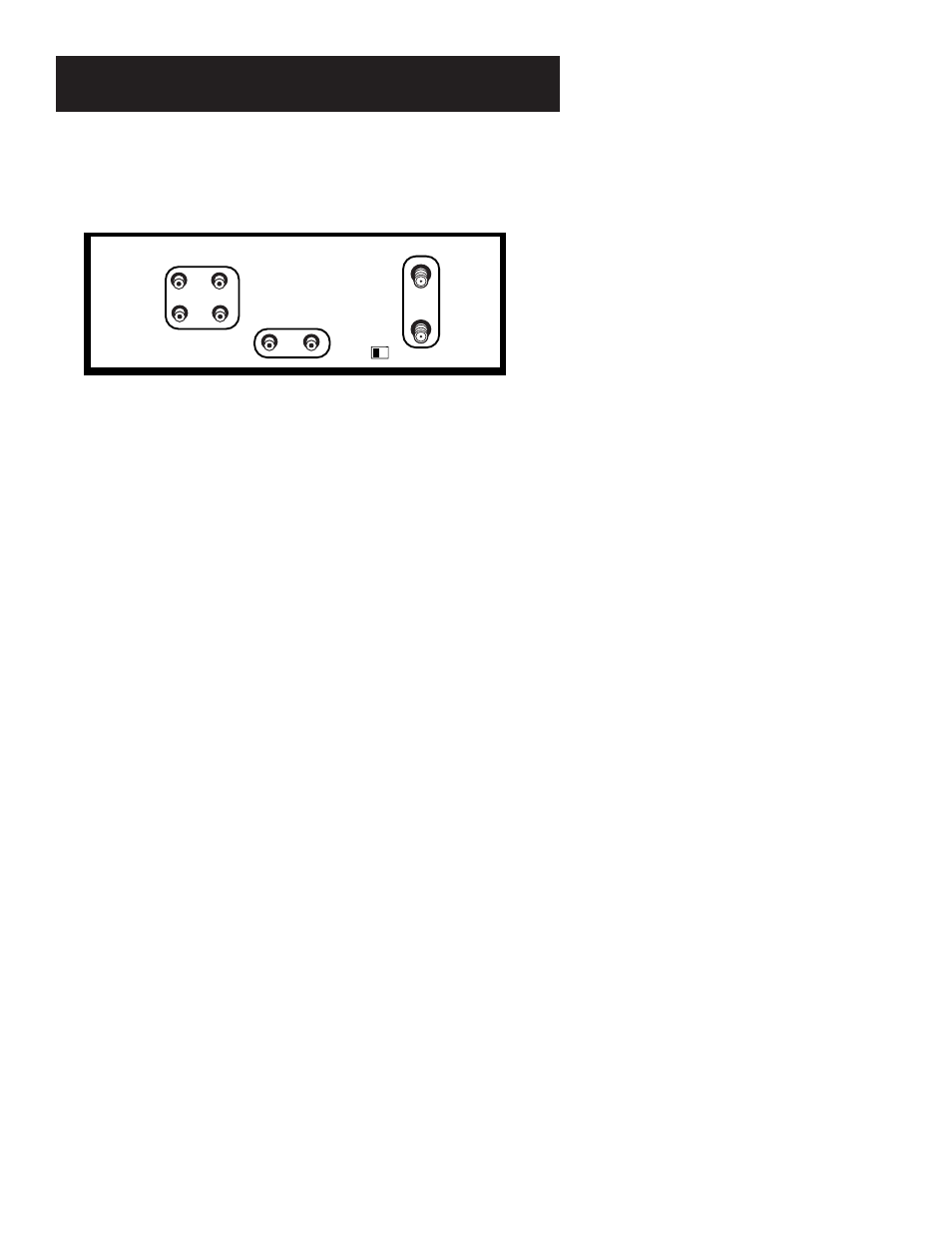

Back Panel
3CH4 Switch Selects the channel to which you will tune the TV
to see the VCR picture if you connect the VCR using one of the
basic hookups.
AUDIO (R and L MONO) and VIDEO IN Jacks Receives signals
from another component, like a VCR or camcor der, when it is
connected to these jacks. Use INPUT on the remote to select L1 to
record from these jacks.
AUDIO (R and L) and VIDEO OUT Jacks Sends signals from
VCR to another component, like a TV or VCR, when it is
connected to these jacks.
IN FROM ANTENNA Jack Receives a signal from an antenna or
cable system when attached.
OUT TO TELEVISION Jack Passes signal to TV using the cable
supplied.
