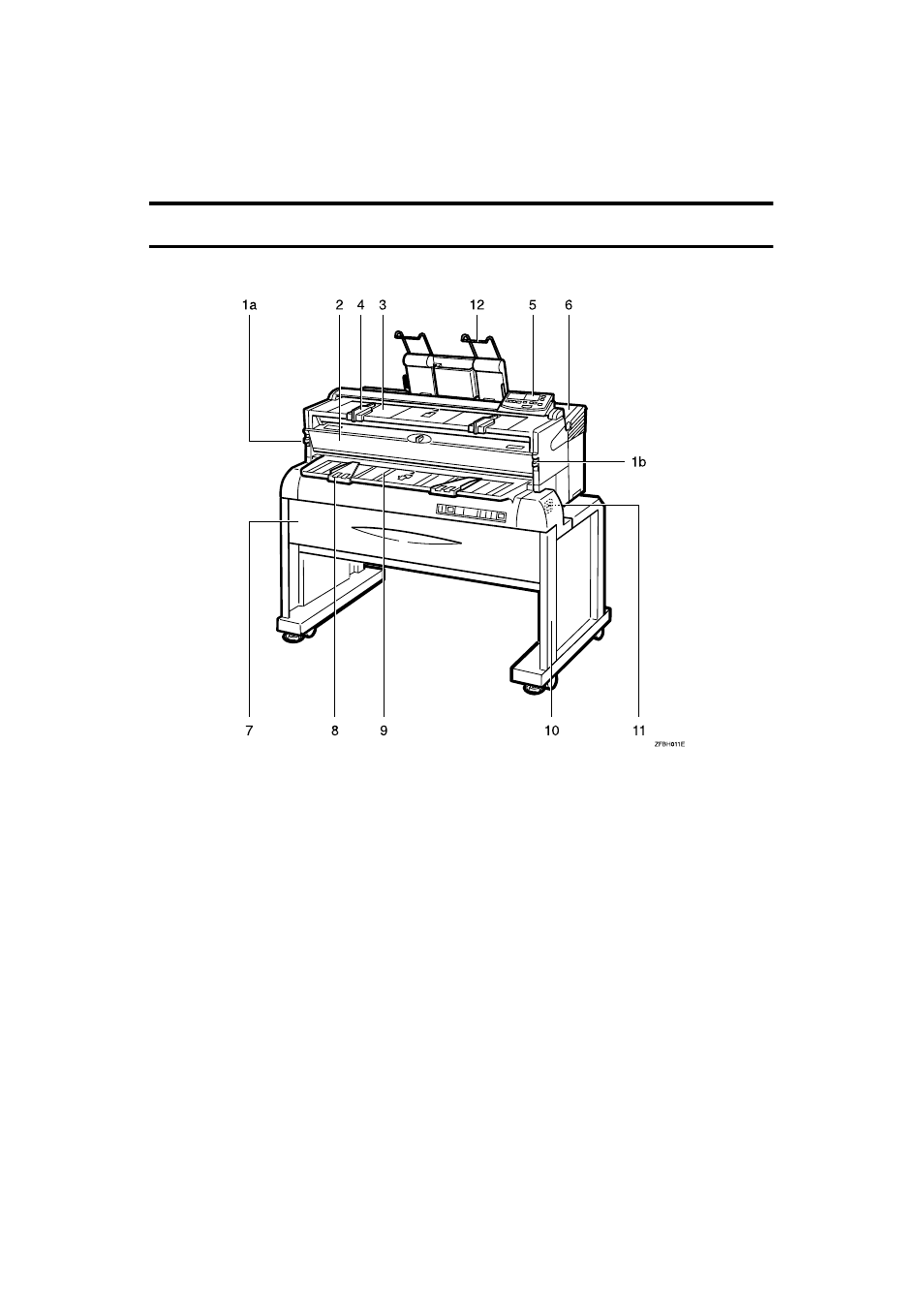

Guide to Components
Copier Exterior
1. Locks
Squeeze both locks(1a&1b) to open the
unit. Open the unit to empty the used
toner bottle and to remove jammed pa-
per.
2. Front Cover
Open the cover (and the unit) to access
the toner cartridge.
3. Original Table
Place your original face up here. If you
want to copy a stiff original that can't be
bent, use the rear table (see 6).
4. Original Guides
Use the guide to keep the original
straight as you feed the original into the
copier.
5. Operation Panel
⇒
P.3 “Operation Panel”.
6. Rear Table
Place stiff originals face down here.
7. Roll Feeder (option)
Feeds paper from a roll to the copier.
8. Paper Guides
Use the guides to keep the copy paper
straight as you feed it into the copier.
9. Bypass Table
Use this table when you want to make
copy one by one.
10. Table (option)
Holds your copier and the Roll Feeder.
