14 Regency ® E21-3 Gas Fireplace Insert

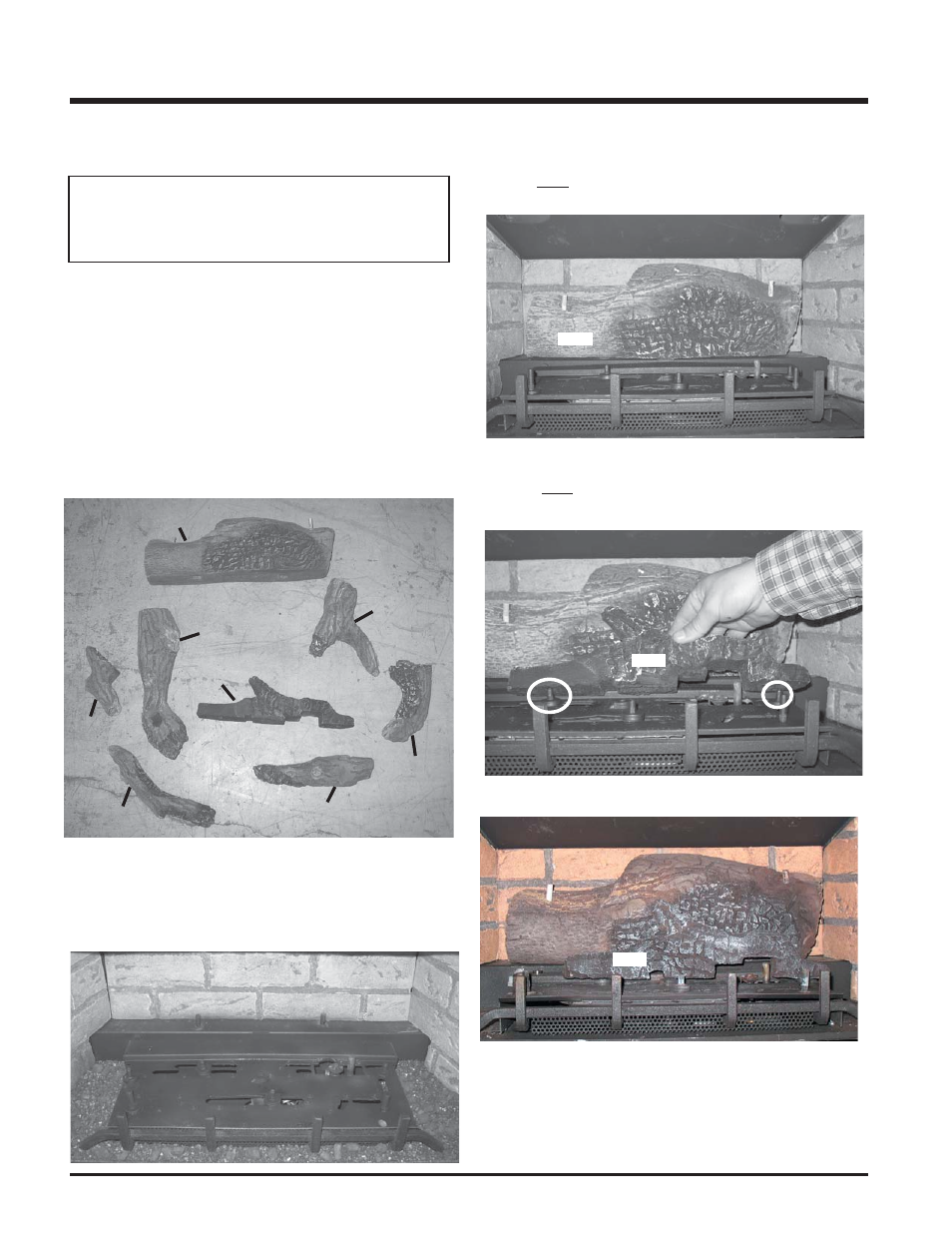

LOG SET INSTALLATION
Log kit (Part # 533-930) contains the following pieces:
a)
27-23 Back Center Log
b) 27-24 Middle Center Log
c) 27-25 Middle Right Log
d) 27-26 Front Right Log
e) 27-27 Center Front Log
f) 27-28 Middle Left Log
g) 27-29 Front Left Log
h) 27-30 Back Right Log
i) 902-156 Embers Lava
j) 902-153 Rock Wool
k) 902-179 Vermiculite
l) 946-669 Platinum Embers (supplied with packaged manual)
27-26
27-28
27-24
27-25
27-27
27-29
27-30
27-23
1) Carefully remove the logs from the box and unwrap them. The logs
are fragile, handle with care - do not force into position.
2) Spread vermiculite around the fi rebox base. Then take some embers
and spread them over the vermiculite as shown.
3) Fit log 27-23 into the pins on the back log tray.
4) Fit log 27-24 into the pins on the middle right hand side of the
burner.
27-23
27-24
27-24
Read the instructions below carefully and refer to the images.
Dangerous operating conditions may occur if the logs are not
positioned in their correct locations. If the logs are broken
do not use the unit until they are replaced. Broken logs can
interfere with the pilot operation.
INSTALLATION
