Chapter 1 9
Connections & Setup

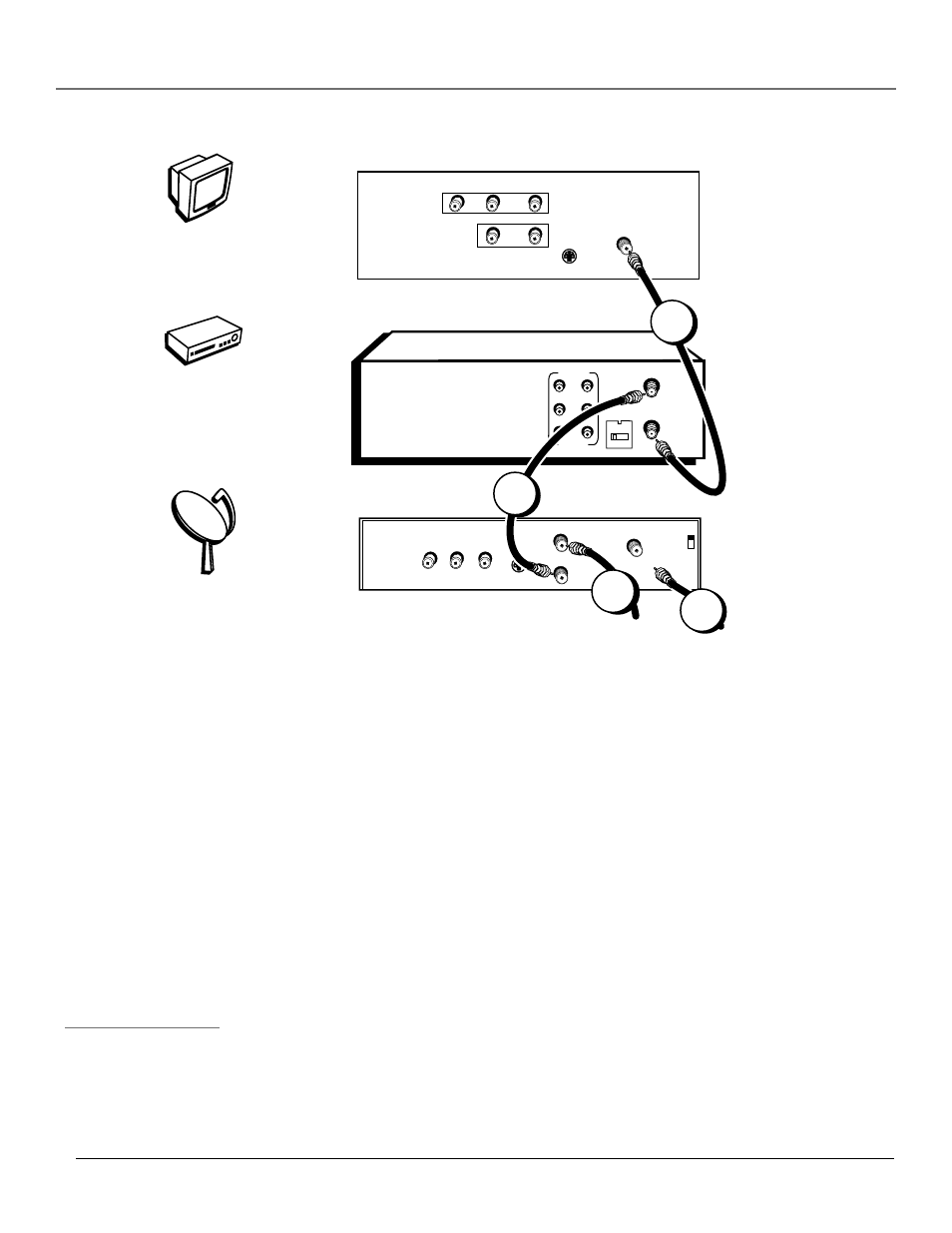

TV + VCR + Satellite Receiver
Note: Your television and/or satellite receiver back panels may not look
exactly like the models shown here.
1. Connect the VCR to the TV
Connect one end of the supplied RF coaxial cable to the RF OUT jack on the
back of the VCR and the other end to the TV’s antenna input jack.
2. Connect satellite receiver to the VCR
Connect one end of an RF coaxial cable (not included) to the antenna output
jack on the satellite receiver and the other end to the ANT. IN jack on the
VCR.
3. Connect the antenna to your satellite receiver
If necessary, connect an antenna or cable box RF coaxial cable (not included)
to the antenna input jack on the satellite receiver.
4. Connect the satellite feed to the satellite receiver
Connect the satellite receiver’s RF coaxial cable feed (not included) to the
satellite input jack on the satellite receiver.
Go To Page 11
Need Some Help?
If you prefer, we can
provide you with the
name of an Authorized
Service Representative
who will visit your home
for a fee to install your
electronic entertainment
system and to instruct you
in its operation. For
details about this service,
call 1-888-206-3359.
VCR
TV
Satellite
CABLE/
ANTENNA
VCR
TV
VIDEO
R L / MONO
S-VIDEO
AUDIO
L
IN
OUT
CH3
CH4
S-VIDEO
L R VIDEO
OUT
IN FROM ANT
OUT TO TV SATELLITE
IN
From
Satellite
From Cable
or TV Antenna
ANT. IN
RF OUT
CH.
VIDEO
AUDIO
OUT IN
R
L
3 4
SATELLITE
RECEIVER
1
4
3
2
