29

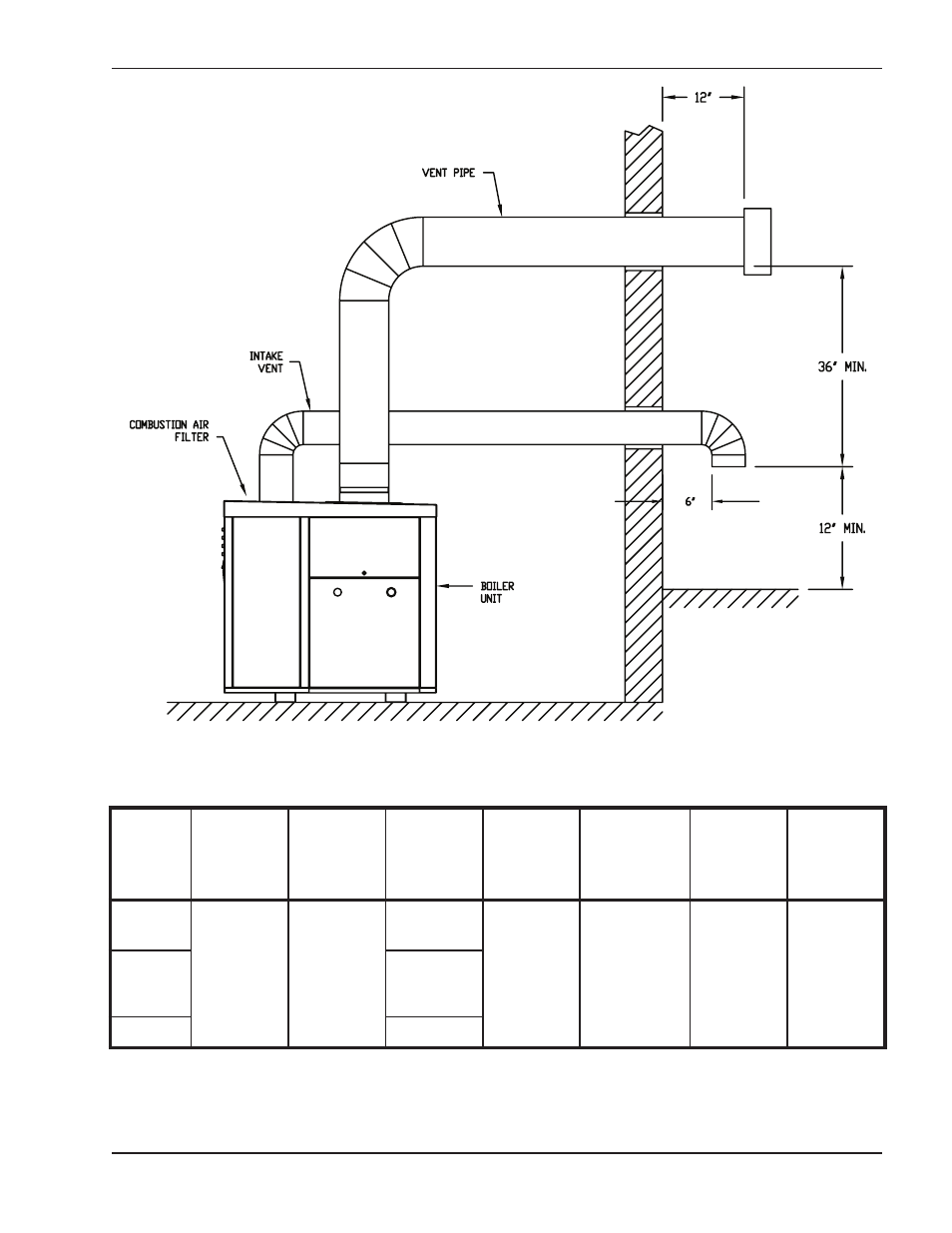

Fig. 20: Direct Vent Horizontal Thru-Wall Venting (Category III)

Model

No.

Appliance

Category

Certified

Venting

Material

Vent Size

(inches)

Max.

Venting

Length

(feet)

Combustion

Air Intake

Pipe

Material

Air Inlet

Size

(inches)

Max. Air

Intake

Length

(feet)

HD101
HD151

III

Stainless

Steel

(Gas Tight)

4

100,

4 Elbows

Max.

Galvanized

Steel

PVC

ABS

CPVC

4

100

HD201
HD251
HD301

5

HD401

6

Table L: Horizontal Thru-Wall Venting
