Page 9

Installation

4. Route the adapter’s cord through the

strain relief slot on the bottom of the
base.

5. Plug the adapter into a standard AC out-

let.

6. Lift the base’s antenna to a vertical posi-

tion.

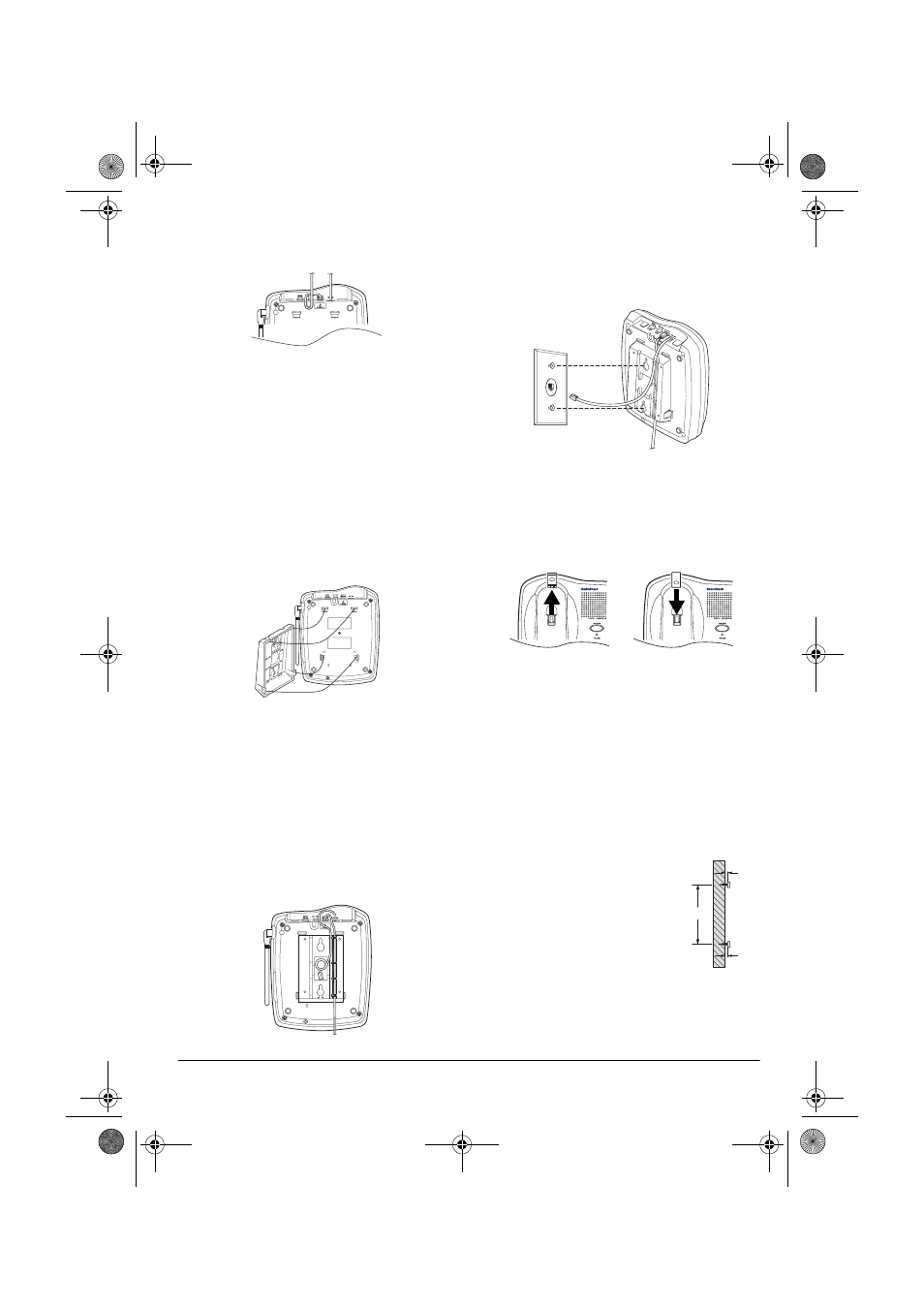

On a Wall Plate or Wall

1. Insert the two tabs at the top of the nar-

row end of the supplied bracket into the
base’s upper tab slots as shown, then
press down on the bracket’s latches and
insert them into the lower slots.

2. Plug one end of the supplied short mod-

ular cord into the

TEL

LINE

jack on the

back of the base as in “On a Desk Top”
on Page 8.

3. Insert the supplied AC adapter’s barrel

plug into the

DC IN 9V

jack as in “On a

Desk Top” on Page 8.

4. Route the adapter and modular cords

through the grooves on the bracket.

5. Plug the modular cord’s other end into

the wall plate jack, then align the
bracket’s keyhole slots with the wall
plate studs and slide the base down-
ward to secure it.

6. Plug the adapter into a standard AC out-

let.

7. Press and lift out the handset holder, flip

it over as shown, then snap it back into
place so it holds the handset.

8. Lift the base’s antenna to a vertical posi-

tion.

Note: To mount the telephone directly on a
wall, you need two screws (not supplied) with
heads that fit into the keyhole slots on the
bottom of the base. Follow the steps under
“On a Wall Plate or Wall,” then apply these
additional instructions for placement on a
wall.

1. Drill two holes 3

inches (100 mm) apart.
Then thread a screw
into each hole, letting
the heads extend about

inch (8 mm) from

the wall.

2. Plug one end of the supplied long modu-

lar cord into the

TEL

LINE

jack at the

back of the base.
