– 27 –
I
N
S
T
A
L
L
A
T
I
O
N
®
®

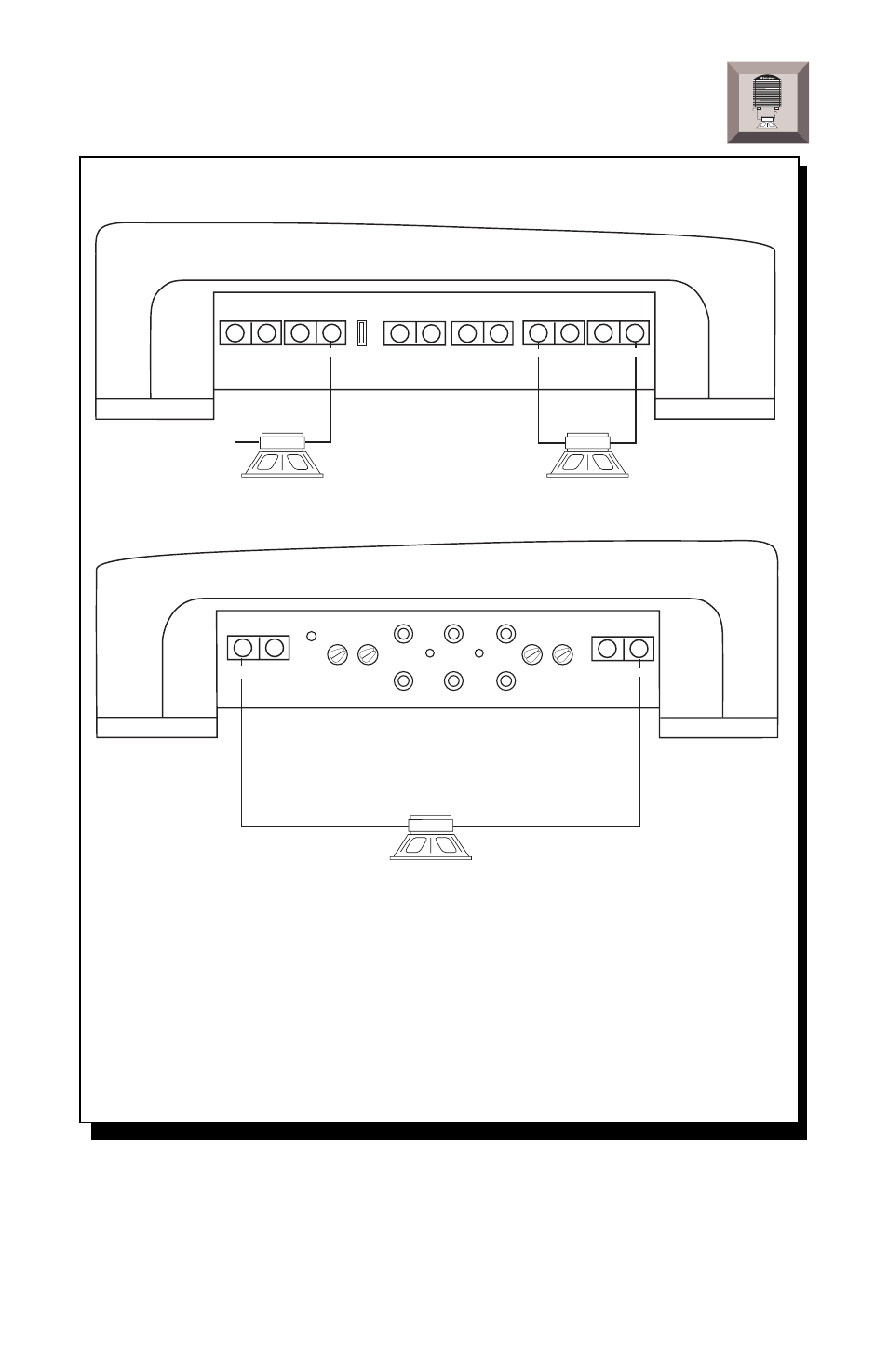

3-Channel Mono Operation
• Gain Control for channels A, B & C operate
independently
• Impedance Load for bridged channel A should be
4
Ω
minimum
• Impedance Load for bridged channel B should be
4
Ω
minimum
• Impedance Load for bridged channel C should be
4
Ω
minimum
• XCard A can be set for High-Pass, Low-Pass or Full Range
• XCard B can be set for 12dB High-Pass, 12dB Low-Pass or Full
Range
• XCard C can be set for High-Pass, Low-Pass or Full Range
Ch. A
Ch. A
Ch. B
Ch. B
REM
Dual B+
Dual GND
– L +
– R +
+ R –
–
+
4 ohm min.
+
–
LED
Ch. C
Bass EQ
Ch. C
Gain
Ch. C
Ch. B
Ch. A
Ch. B
Gain
Ch. A
Gain
L
R
L
R
L
R
Ch. C
Ch. C
+ R –
+ L –
4 ohm min.
+ L –
+
–
4 ohm min.
