Sing, Hase, Witch – Rockford Fosgate 360.6 User Manual
Page 19
U
SING
THE
P
HASE
S
WITCH

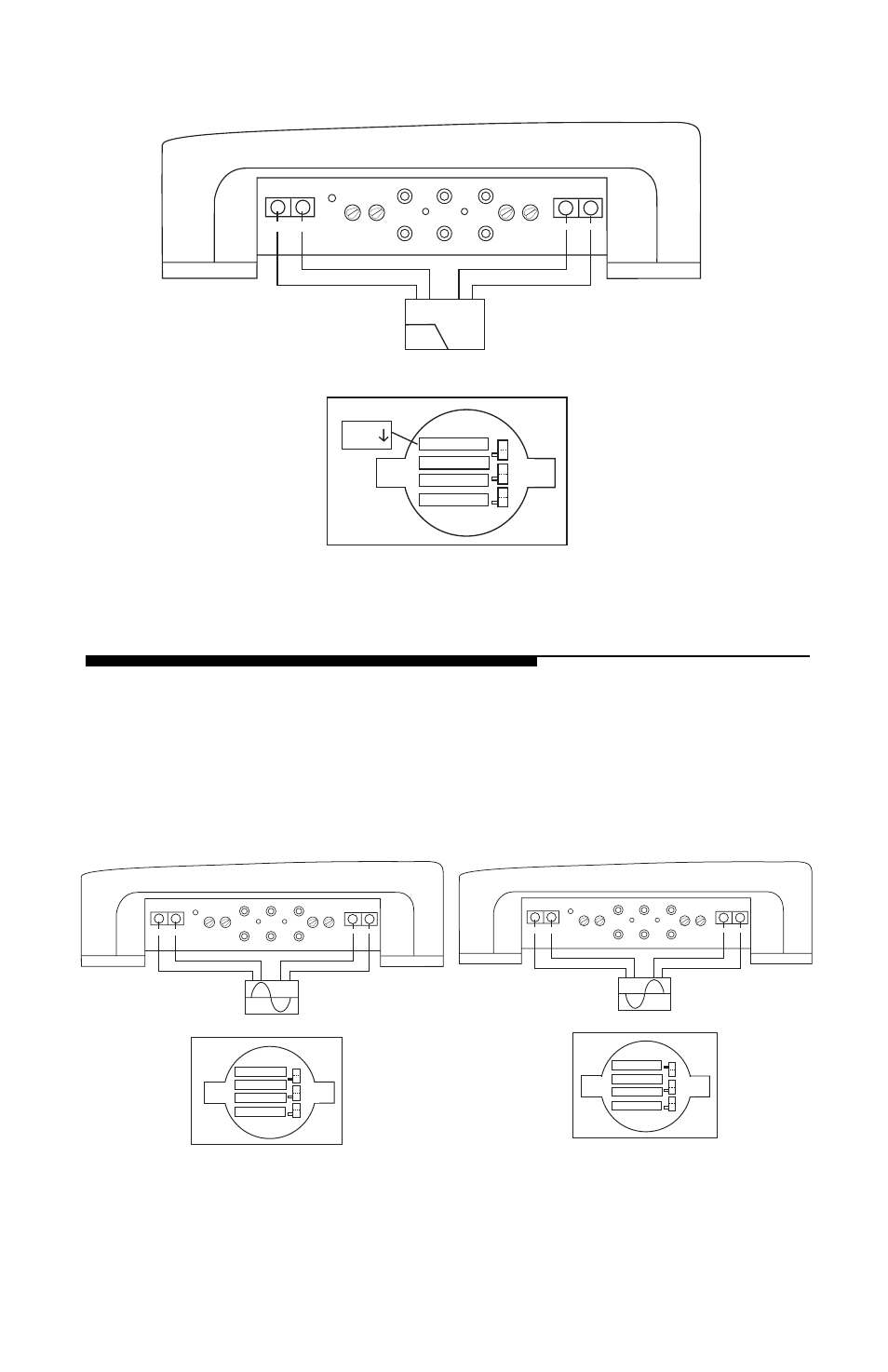

Vehicle interiors can cause acoustical irregularities with the system's
bass response. The Punch amplifier has a 0
°
/–180
°
phase switch that
allows both Channel C outputs to be inverted simultaneously. Since
woofers will typically be connected to Channel C, the system's bass
response can be improved by experimenting with the phase switch.
