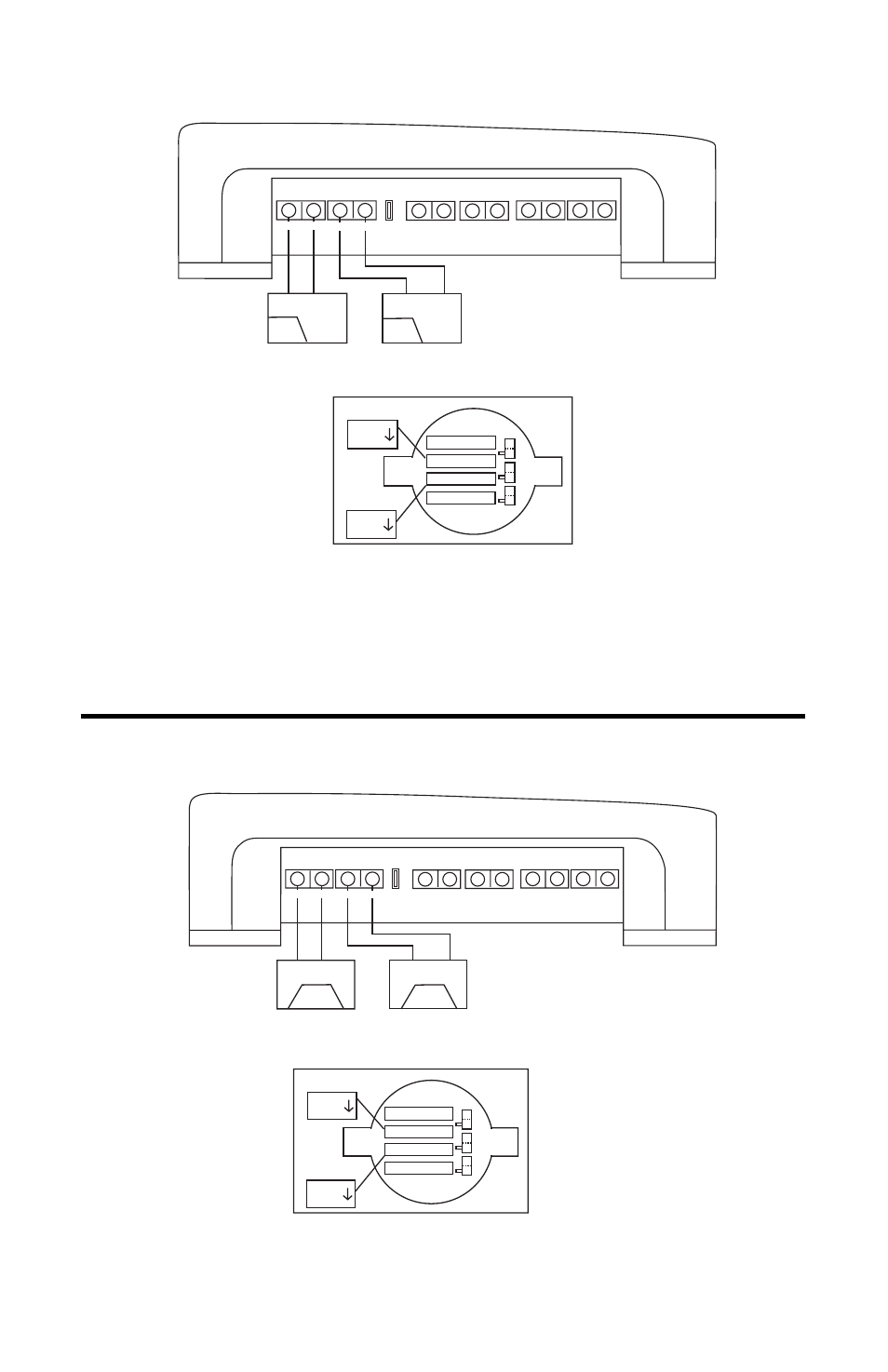

Configure a 24dB/octave filter for Channel B
• XCard B1 & B2 set identically to High-Pass or Low-Pass
Configure a 12dB/octave Bandpass filter for Channel B
• XCard B1 inserted as High-Pass
• XCard B2 inserted as Low-Pass
Ch. A Ch. A Ch. B
REM Dual GND Dual B+
Ch. B
20Hz-80Hz
24dB/octave LP
20Hz-80Hz
24dB/octave LP
+ L – + R – – L + – R +
LP
XCard B1
LP
XCard B2
0
° 180
°
XCard C
XCard B
XCard B
XCard A
Ch. A Ch. A Ch. B
REM Dual GND Dual B+
Ch. B
80Hz-4kHz
12dB/octave BP
80Hz-4kHz
12dB/octave BP
+ L – + R – – L + – R +
HP
XCard B1
LP
XCard B2
0
° 180
°
XCard C
XCard B
XCard B
XCard A
*
*Note: Both XCards must be customized to the same frequency for proper
24dB/octave operation. Refer to “Using the XCard” on page 12 for
altering the cutoff frequency.
