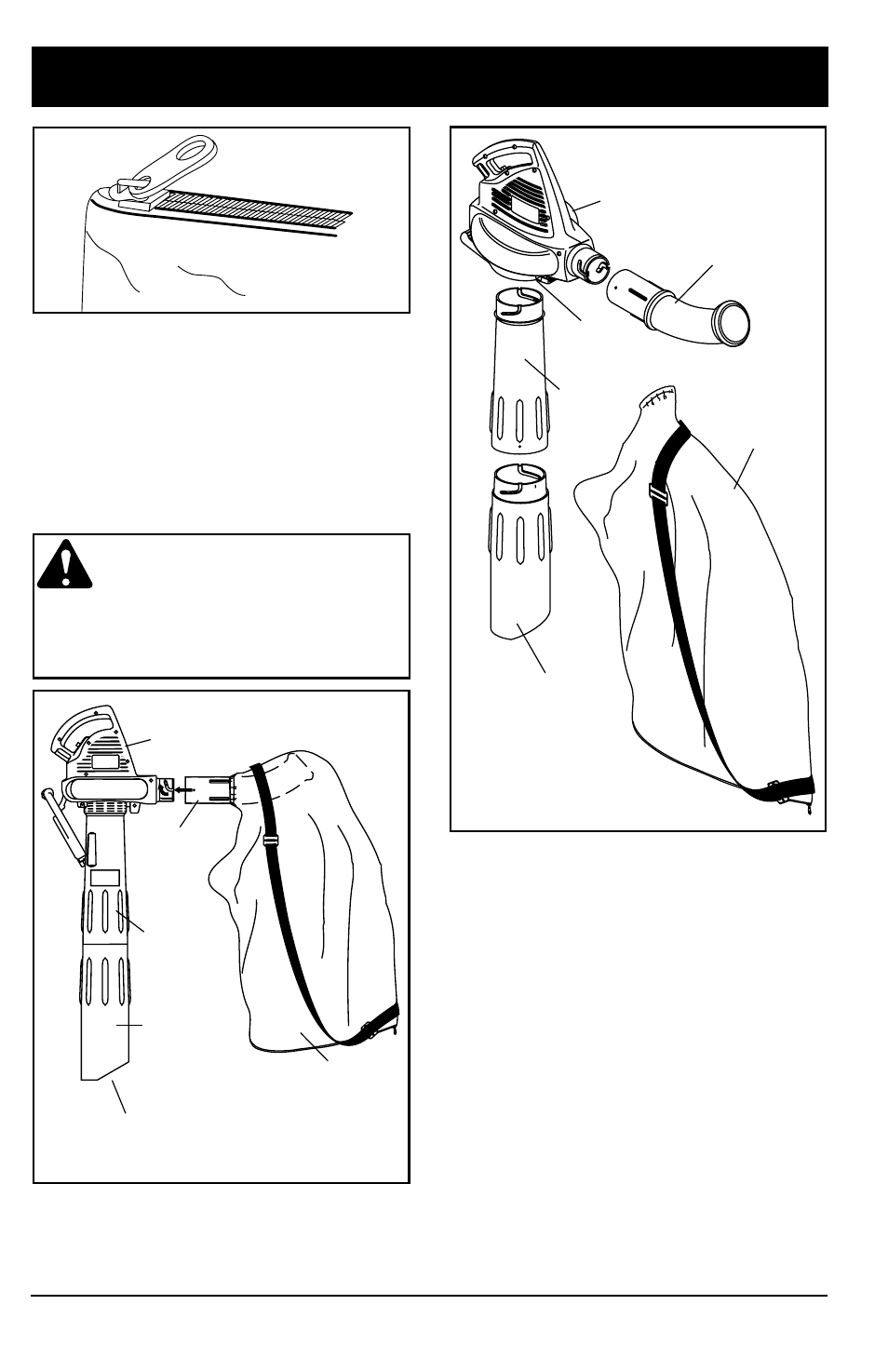

ASSEMBLY INSTRUCTIONS
8. Close the zipper on the bag (Fig. 11).
9. Align the vacuum bag/elbow tube assembly
with the grooves on the motor housing
(Figs. 12 and 13).
10. Install the vacuum bag/elbow tube
assembly onto the motor housing. Turn the
assembly clockwise until it locks (Fig. 12).
Fig. 11
Fig. 12
Fig. 13
WARNING: Vacuum bag assembly
must be used at all times during
vacuum mode to prevent personal injury
from objects being discharged from
blower outlet and to prevent overheating
of motor.
ASSEMBLY PARTS
FOR VACUUM MODE
ASSEMBLY - AS A VACUUM
VACUUM
BAG
VACUUM
BAG
LOWER
VACUUM
TUBE
NOTE: Make sure the angled
end of the vacuum tube
is facing the bag.
VACUUM
ELBOW
TUBE
LOWER
VACUUM
TUBE
UPPER
VACUUM
TUBE
VACUUM
DOOR
UPPER
VACUUM
TUBE
MOTOR
HOUSING
VACUUM
ELBOW
TUBE
MOTOR
HOUSING
