For any questions about operating or maintaining your product, call the Ryobi ® Help Line !
Your product has been fully tested prior to shipment to ensure your complete satisfaction.
Troubleshooting tips are also available in your operator’s manual.
Go to www.ryobitools.com and register your new tool on-line.
CALL
1-800-860-4050
www.ry
obitool
s.com
WARNING: This Engine Starting Procedure is not a substitute for reading
the operator’s manual. To reduce the risk of injury, user must read and understand
operator’s manual before using this product.

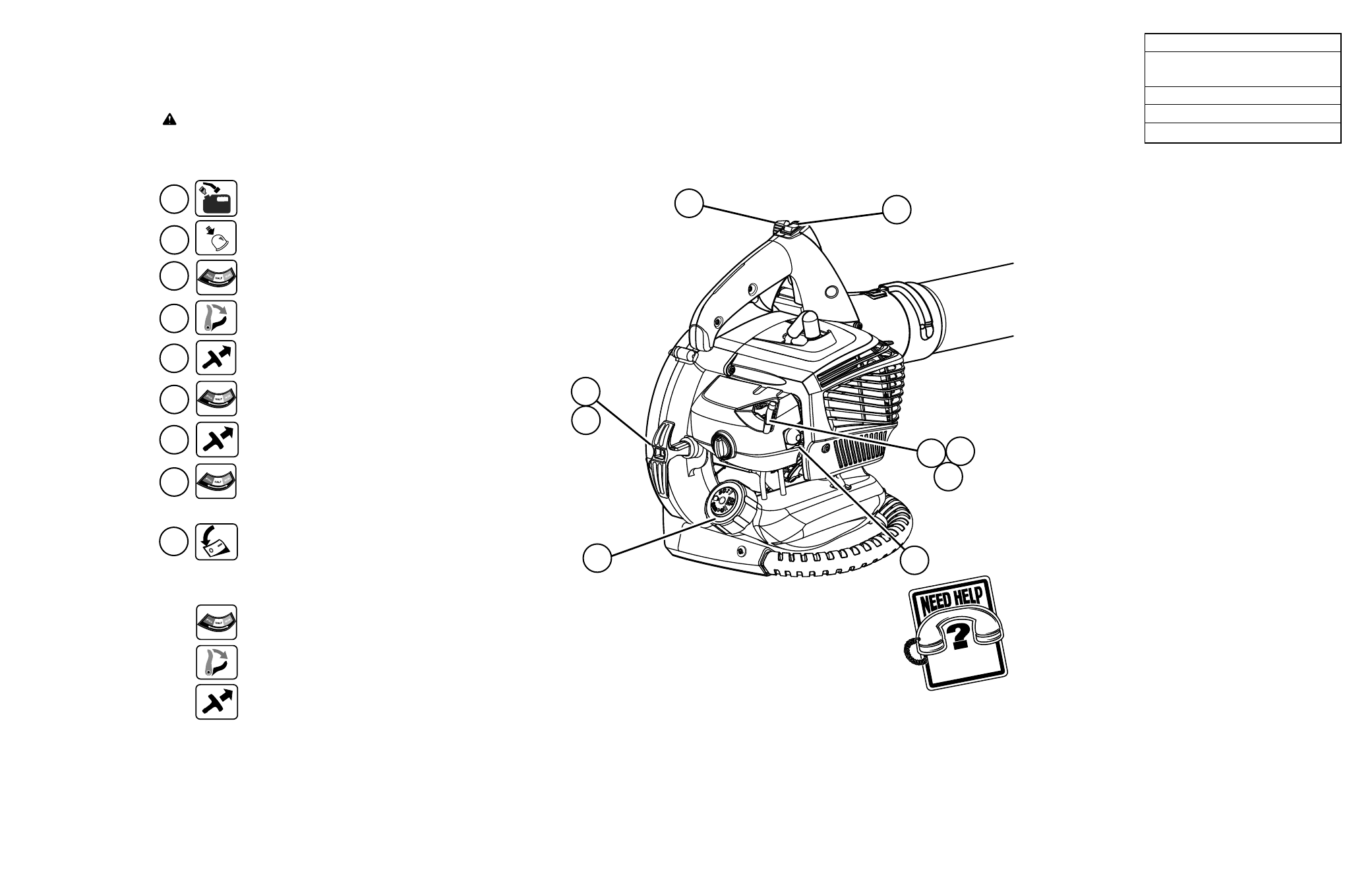

Slowly press the PRIMER BULB 10x or until fuel appears.
Pull starter grip and rope until engine attempts
to start (4X max.)
ENGINE STARTING PROCEDURE
TO START:
1
2
3
4
5
PRESS and HOLD stop switch until
engine stops.
TO STOP:
Lock throttle/cruise control lever.
SET choke lever to FULL choke.
6
SET choke lever to HALF choke.
Pull starter grip and rope until engine starts (6X max.)
NOTE: If the unit has not started, return to step 3.
7
8
Allow the engine to warm for 10 seconds,
SET choke lever to RUN.
TO RESTART A HOT ENGINE:
If the engine/unit is already hot:
Lock throttle/cruise control lever.
SET choke lever to RUN.
Pull starter grip and rope until engine starts.
9
2
4
1
3 6
8
5
7
9
50:1 Ratio = Mix 2.6 oz 2-cycle oil with
1 gallon of fresh gasoline in separate gas
container. SHAKE. Pour into fuel tank.
1 GALLON
GAS
2.6
oz.
