Raypak P-926 - Manual (Page 3)

12"
Minimum
12"
Minimum
4"
Minimum
HEA
TER
Sheet Metal
24 Gauge
IMPORTANT NOTICE
These instructions are intended for the use of qualified
personnel only, specifically trained and experienced in
the installation of this type of heating equipment and
related system components. Installation and service
personnel may be required by some states to be li-
censed. If your state is such, be sure your contractor
bears the appropriate license. Persons not qualified
shall not attempt to fix this equipment nor attempt
repairs according to these instructions.
WARNING:
Improper installation, adjustment, alteration, service
or maintenance may damage the equipment, create a
hazard resulting in asphyxiation, explosion or fire, and
will void the warranty.
CODE REQUIREMENTS
NOTE: The heater should not be located in an area
where possible water leakage will result in damage to
the area adjacent to the appliance or to the structure.
When such locations cannot be avoided, it is recom-
mended that a suitable drain pan, adequately drained,
be installed under the appliance. The pan must not
restrict combustion air flow.
Installation must be in accordance with local codes,
or, in the absence of local codes, with the latest editions
of the National Fuel Gas Code, ANSI Z223.1/NFPA 54,
and National Electrical Code, ANSI/NFPA 70.
BASE INSTALLATION
Do NOT use the shipping base crate as an installation
base.

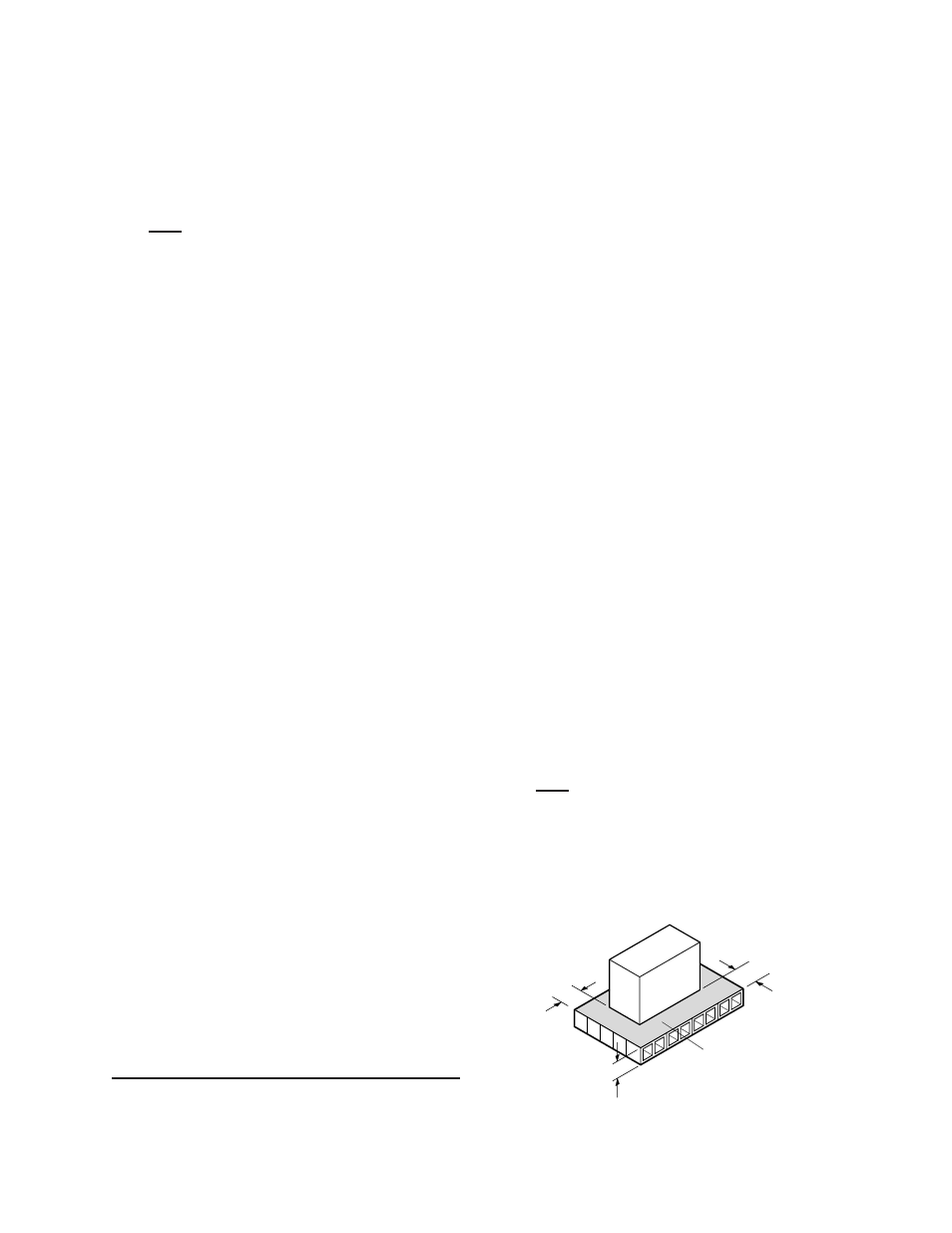

Heater must be mounted on a level base, such as
cement slab, cement blocks or other non-combustible
surface. An optional non-combustible base is available
for Indoor Heater 962 through 1826. An alternative
method for providing a base for combustible floors as
illustrated below. Heaters may not be installed on
carpeting.
Hollow concrete cinder block; align holes and leave
ends open. Alternative method for providing a non-com-
bustible base.
SECTION 1 / RECEIVING EQUIPMENT
On receipt of the equipment, visually check for external
damage to the carton or the shipping crate. If the carton
or shipping crate is damaged, make a note on the Bill of
Lading and report the damage to the Carrier immediately.
Remove the boiler from the carton or shipping crate.
Do NOT use the shipping base crate as an installation
base.
On occasion, we ship some items loose. Be sure that
you receive the number of packages indicated on the
Bill of Lading.
When ordering parts, you must specify Model and
Serial Number of boiler. When ordering under warranty
conditions, you must also specify date of installation.
Raypak recommends that this manual be reviewed
thoroughly before installing your Raypak Pool Heater. If
there are any questions which this manual does not
answer, please contact the factory or your local Raypak
representative.
Claims for shortages and damages must be filed with
carrier by consignee. Permission to return goods must
be factory authorized and are subject to a stocking
charge.
Purchased parts are subject to replacement only
under the manufacturer's warranty. Debits for defective
replacement parts will not be accepted and will be
replaced in kind only per our standard warranties.
SECTION 2 / GENERAL SPECIFICATIONS
Models 962, 1125, 1223, 1336, 1468, 1631, 1826 &
2100 through 4001 are specifically designed for indoor
installation only. Models 926, 1083, 1178, 1287, 1414,
1571 & 1758 are specifically designed for outdoor instal-
lation only. All heaters are standard with electronic
ignition for both natural and propane applications. Heat-
ers require 115V power supply. Control circuits operate
at 24V, to be supplied by a 115V to 24V transformer.
These heaters are design certified and tested under the
requirements of ANSI Z21.56 / CSA 4.7 American Na-
tional Standard for Gas-Fired Pool Heaters. Rated inputs
suitable for up to 2000 feet elevation. For elevations above
2000 feet, reduce input 4% for each 1000 feet above sea
level, as high elevation reduces combustion perfor-
mance.
SECTION 3 / INSTALLATION
INSTRUCTIONS
CALIFORNIA PROPOSITION 65 WARNING:
This product contains chemicals known to the State of
California to cause cancer, birth defects or other reproductive
harm.
3
Fig. #8148
