66
9. Press the SEL button.
Volumes Reset appears in the display window.
Audio Options Menu, Mic Gain
Mic Gain allows the user to adjust the mic gain level, in dB, and enable or disable mic gain on the keypanel.
By default, mic gain is set at 0dB. The mic gain can be configured from -20dB to 10dB.
To set the mic gain level, do the following:
1. On the KP 32 CLD keypad, press MENU.
The Top Level menu appears.
2. Using the 3( ↑) or 6(↓), select Audio Options.
3. Press the SEL button.
The Audio Options menu appears.
4. Using the 3( ↑) or 6(↓), select Mic Gain.
5. Press the SEL button.
Adjust and Level appears in the keypanel display.
6. Using the 3( ↑) or 6(↓), select Level.

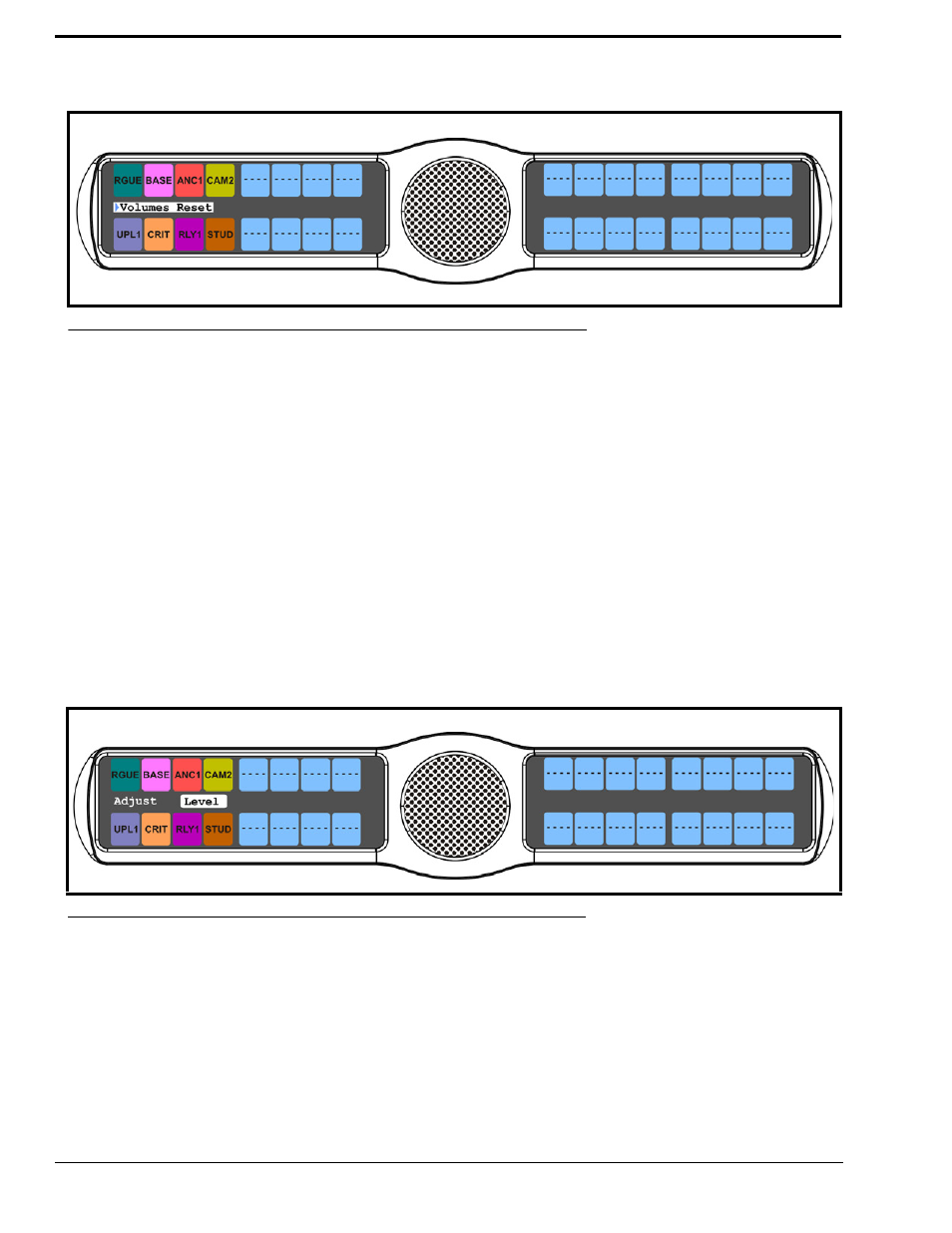

FIGURE 49. Key Volumes Reset
FIGURE 50. Audio Options - Mic Gain - Level Option
