RTS CLD Color Keypanel Family KP 32 CLD - Manual (Page 67)

61
7. Press the SEL button.
Front Hdst, Front Spkr, Preamp Out, Rear Hdst, Rear Spkr and To Matrix appear in the display window.
8. Using the 3( ↑) or 6(↓), select the Output you want to mix.
9. Press the SEL button.
Aux In 1, Aux In 2, Aux In 3, Aux In 4, Aux In 5, Aux In 6, and Matrix In appear in the display window.
10. Using the 3( ↑) or 6(↓), select the Input you want to mix.
11. Press the SEL button.

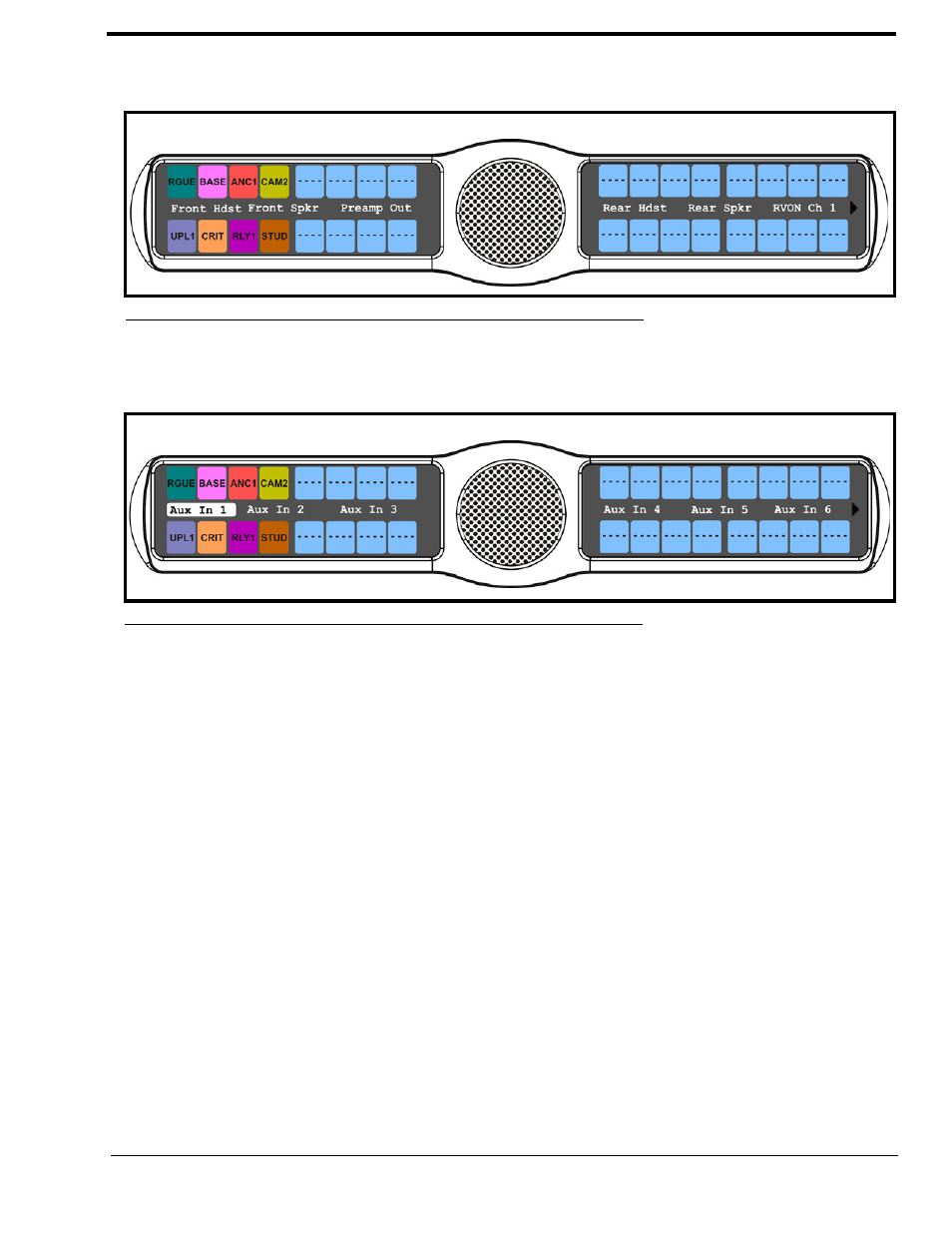

FIGURE 40. Audio Options Menu - Mixing Output Options
FIGURE 41. Audio Options Menu - Mixing Input Options
