8
6. Connect the phone cord(s) to the
modular phone line jack(s).
7. Lift the base’s antenna to a vertical
position.

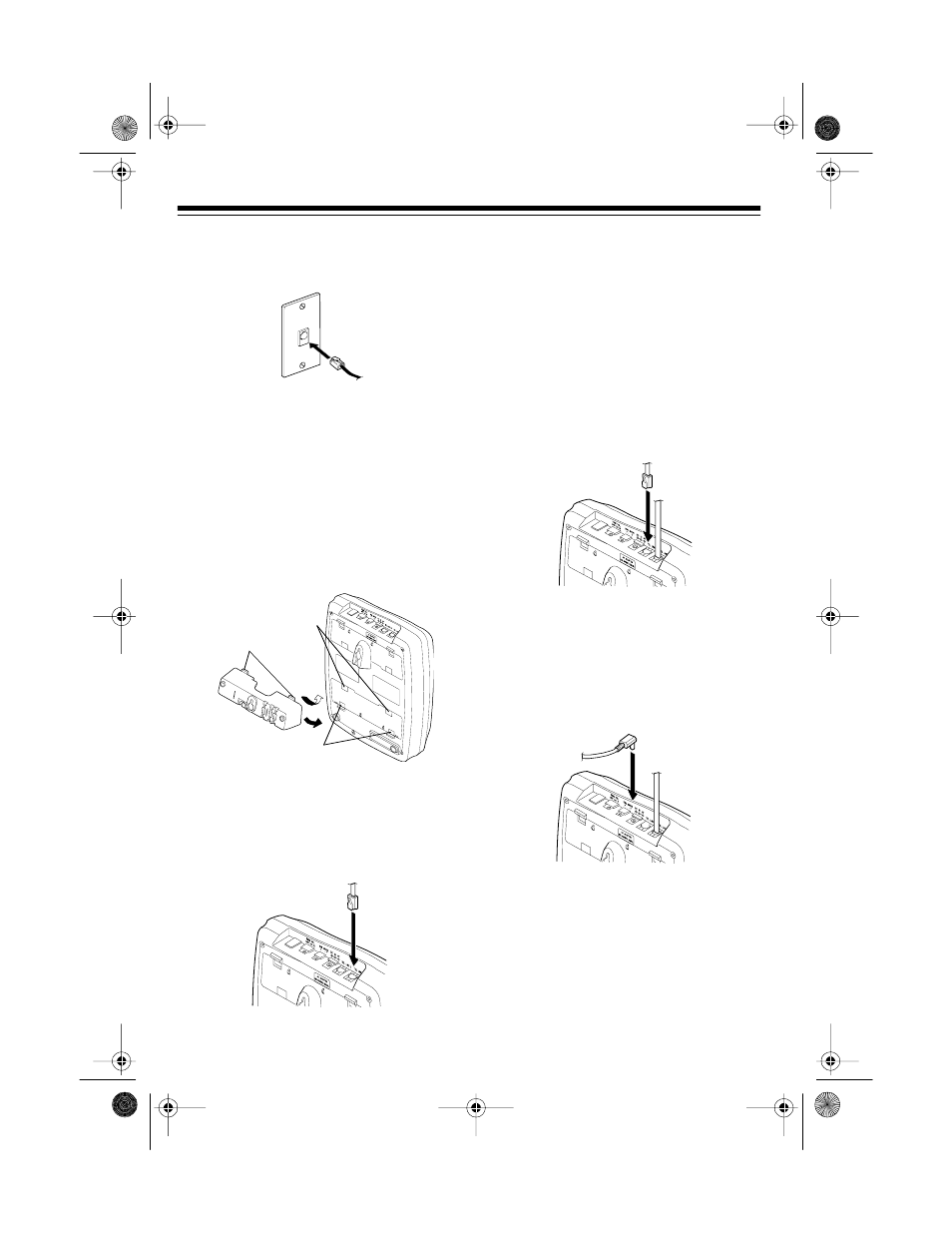

On a Wall Plate
1. Insert the bracket’s tabs into the
base’s lower tab slots as shown,
then press down on the bracket’s
clips and insert them into the clip
slots.
2. To connect the phone to a two-line
wall plate jack, plug one end of the
supplied short, two-line phone cord
into the
TEL LINE 1/2 jack on the
back of the phone.
Note: If you connect the phone to a
two-line phone jack with a two-line
cord, do not connect a cord to the
TEL LINE 2 jack or the phone might
not operate properly.
To connect the phone to a one-line
wall plate jack and another one-line
jack, plug one end of the supplied
short, two-line cord to the
TEL LINE
1/2 jack, and plug another cord (not
supplied) into the TEL LINE 2 jack.
To connect the phone to a single
one-line wall plate jack, plug one
end of the supplied cord into the
TEL
LINE 1/2 or TEL LINE 2 jack.
3. Insert the supplied AC adapter’s
barrel plug into the DC IN 9V jack.
Tabs
Lower Tab Slots
Clip Slots
