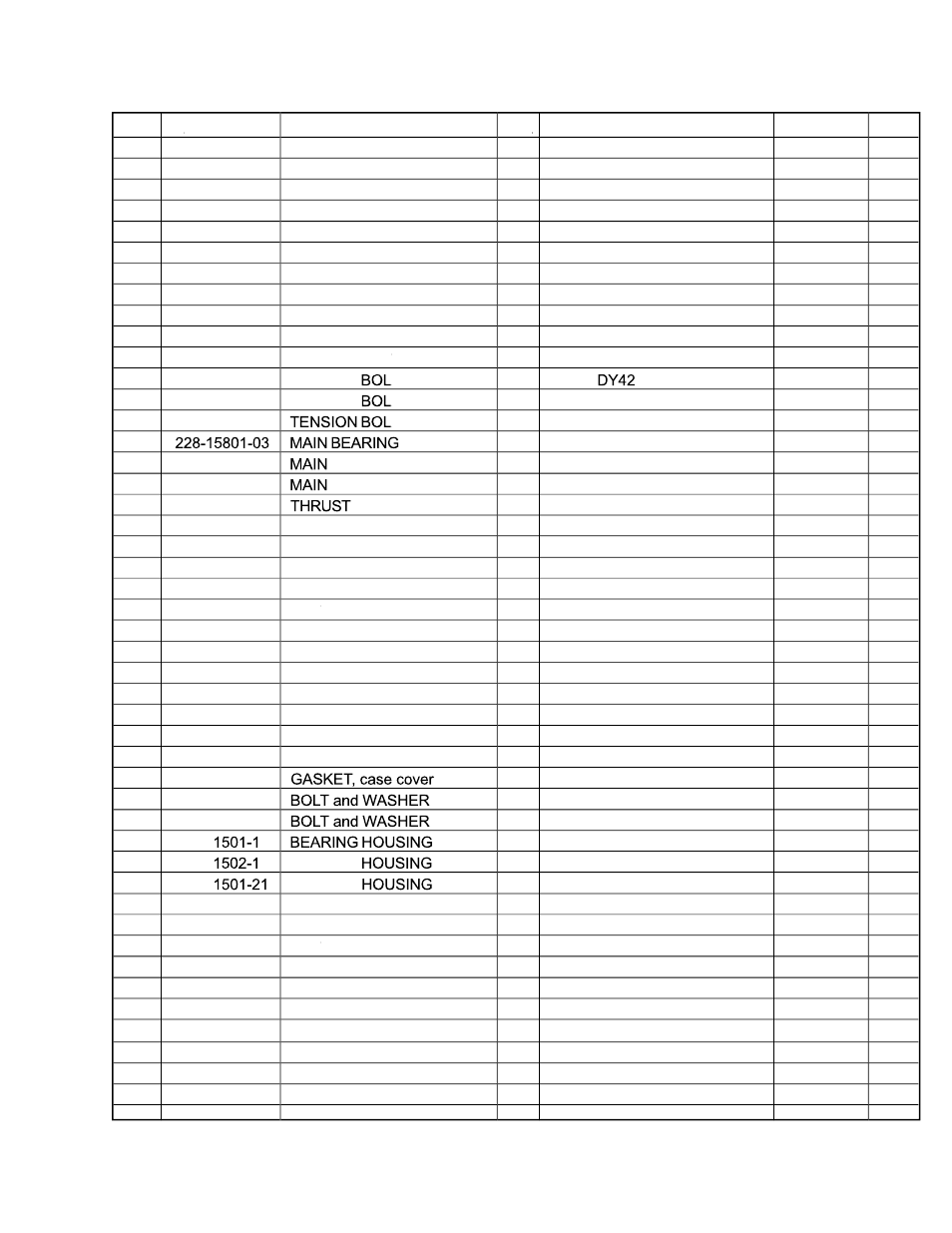

SECTION 1 CRANKCASE GROUP
REF. PART P P NO. DESCRIPTION QTY. QTY QTY REMARKS FROM-TO FIG.
10 228-10111-01 CRANKCASE CP 1 DY30 100
228-10115-01 CRANKCASE CP 1 DY30, Electric Start 100
10 229-10111-01 CRANKCASE CP 1 DY35 100
229-10115-01 CRANKCASE CP 1 DY35, Electric Start 100
10 231-10108-11 CRANKCASE CP 1 DY41 / DY42 100
231-10110-01 CRANKCASE CP 1 DY41 / DY42, Electric Start 100
50 005-26081-80 DOWEL PIN 4 100
51 228-15003-13 PIPE KNOCK 1 100
65 001-32083-51 STUD 3 100
134 010-50800-44 STUD 2 Electric Start 100
135 228-16001-11 TENSION BOLT BOL BOL 1 2 DY30 / DY35 100
231-16001-11 TENSION T T 1 2 DY41/ 100
155 228-16002-21 TENSION T T 2 2 DY30 / DY35 100
231-16002-11 T T 2 2 DY41 / DY42 100
165 1 STD. 100
228-15802-03 BEARING 1 0.25mm undersize 100
228-15803-03 BEARING 1 0.50mm undersize 100
166 228-15002-03 BEARING 1 100
167 005-19250-60 SPRING PIN 2 100
185 228-25002-03 SLEEVE, balancer 1 100
186 228-26001-01 BALANCER COVER CP 1 100
187 228-25004-03 GASKET, balancer cover 1 100
188 980-05060-10 BOLT BOL BOL and WASHER W AY 3 100
208 212-15008-13 BLIND PLUG 1 100
210 228-11701-11 GEAR CASE COVER CP 1 DY30 / DY35 100
231-11701-01 GEAR CASE COVER 1 DY41 / DY42 100
220 044-02200-50 OIL SEAL 1 100
230 060-03500-40 BALL BEARING 1 100
267 001-32064-50 STUD 2 100
290 228-15007-03 GASKET, case cover 1 DY30 / DY35 100
231-15033-03 1 DY41 / DY42 100
300 001-13088-50 AY 4 100
310 001-13086-50 AY 4 100
350 228-1 1 CP 1 DY30 / DY35 100
228-1 1 BEARING CP 1 DY30 / DY35, Electric Start 100
350 231-1 BEARING CP 1 DY41 / DY42 100
231-11502-21 BEARING HOUSING CP 1 DY41 / DY42, Electric Start 100
351 044-04000-20 OIL SEAL 1 100
352 001-13082-00 BOLT BOL BOL and WASHER W AY 7 100
355 228-15004-03 GASKET, T= 0.1 1 Select one piece only, DY30/35 100
228-15005-03 GASKET, T= 0.2 1 Select one piece only, DY30-35 100
228-15006-03 GASKET, T= 0.3 1 Select one piece only, DY30/35 100
DY30/DY35 & DY41/DY42 - 7 - '00-07
