13
Using an AV Amplifier with built-in digital surround
If you are using an Amplifier with a built-in digital surround sound as follows, you can enjoy the various audio
systems including Dolby Digital Surround audio that sounds just like the movie.

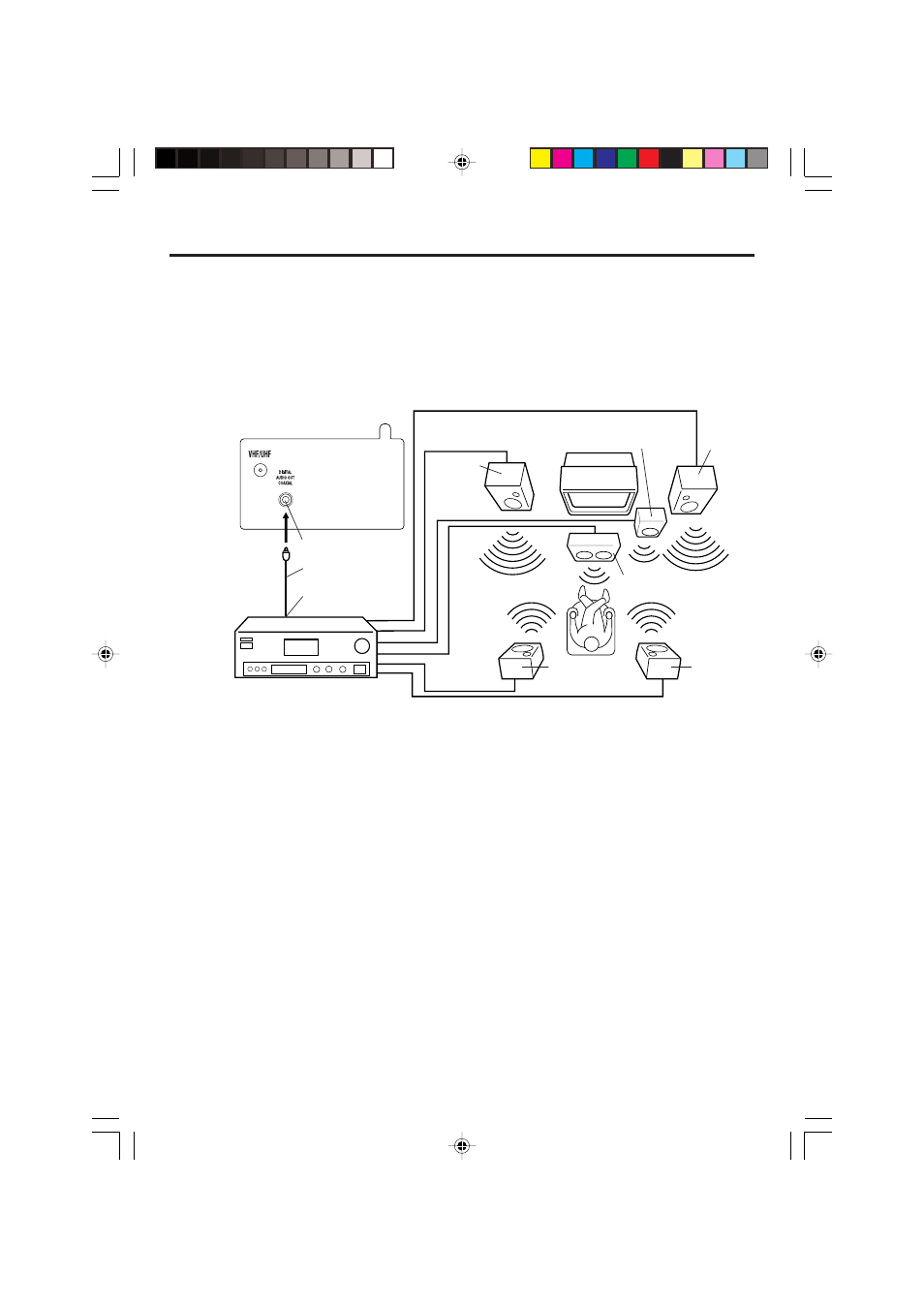

Connect an AV amplifier with built-in Dolby Digital decoder, MPEG decoder or etc as shown below.
*
Connections to other equipment
The exact arrangement you use to interconnect various video and audio components to the unit is dependent
on the model and features of each component. Check the Owner's Manual provided with each component for
the location of video and audio inputs and outputs.
NOTES:
• When you make the connection above, on the AV Amplifier, do not set DOLBY DIGITAL to DOLBY DIGITAL, or
MPEG to MPEG “ON”. If you do, a loud noise will emit from the speakers possibly causing damage to your
hearing or to the speakers.
• This unit does not apply to DTS audio out. There will be no sound output if connected to AV amplifier with built-
in DTS decoder.
Coaxial digital cord
(not supplied)
AV Amplifier with built-in digital surround
decoder as listed above
Center Speaker
Front
Speaker
(Left)
Front
Speaker
(Right)
Subwoofer
Surround
Speaker (Left) Surround
Speaker
(Right)
Coaxial Digital Audio
Output
To Coaxial Digital
Audio Input
Rear of the unit
unit
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby
Laboratories.
