Final Installation 29
Leveling Front-to-Back
1. Loosen the two bolts securing the mast to the mounting foot so
the mast moves freely.

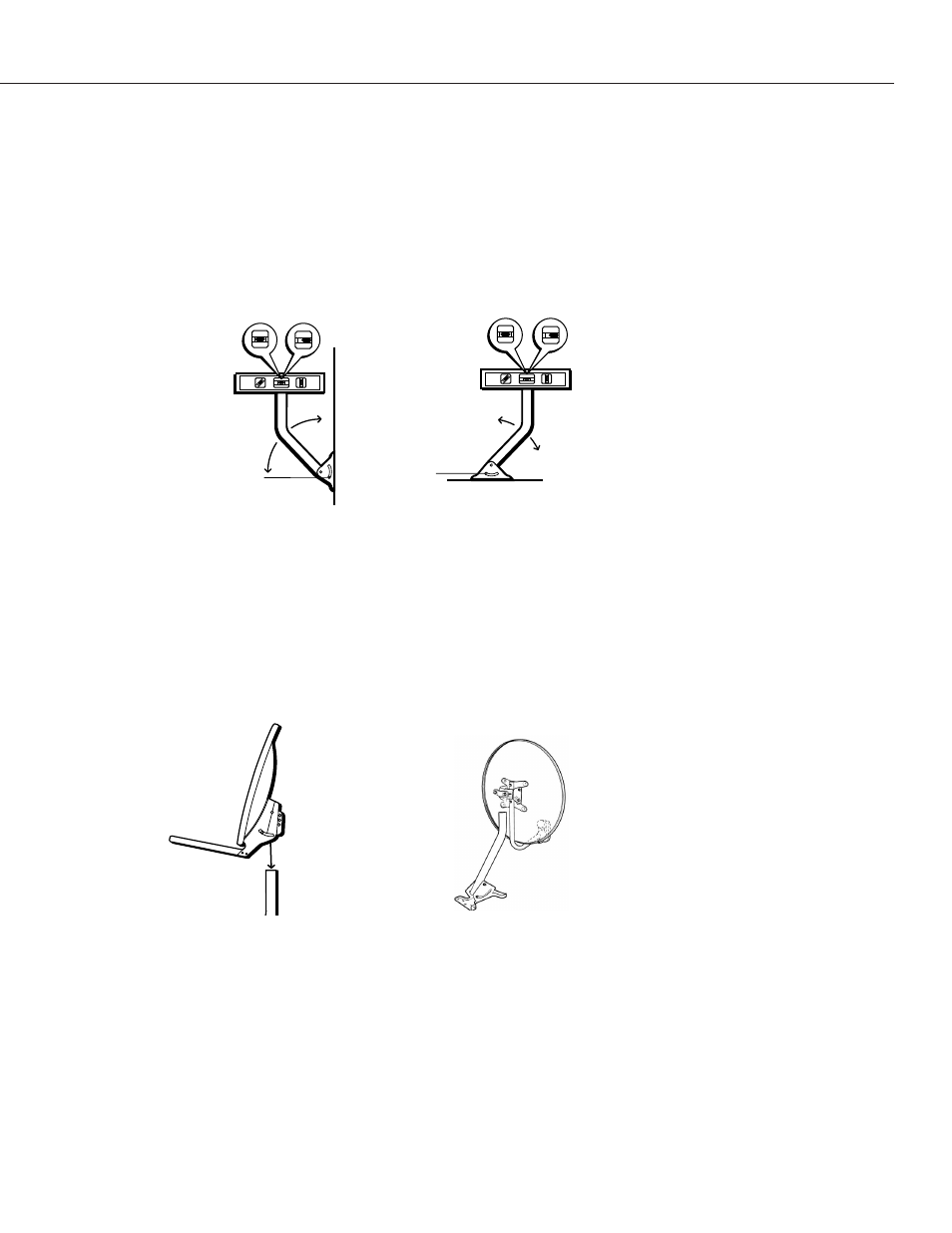

2. Place a bubble level on the mast as shown in the figure. Move the
mast so the bubble is centered in the level’s window.
Rotate mast as needed
Adjustment
Level Not Level
Rotate mast as needed
Adjustment
Level Not Level
3. Tighten the two bolts securing the mast to the mounting foot.
2. Find the length of RG-6 coaxial cable with messenger (ground)
wire that will extend from the satellite dish to the cable’s point of
entry into the building.
If your total RG-6 coaxial cable length from the dish to the receiver
is more than 112 feet, you may need an additional installation
component, such as a line amplifier, to compensate for the longer
cable length.
Final Dish Assembly
1. Place the dish-LNB arm assembly on top of the mast (or pole).
Final Dish Assembly
Step 2: Verify that the mast is level front-to-back.
Step 1: Place the dish assembly
on the mast or pole
Loosen the mast clamp and lower
reflector onto the mast. Tighten the
clamp screws. Sony Step 1:
