11. Complete the installation of the discharge tube.
12. Open the extractable drawer (Fig.6) and apply the
aesthetic Q mask (if supplied) with two screws from the
inside of the hood (Fig, 7).
13. Re-install the grease filters, connect the cooker hood to
the electrical mains and check the perfect operation.
Description of the hood
Fig. 8
1 Control panel
2 Grease filter (1 or 2 depending on the model in
possession)
3 Grease filter release handle
4 Lighting
5 Vapour screen (extractable), according to the model
available, which may be in metal, glass or provided with
grease filter.
6 Aesthetic mask (Available on the basis of the model in
possession).
7 Spacer (Available on the basis of the model in
possession).
8 Wall cabinet (not supplied, the cabinet illustration is
included to explain the type of installation).
Operation
The hood is fitted with a control panel with aspiration speed
selection control and a light switch to control cooking area
lights.
Use the high suction speed in cases of concentrated kitchen
vapours. It is recommended that the cooker hood suction is
switched on for 5 minutes prior to cooking and to leave in
operation during cooking and for another 15 minutes
approximately after terminating cooking.

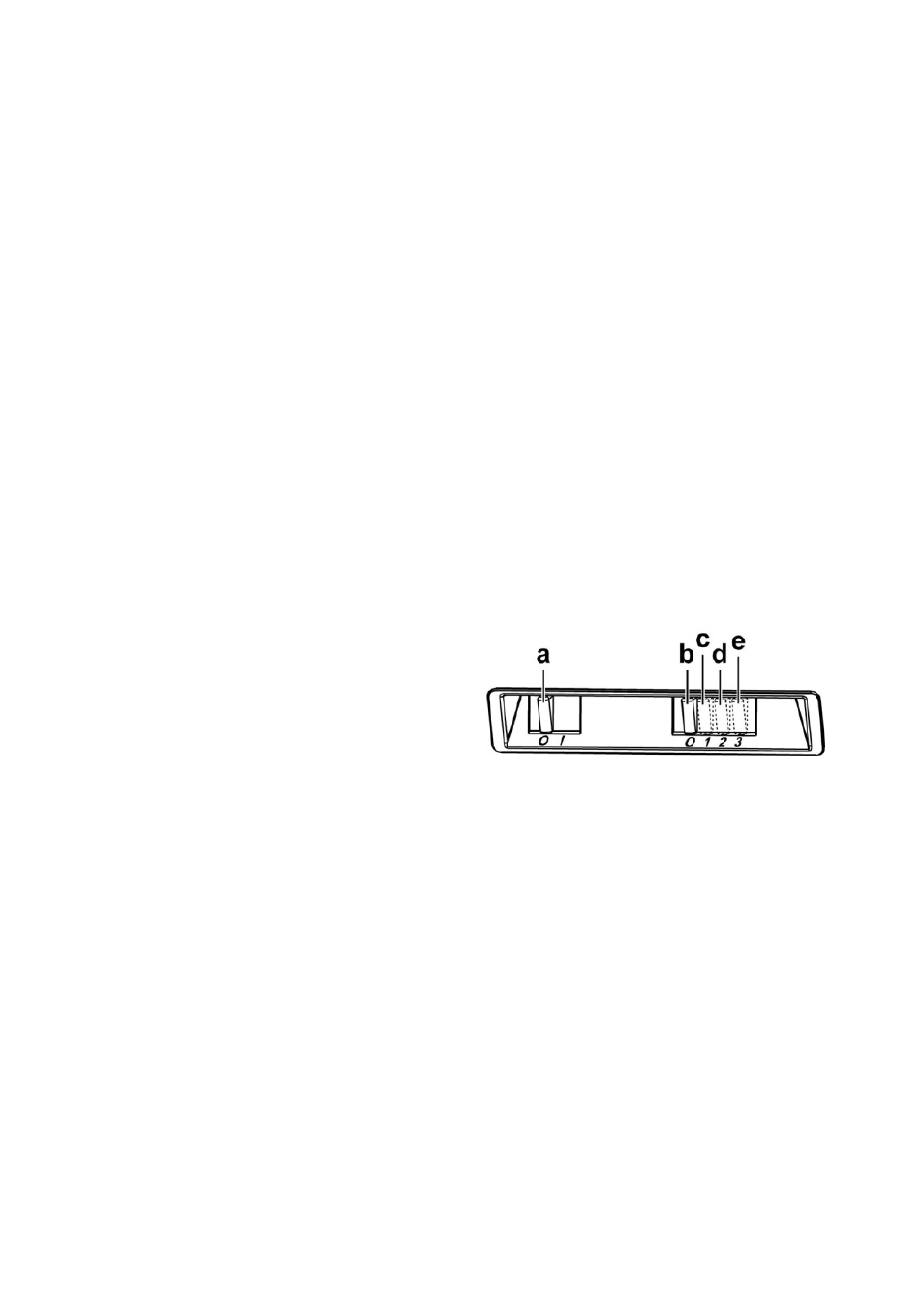

a. ON/OFF lighting
b. OFF motors
c. - d. - e. Minimum suction power (c.), medium (d.),
maximum (e.).
