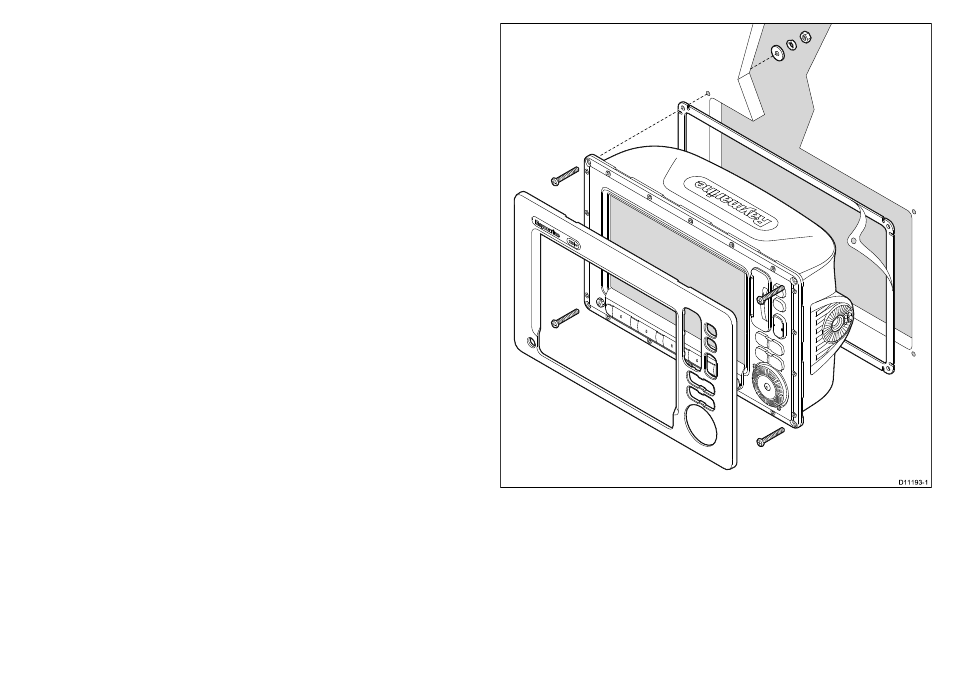

4.2 Flush mounting
The standard method for mounting a C-Series display is a flush
or panel mounting arrangement.
Before mounting the unit, ensure that you have:
• Selected a suitable location
• Identified the cable connections and route that the cables will take
• Detached the front bezel
D11193-1
1. Check the selected location for the unit. A clear, flat area with
suitable clearance behind the panel, is required.
2. Fix the appropriate cutting template supplied with the product, to
the selected location, using masking or self-adhesive tape.
3. Using a suitable hole saw (the size is indicated on the template),
make a pilot hole in each corner of the cut-out area.
4. Using a suitable saw, cut along the inside edge of the cut-out line.
