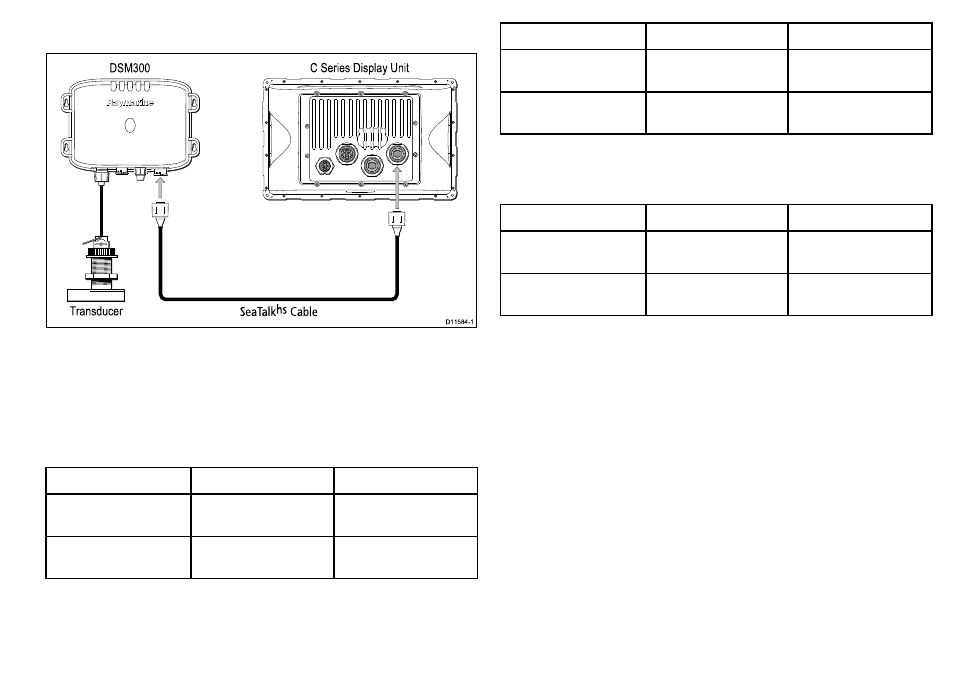

Typical DSM system
Transducer
DSM300
D11584-1
C Series Display Unit
SeaTalkhs Cable
Sonar cable
Connect the DSM unit directly to your display, or connect via the
SeaTalk
hs
switch.
SeaTalk
hs
network cables
Connect from the SeaTalk
hs
switch into the rear of the display.
Cable
Part number
Notes
1.5 m (4.9 ft) SeaTalk
hs
network cable
E55049
5 m (16.4 ft) SeaTalk
hs
network cable
E55050
Cable
Part number
Notes
10 m (32.8 ft) SeaTalk
hs
network cable
E55051
20 m (65.6 ft) SeaTalk
hs
network cable
E55052
Fully waterproof SeaTalk
hs
network cables
Connect directly from DSM to the rear of the display.
Cable
Part number
Notes
1.5 m (4.9 ft) SeaTalk
hs
network cable.
A62245
Cable has waterproof
connectors at both ends.
10 m (32.8 ft) SeaTalk
hs
network cable
A62246
Cable has waterproof
connectors at both ends.
