3.11 SeaTalk ng connections
The C-Series Widescreen Display can connect as part of a
SeaTalk
ng network.
The C-Series can use SeaTalk ng to communicate with:
• SeaTalk ng instruments (e.g. ST70)
• SeaTalk ng autopilots (e.g. ST70 with SmartPilot SPX course
computer)

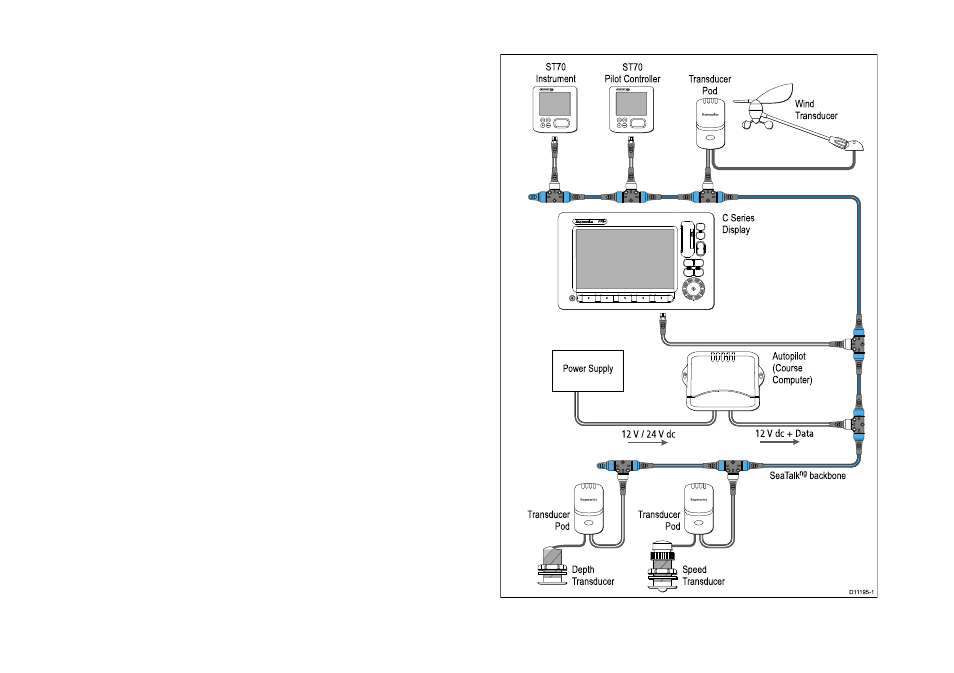

Typical SeaTalk ng system
C Series
Display
Depth
Transducer Speed
Transducer
Wind
Transducer
Transducer
Pod
Transducer
Pod
ST70
Instrument
ST70
Pilot Controller
Transducer
Pod
Autopilot
(Course
Computer)
12 V / 24 V dc 12 V dc + Data
D11195-1
ENTER CANCEL
MENU
ENTER CANCEL
MENU
Power Supply
SeaTalk ng backbone
Cables and connections 37
