General Information

Table A: Basic Data

6

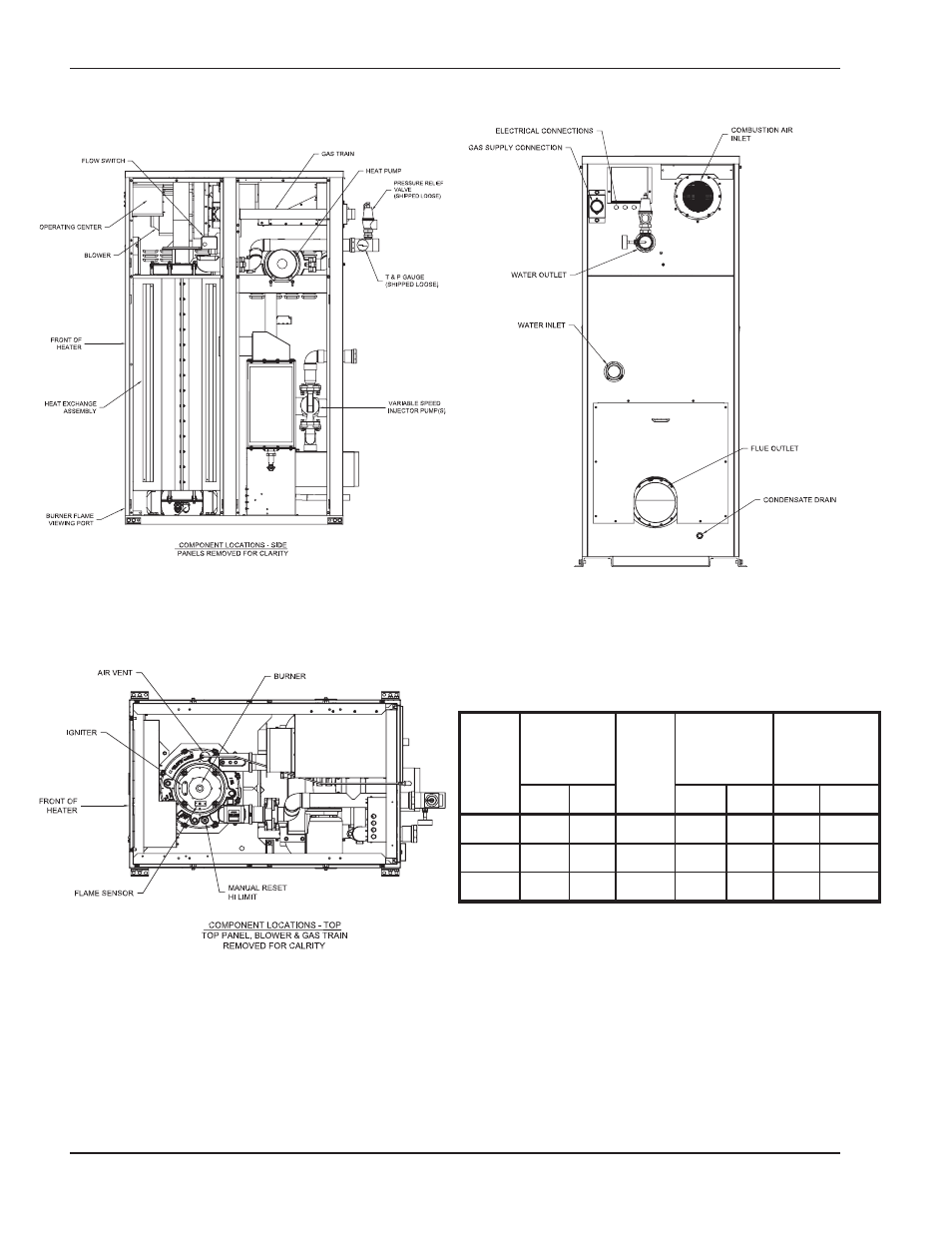

Component Locations

Fig. 1: Component Locations – Right Side

Fig. 2: Component Locations – Top

Fig. 3: Component Locations – Rear

Model

No.

MBTUH

Input

Water

Conn.

(NPT)

Gas

Conn.

(NPT)

Vent Size

(in.)

Max.

Min.

N

P

Flue Intake

1005

999

250

2-1/2

1-1/4

1

6

6

1505

1500

375

2-1/2

1-1/4

1

8

8

2005

1999

500

2-1/2

2

1

8

8
