10 Regency Bellavista™ B36X Gas Fireplace
INSTALLATION

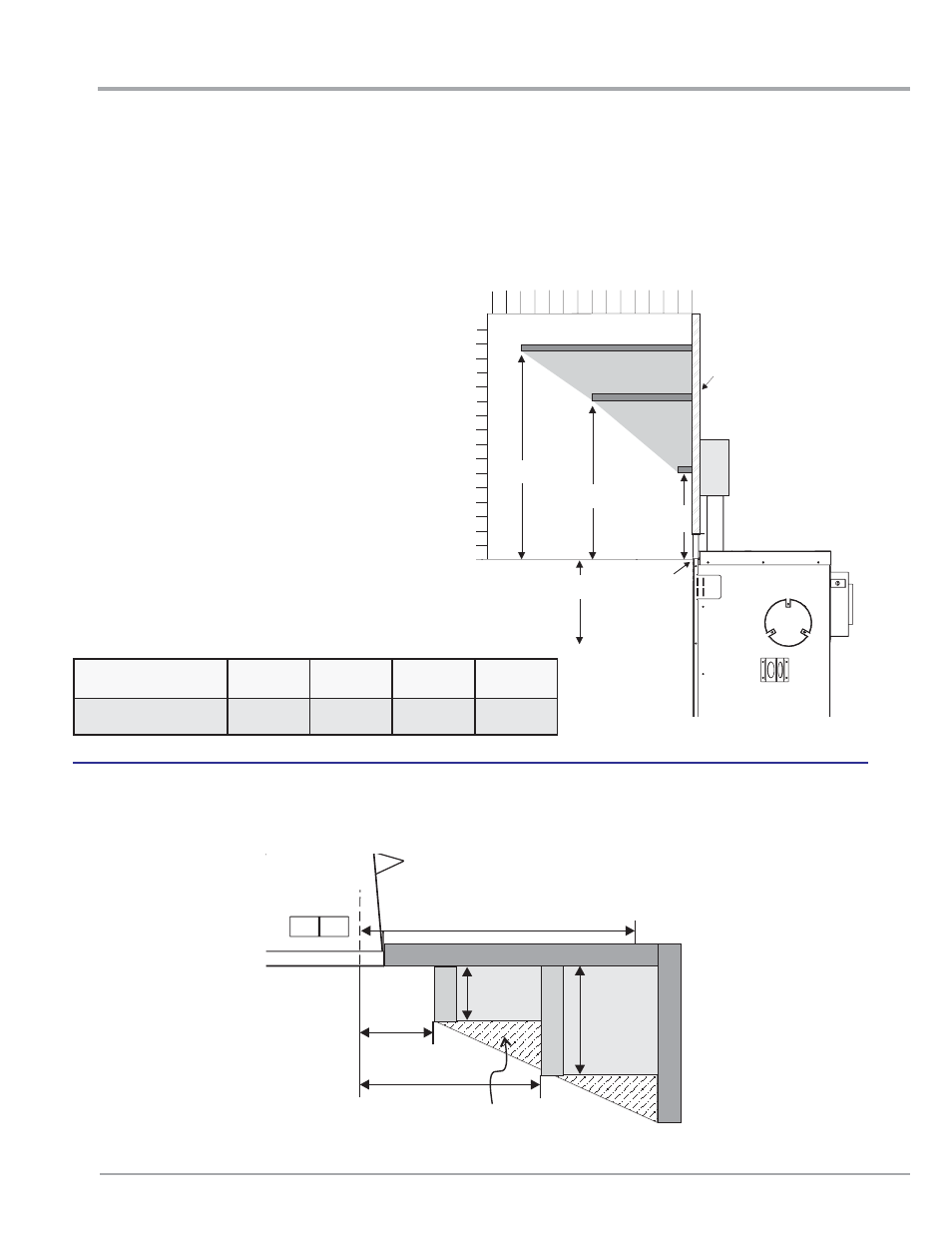

MANTEL CLEARANCES
Note: Ensure the paint that is used on the mantel
and the facing is "heat resistant" or the
paint may discolour.
Combustible
Mantel Clearances
2
0
12 6 4 8 10
0
Top of
Fireplace
Opening
12”
1"
7”
A
B
C
Top Header
14
To Floor
6
12
Inches
D
Side View
Standoff
Due to the extreme heat this fi replace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing
are shown in the diagram on the right.
Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-
combustible board.
Mantel Clearances
B36X A B C D
From Top of Fireplace
Opening 32"
(813mm)
14-1/2"
(368mm)
11"
(279mm)
6-1/2"
(165mm)
MANTEL LEG CLEARANCES
12” Side Wall
(Measured from side of
Fireplace Opening)
5"
2"
Mantel
leg
Mantel
leg
Allowable mantel leg
projection.
3"
1-1/2"
Top View
